SANWA SUPPLY

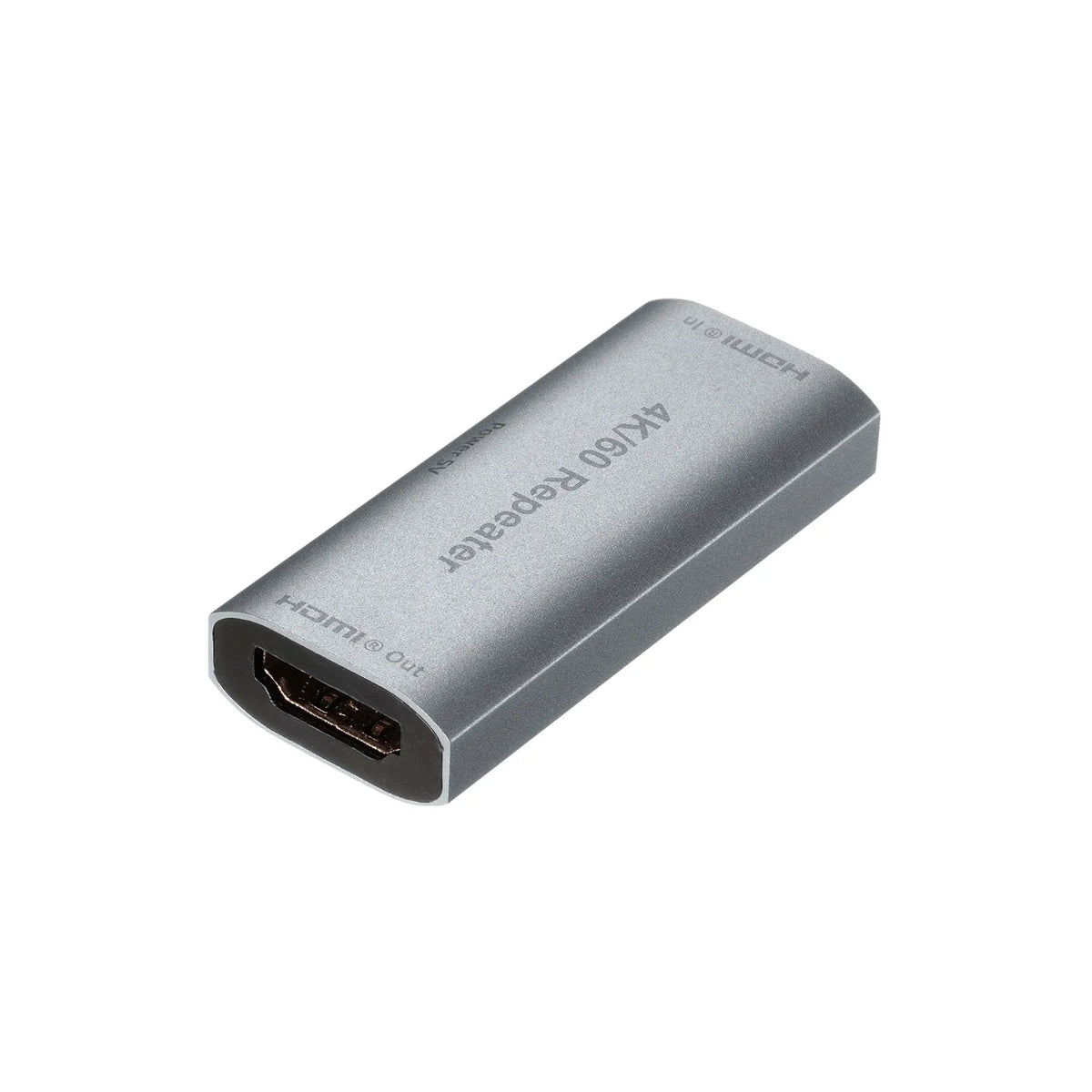

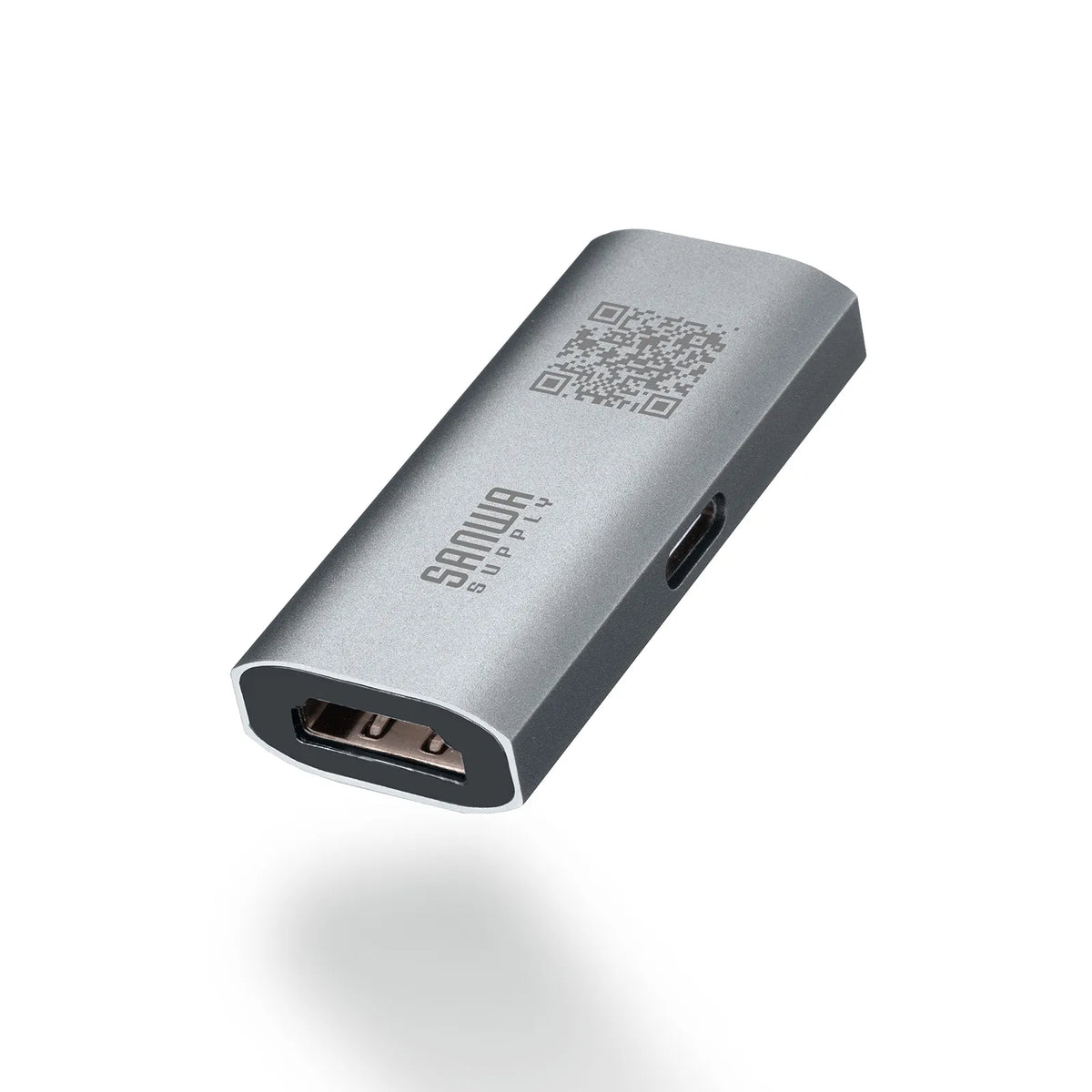

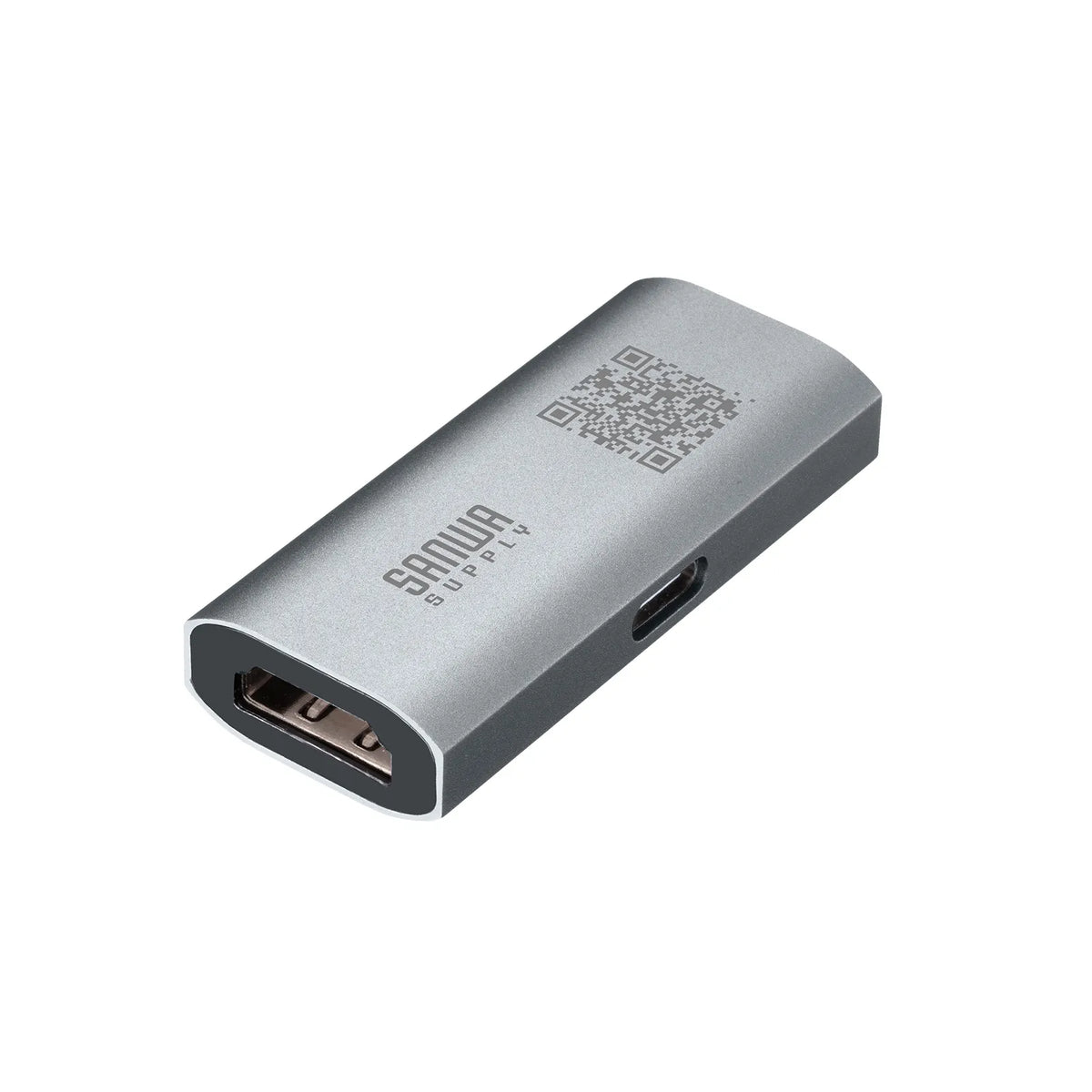

HDMI Extension Repeater Adapter (AD-HDR40)
HDMI Extension Repeater Adapter (AD-HDR40)
GTIN(JAN):4969887774335
SKU:AD-HDR40
Regular price
¥4,719 JPY
Regular price
Sale price
¥4,719 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

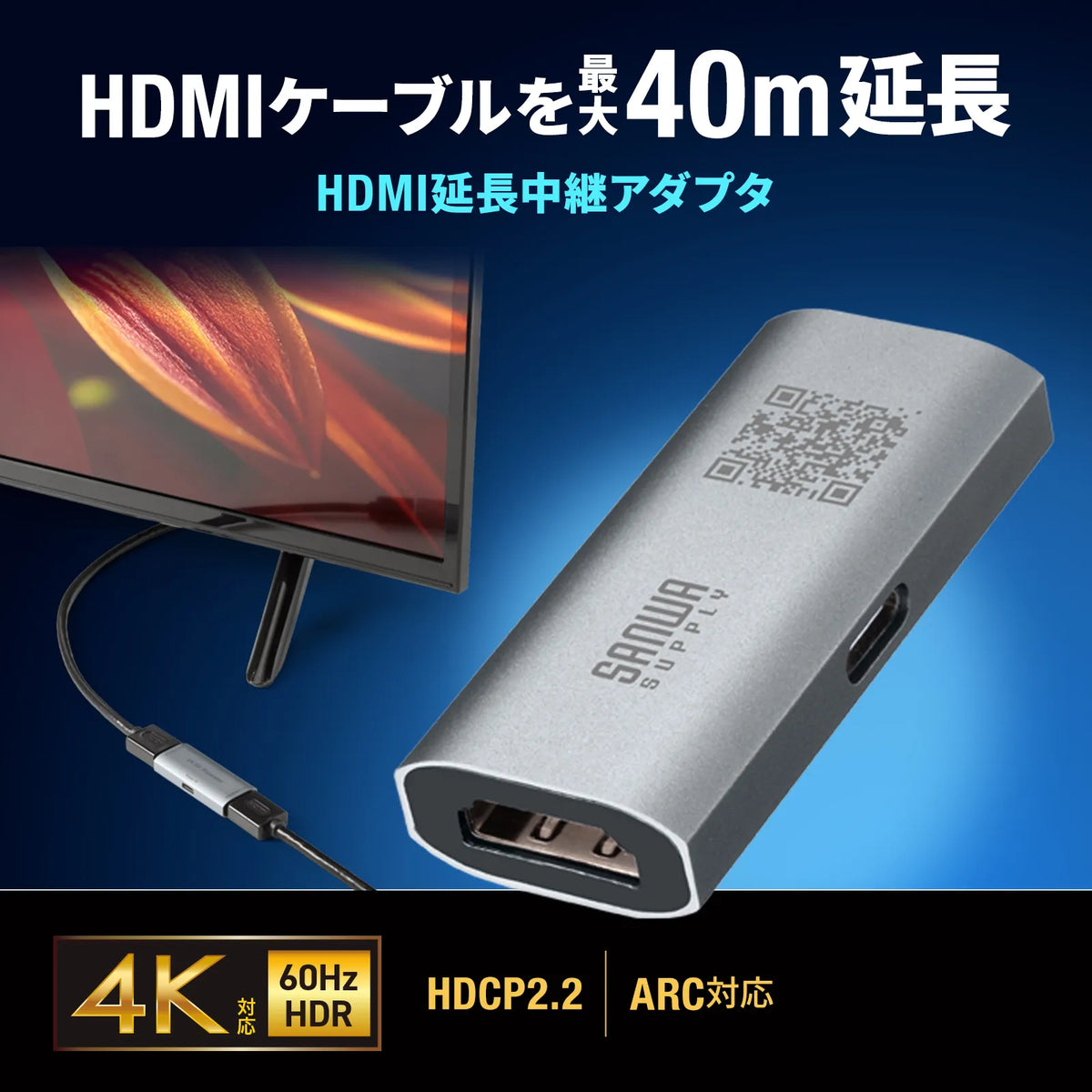

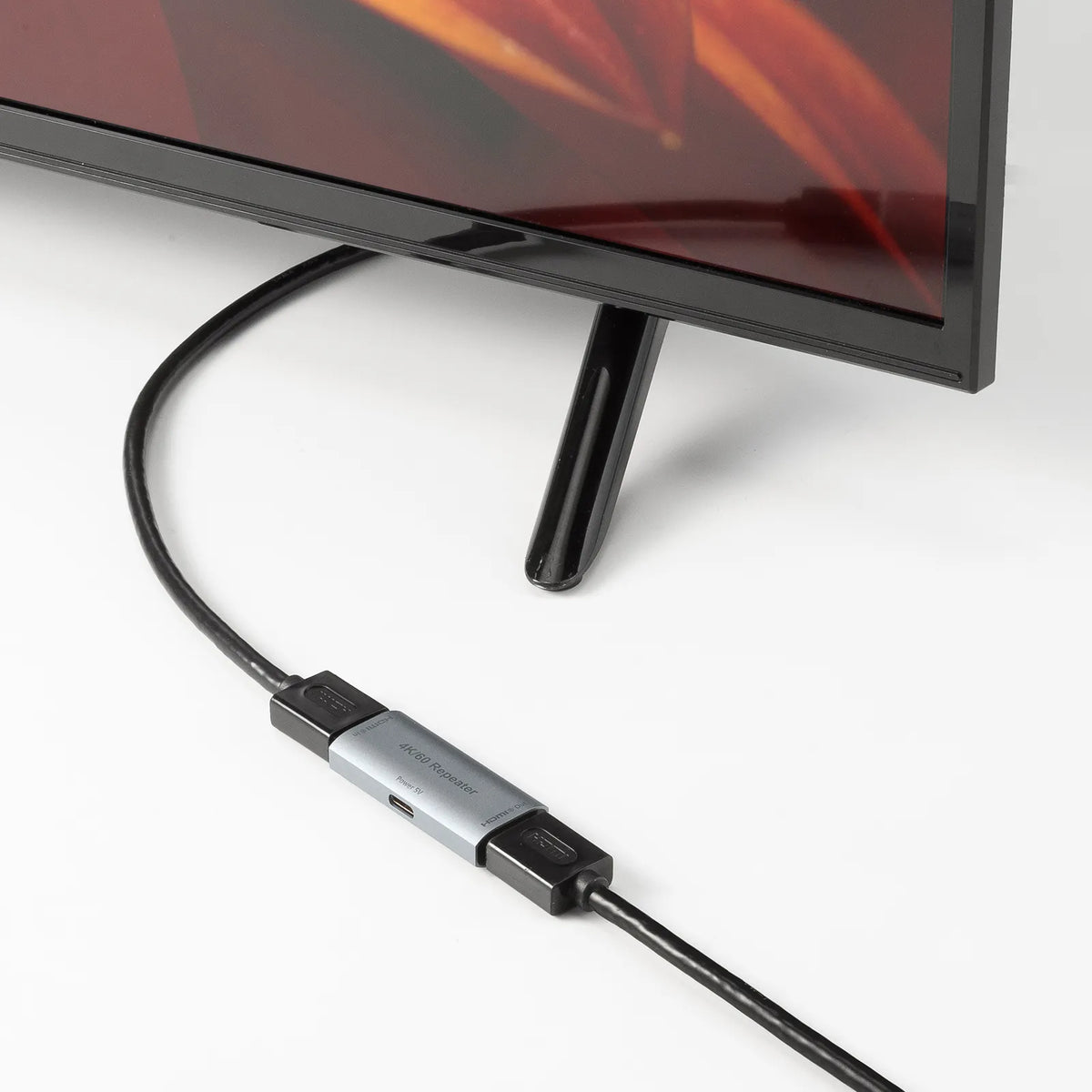

[A compact HDMI extension adapter that can relay and extend HDMI cables up to 40m]

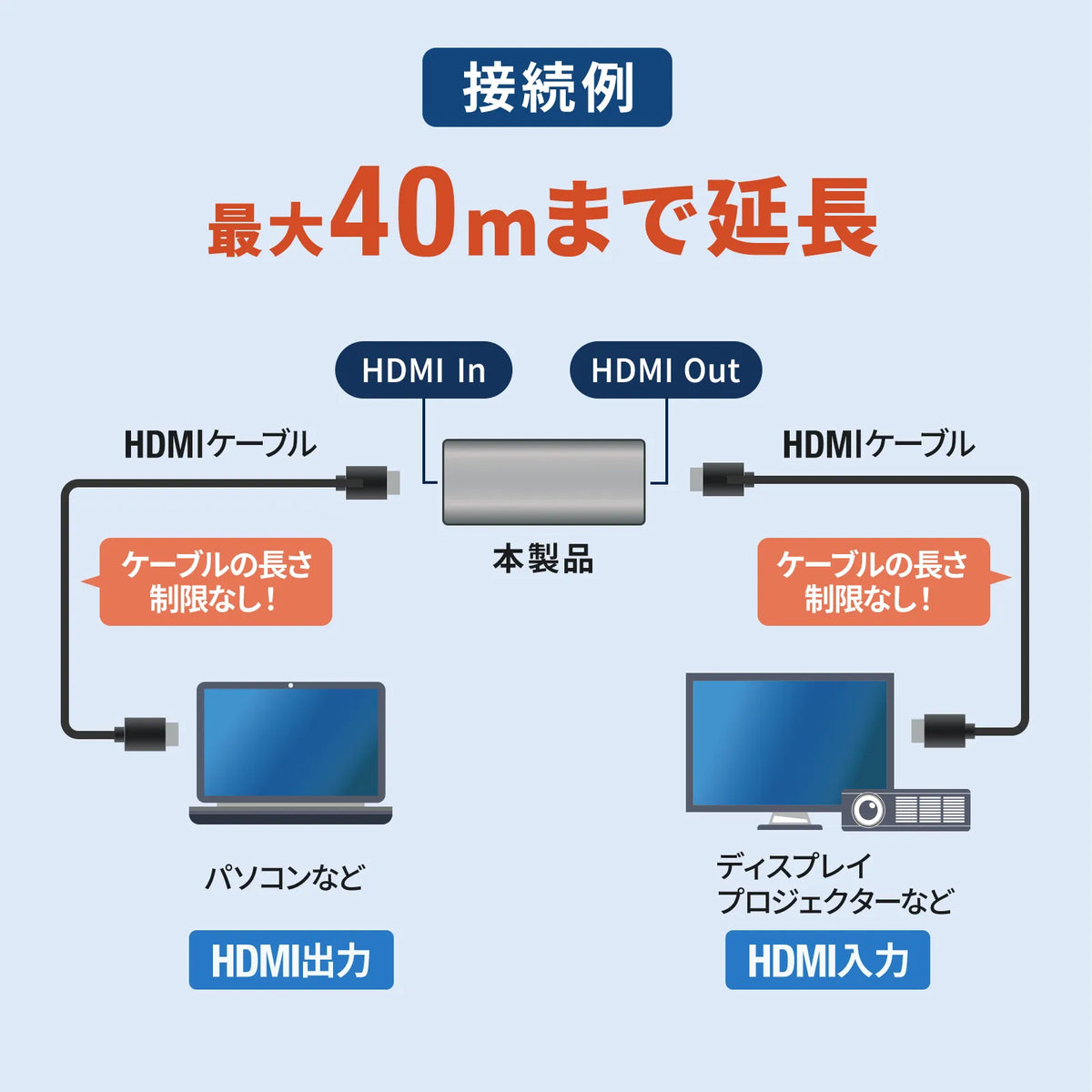

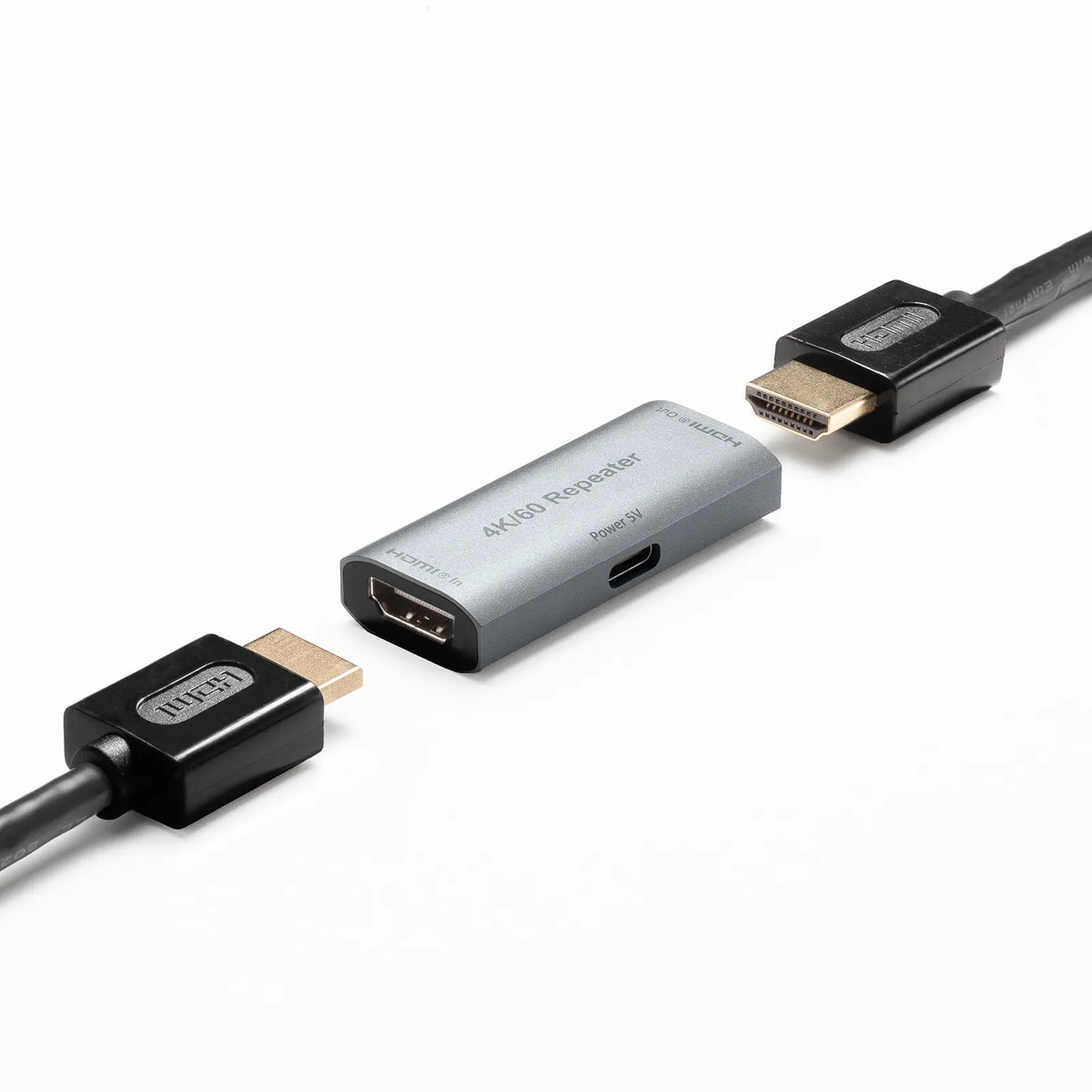

●Connects two HDMI cables and can extend them up to 40m.
●Operates on power supplied from the HDMI terminal of the connected device, so there is no need to consider wiring.

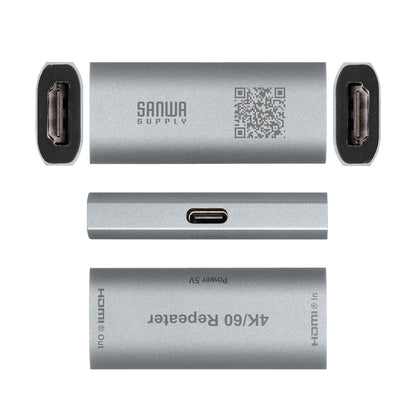

*If power is insufficient, please supply power from an AC adapter. (Cable and adapter sold separately) *Output is not possible with anything other than USB C power supply (5V1A) 5V1A. *Recommended adapter ACA-IP49BKN
●Supports 4K60Hz.
●No software or drivers are required, so you can use it right away.
【Common Specifications】

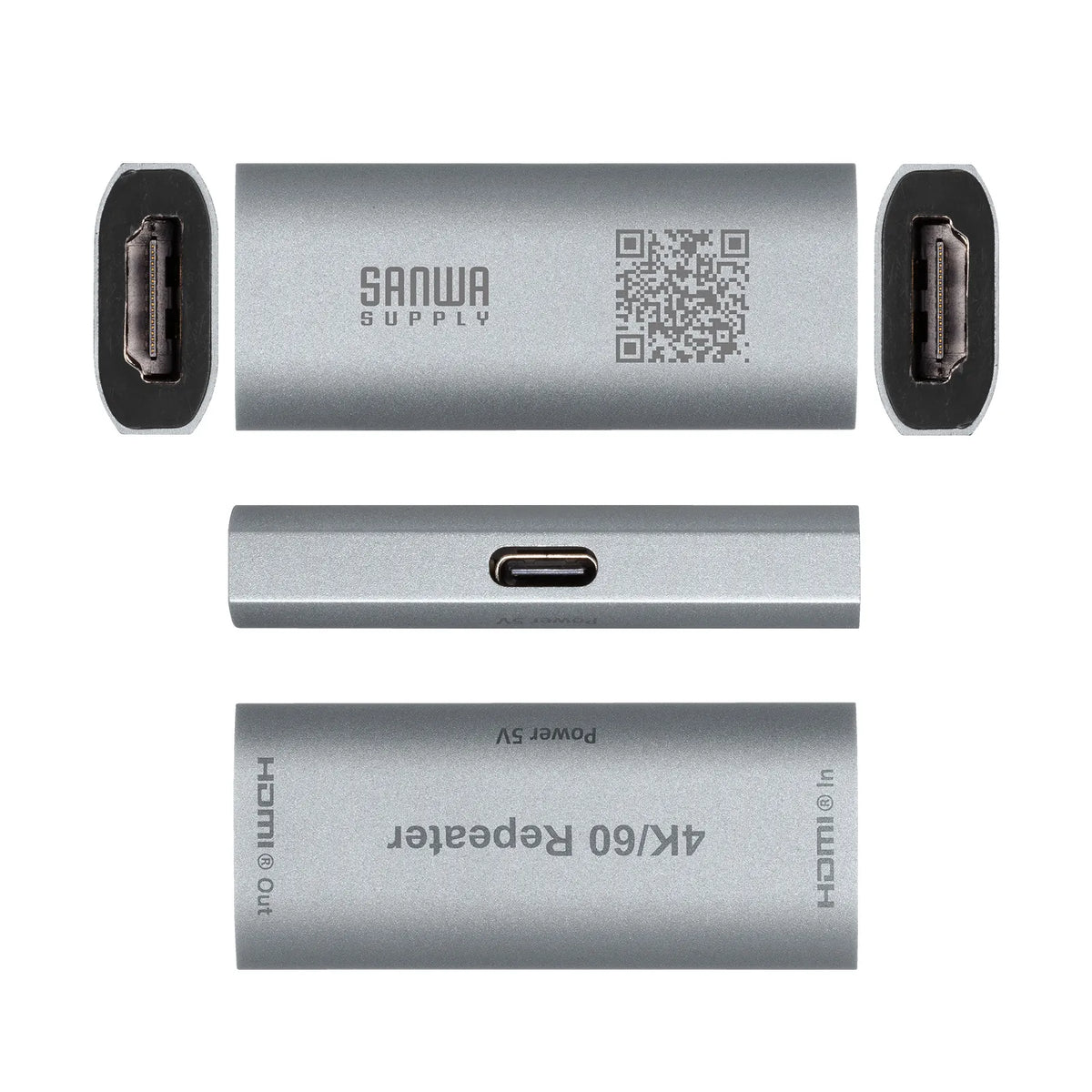

■Connector Shape: HDMI: Type A (Female) - Type A (Female)
■Connector Type: HDMI-HDMI
■Adapter Type: HDMI

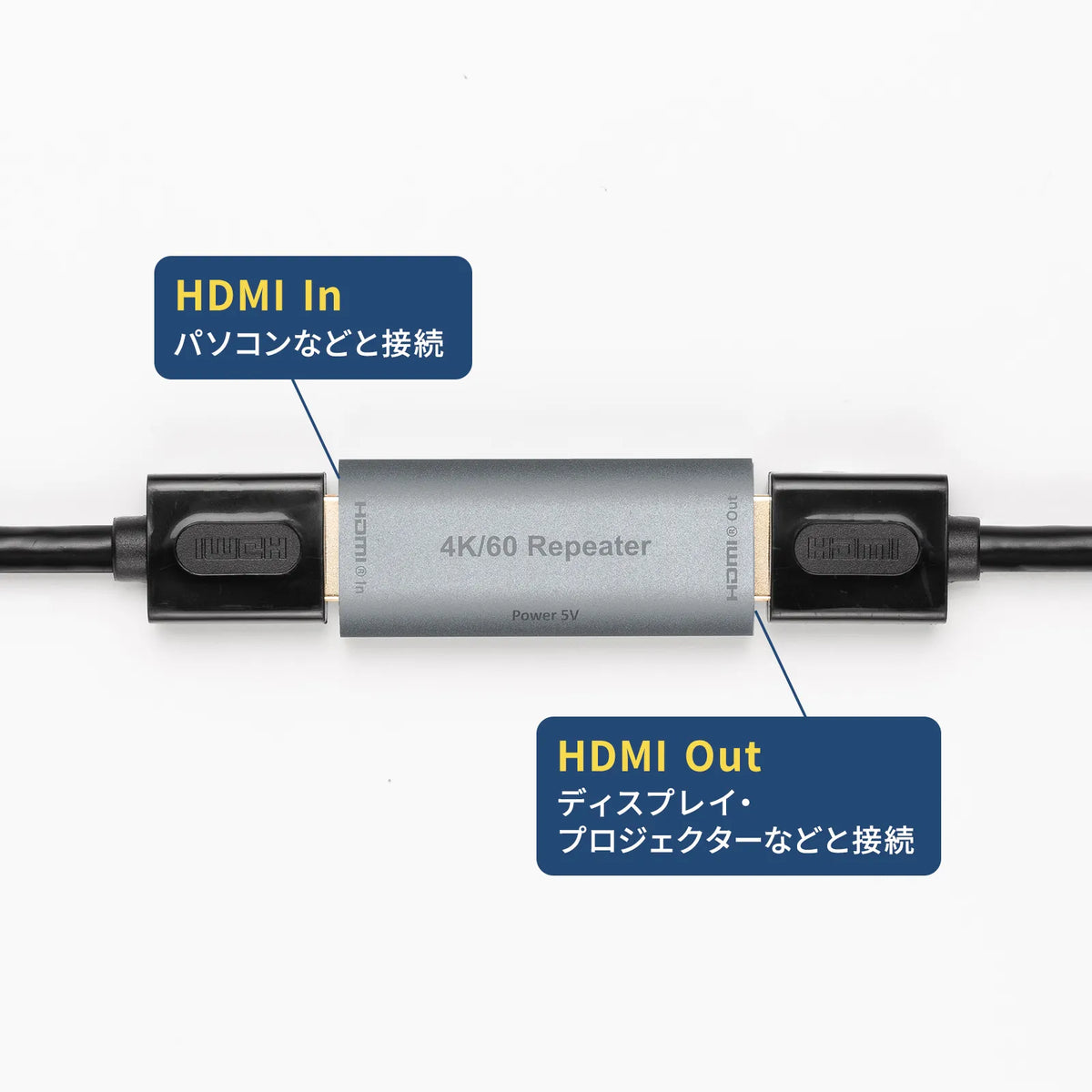

【Video Input Port】

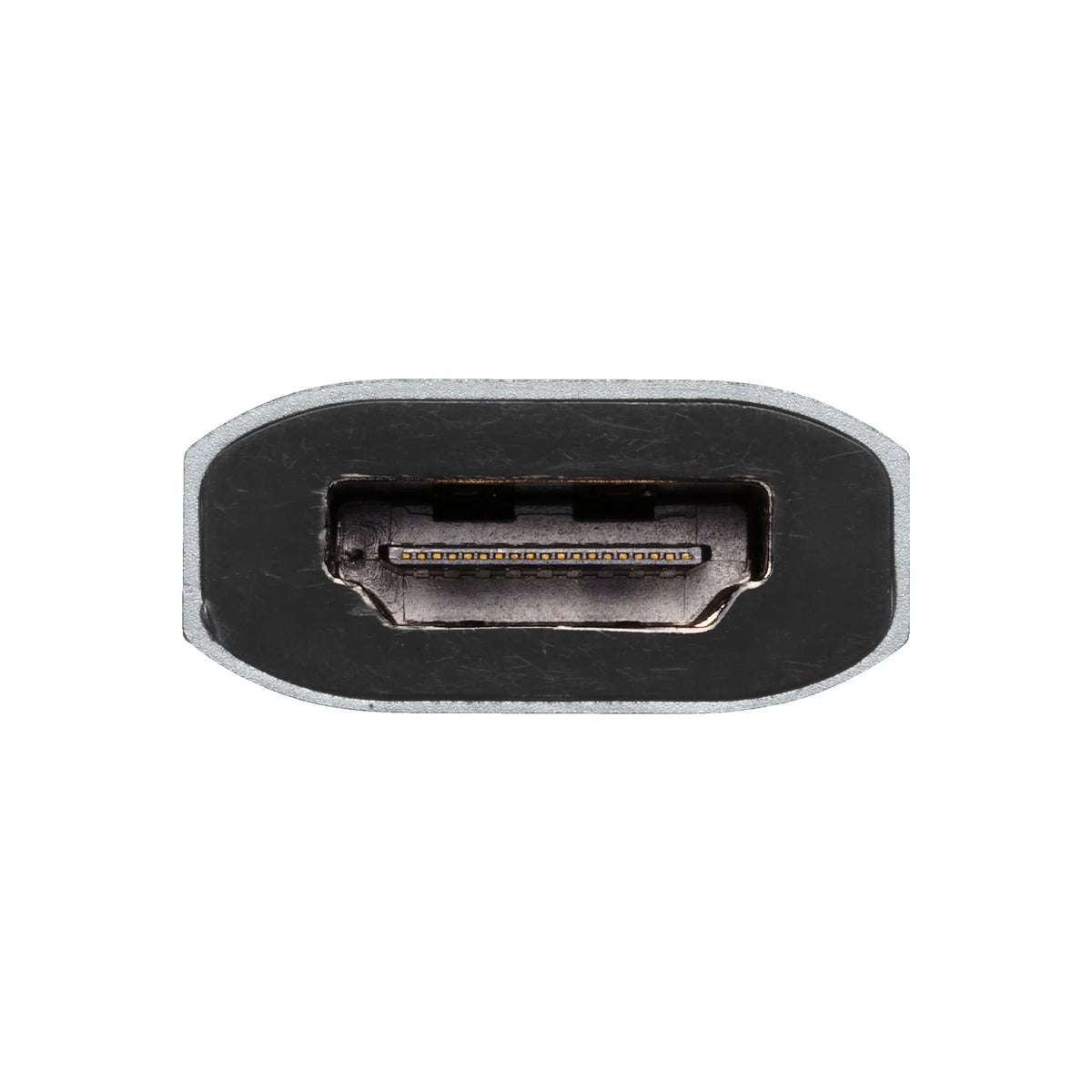

■Port Shape: HDMI Type A (19pin) Female
【Video Output Port】
■Port Shape: HDMI Type A (19pin) Female
■Maximum Supported Resolution: 4K/60Hz
【】
■PC (Output) Side: HDMI
■Display (Display) Side: HDMI
■Resolution (for MD): 4K
【Other Specifications】
■Transmission Bandwidth: 18G
■HDR: Supported
■ARC: Supported
■HEC: Supported
■HDCP: 2.2 Supported
