SANWA SUPPLY

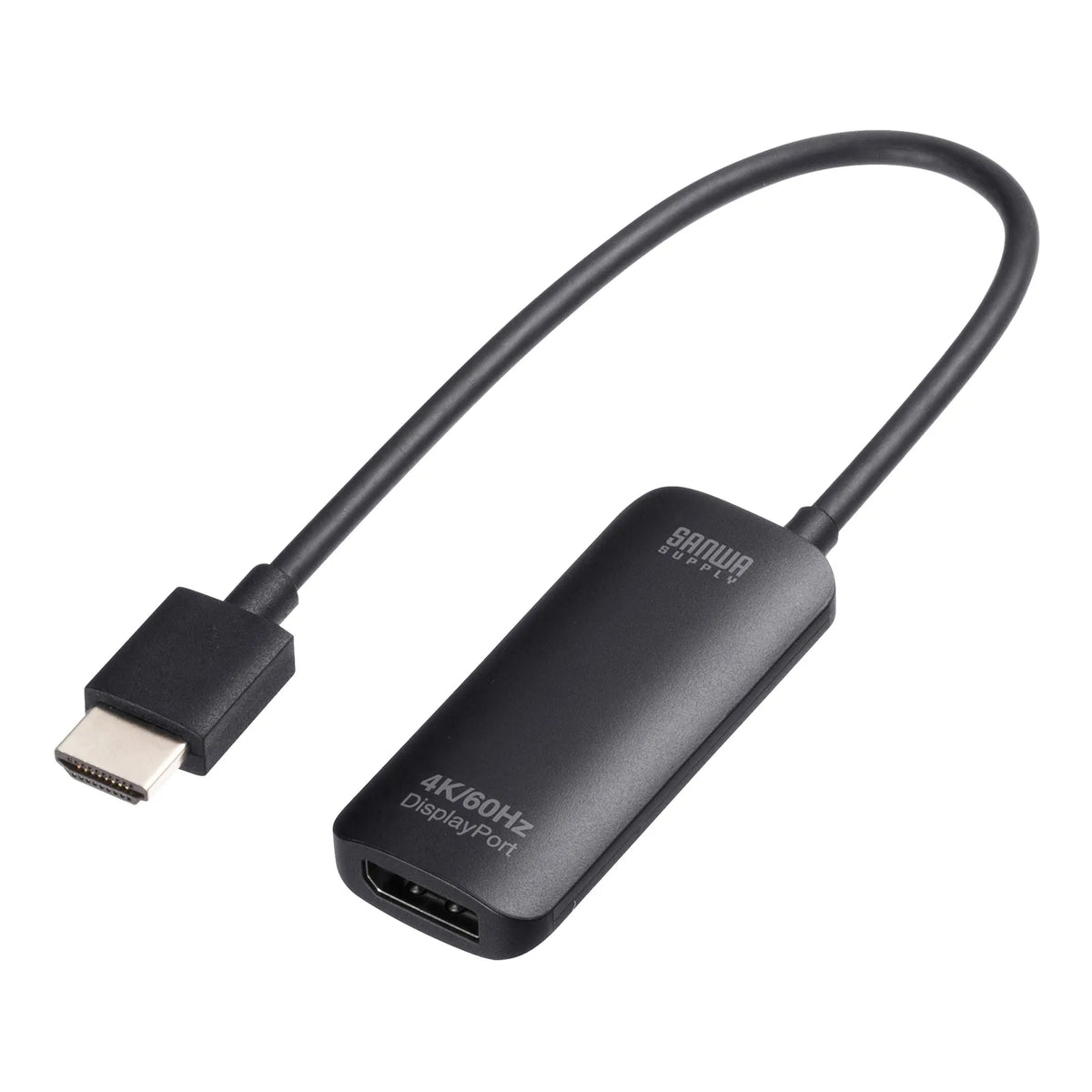

HDMI-to-DisplayPort conversion adapter (4K/60Hz) AD-HD31DP
HDMI-to-DisplayPort conversion adapter (4K/60Hz) AD-HD31DP
GTIN(JAN):4969887770160
SKU:AD-HD31DP
Regular price
¥4,501 JPY
Regular price
Sale price
¥4,501 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[HDMI-to-DisplayPort conversion adapter that converts HDMI signals to DisplayPort signals and outputs them to displays with DisplayPort inputs. Supports up to 4K/60Hz.]

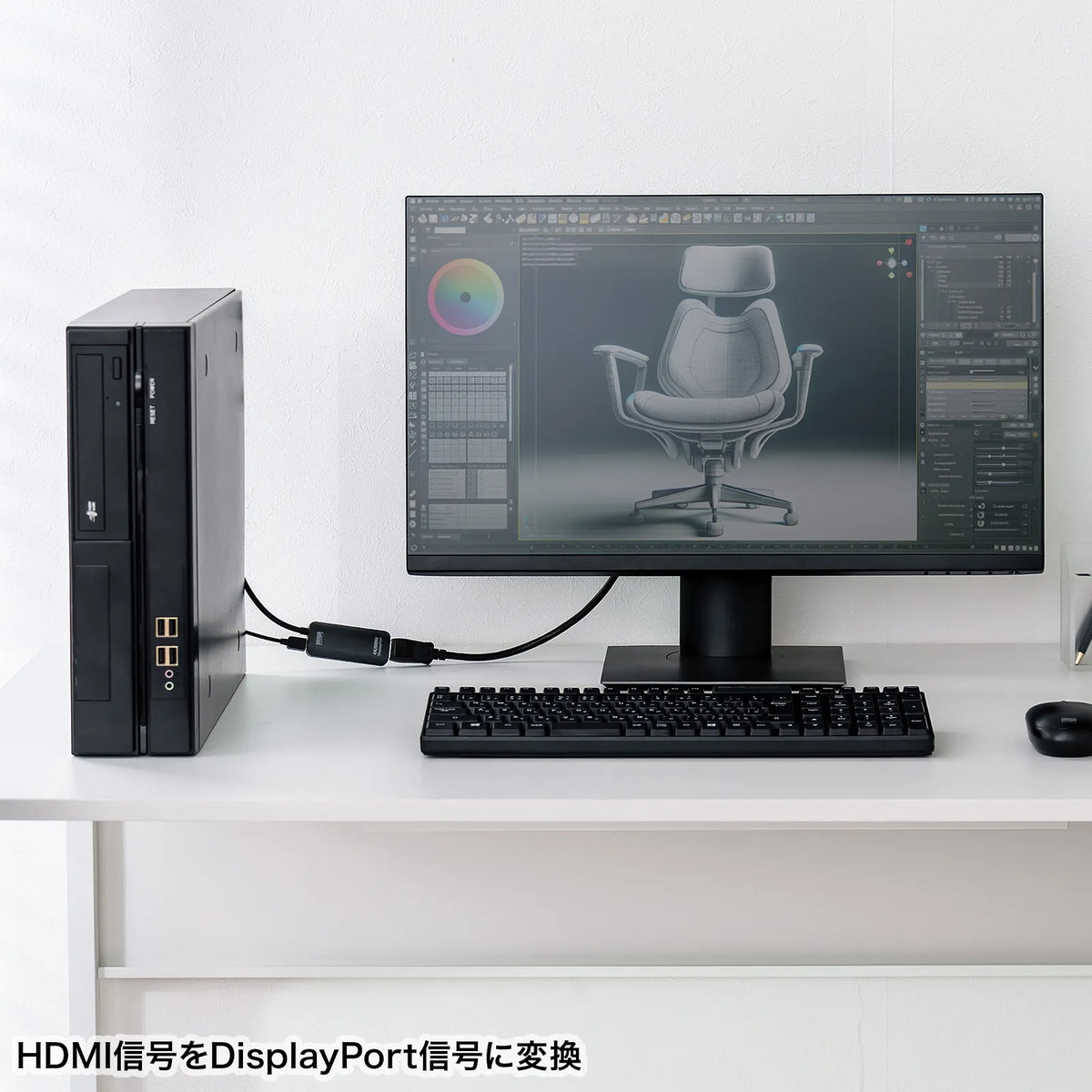

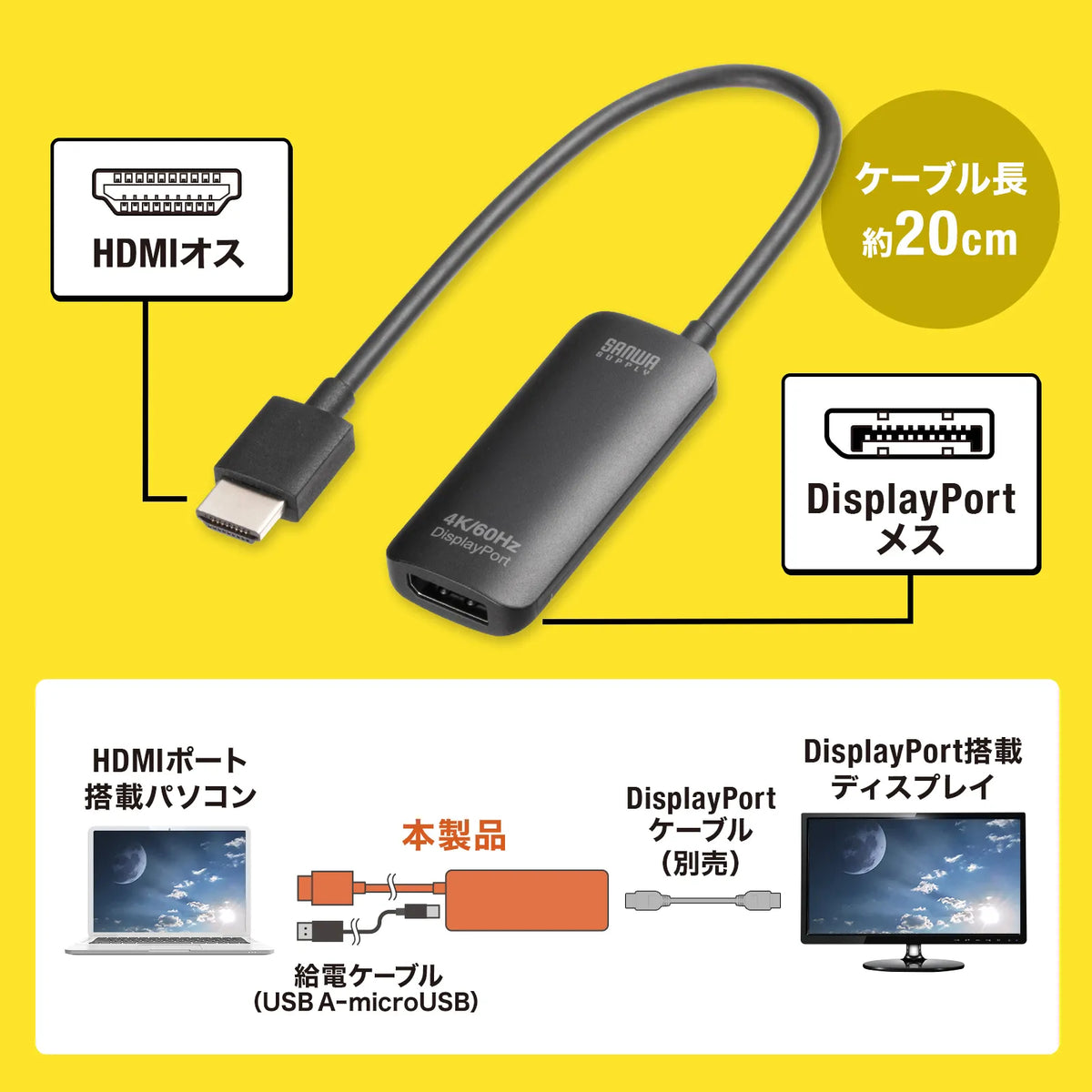

●Converts HDMI signals to DisplayPort signals and outputs video to displays with DisplayPort inputs.

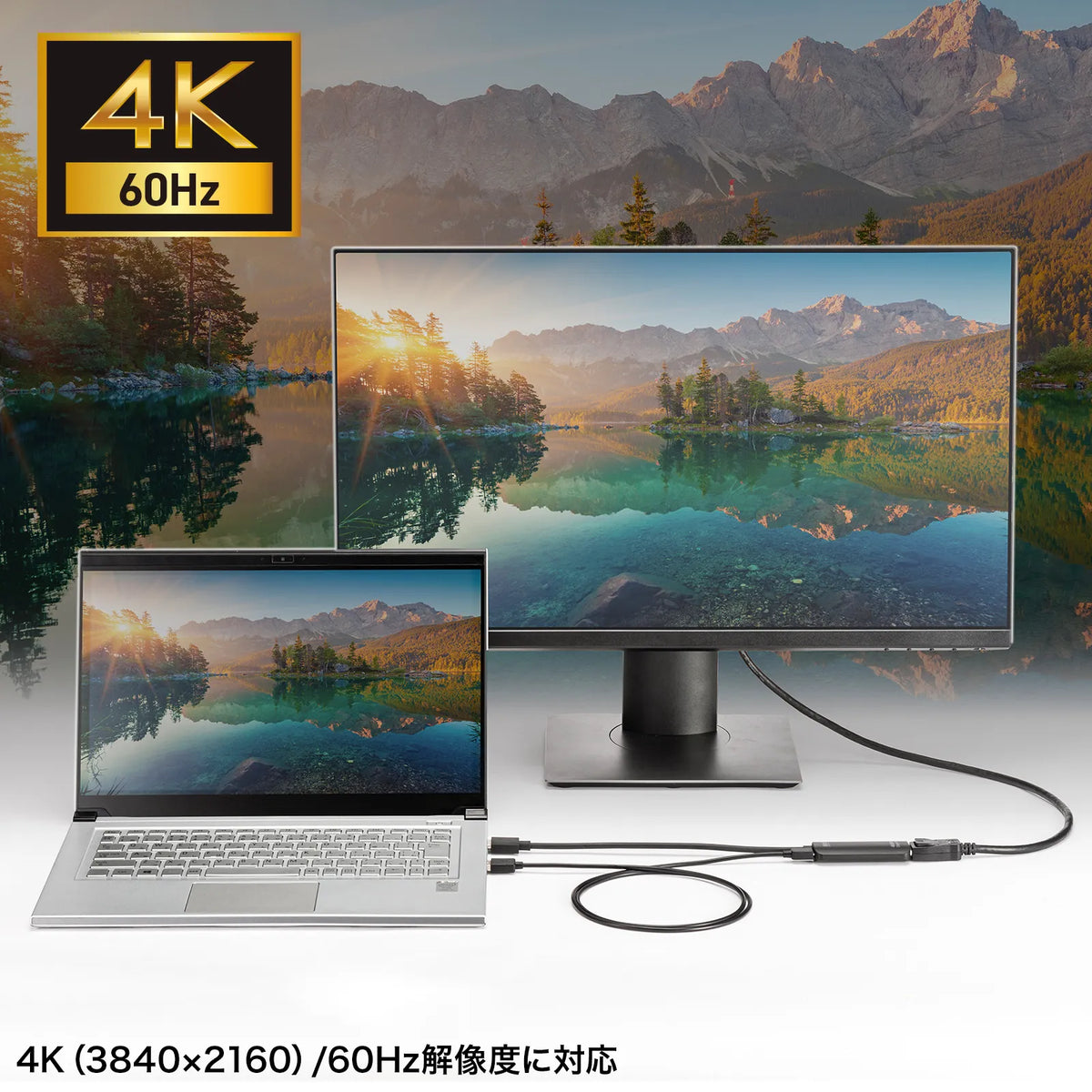

●Supports 4K (3840x2160)/60Hz resolution, allowing you to convert beautiful, high-definition HDMI signals to DisplayPort signals.
●High-quality HDMI video signals and HDMI audio signals are converted to DisplayPort signals and output simultaneously.
*Power supply via the included USB A-microUSB cable is required to use this product. (USB port of 5V/500mA or higher)
*Operation is not guaranteed with all devices.
【Video Input Port】
■Port Shape: HDMI Type A (19pin) Male
【Video Output Port】
■Port Shape: DisplayPort Female
■Supported Resolution: Maximum display resolution: 3840x2160/60Hz
*The computer, projector or display, and connection cable must all support the same resolution.
■Maximum Supported Resolution: 4K/60Hz
【Common Specifications】

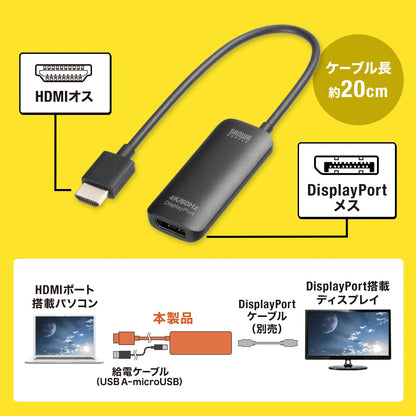

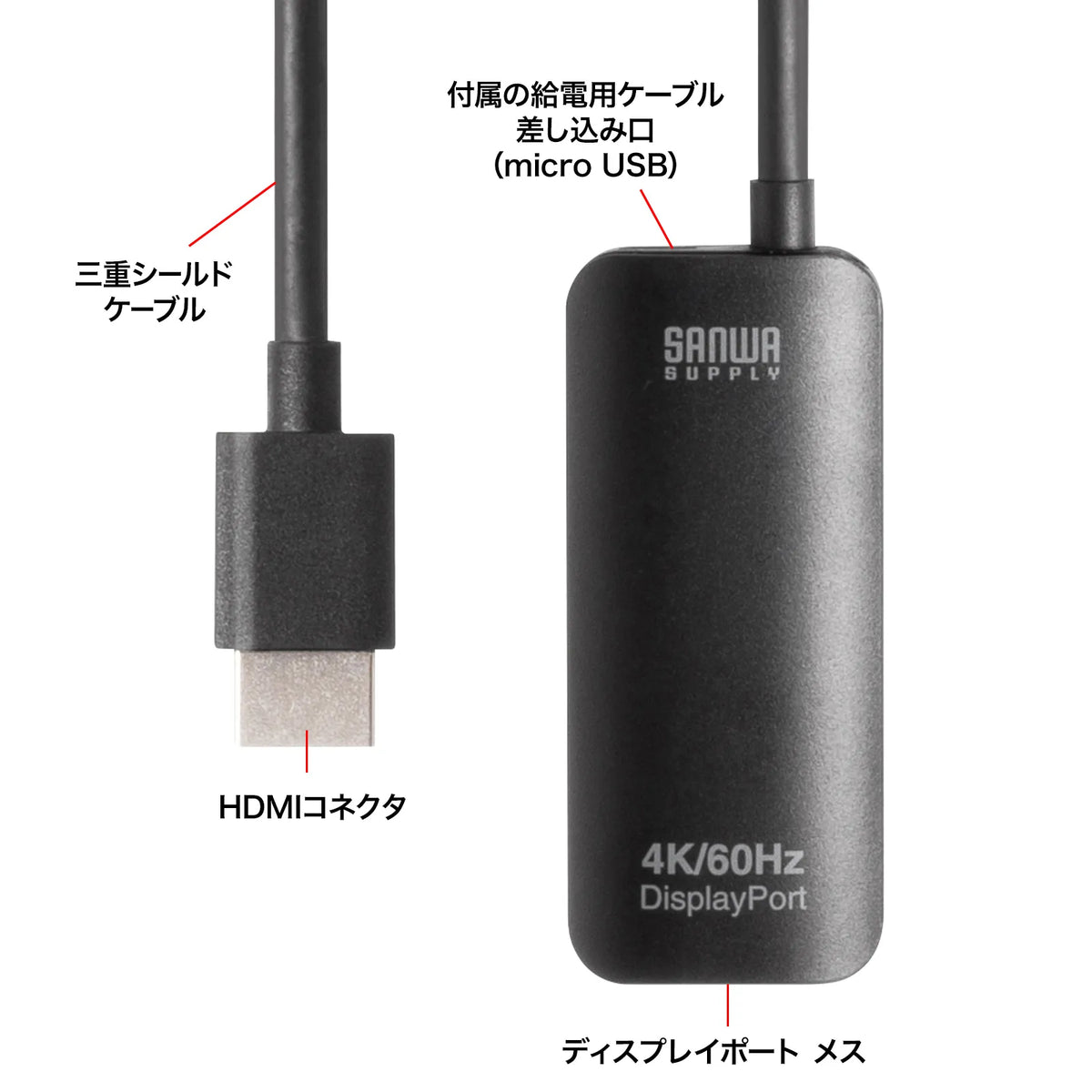

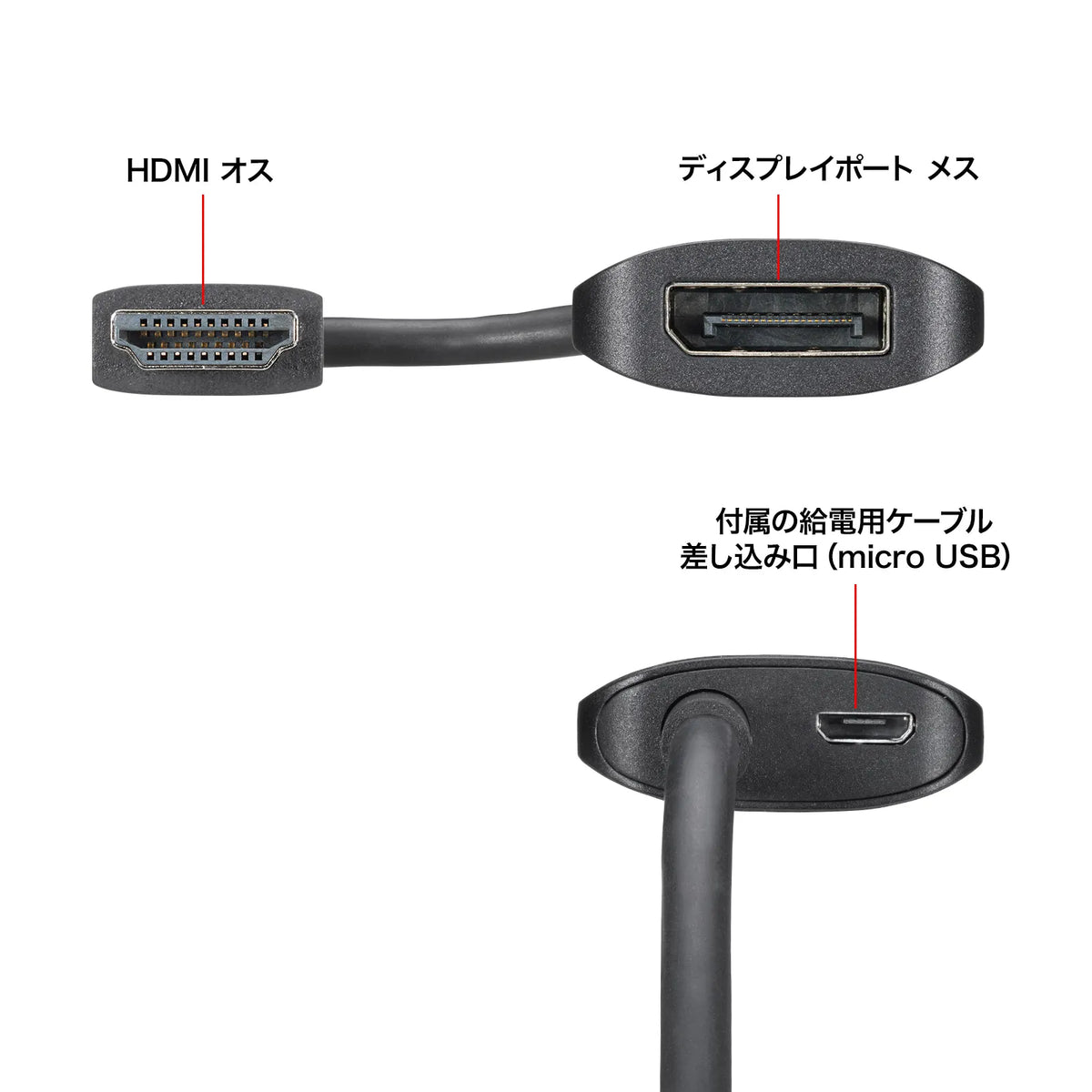

■Connector Shape: HDMI Male - DisplayPort Female
*microUSB Female (for power supply only)
■Compatible Models:
Computers from various manufacturers (models with HDMI output terminals)
*May not function properly depending on the environment and equipment.
*Operation is not guaranteed with all devices.
Compatible Output Devices
Displays equipped with a DisplayPort input terminal as standard, etc.
*It is not possible to convert the HDMI port on the display side to a DisplayPort connector.
■Current Consumption: Approx. 100mA

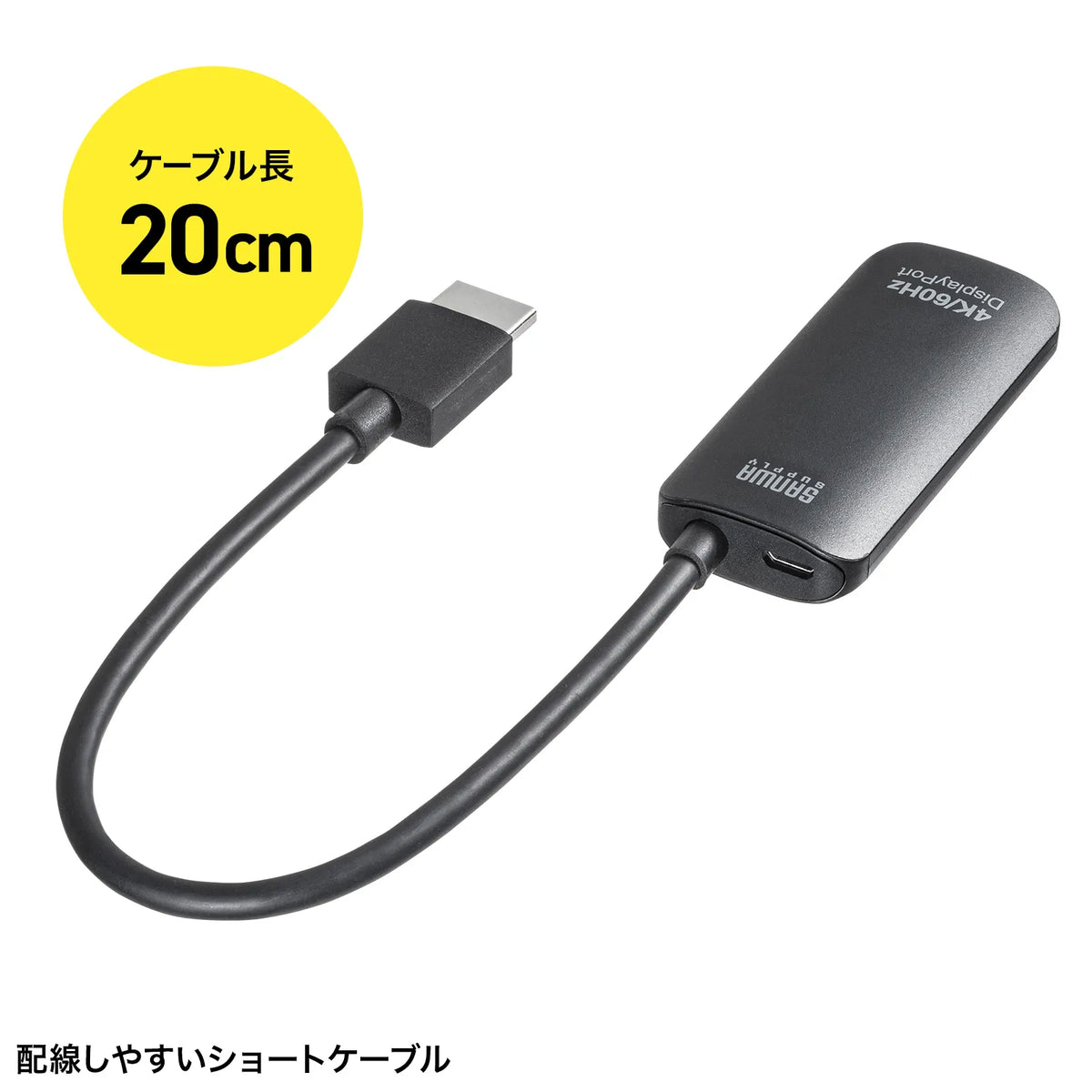

■Cable Length: Approx. 0.2m
■Cable Diameter: Approx. 4.8mm

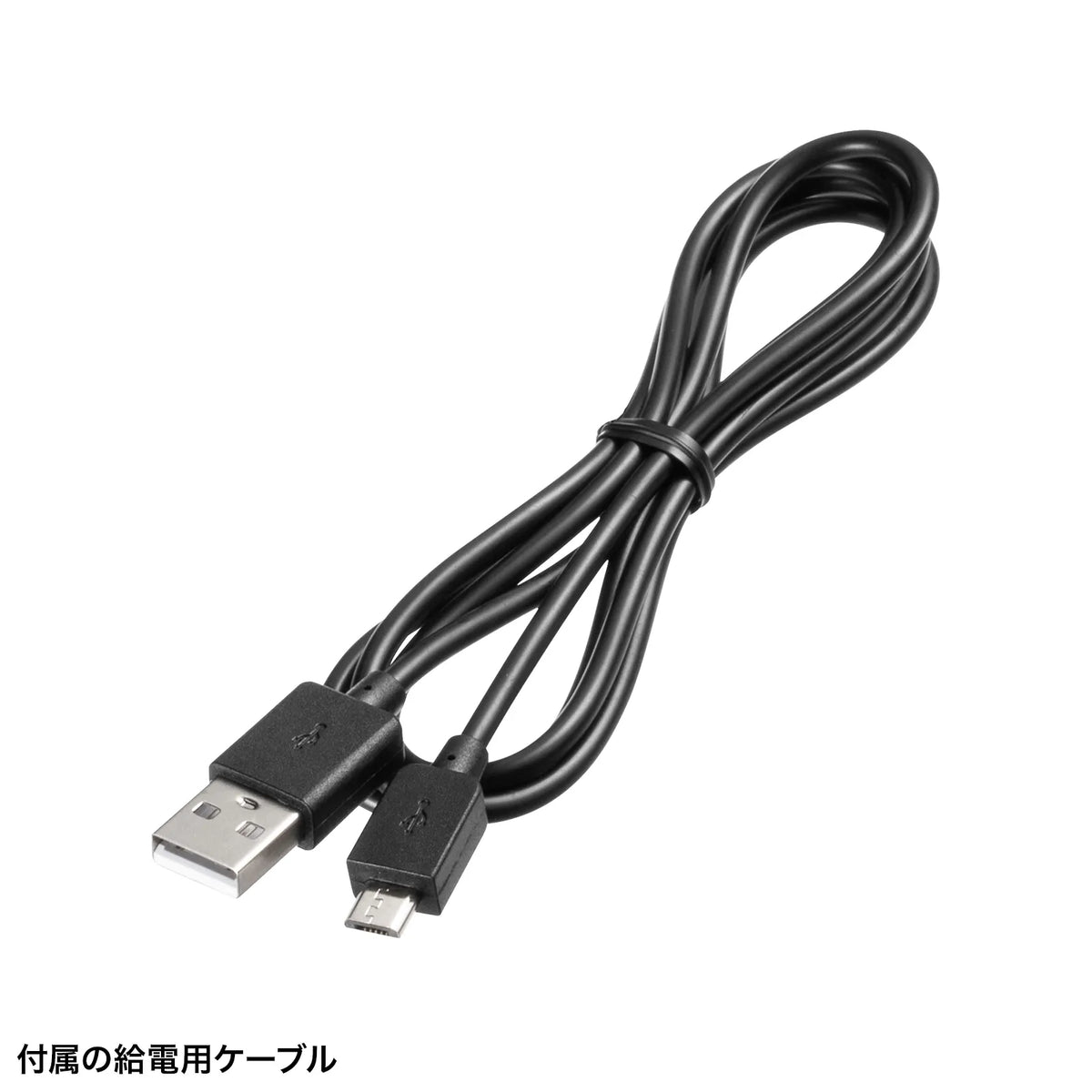

■Set Contents: USB A-microUSB power supply cable (1m)
【Other Specifications】
■HDMI Standard: HDMI2.0
■DisplayPort Standard: DP1.2
■HDCP: HDCP1.4, HDCP2.2

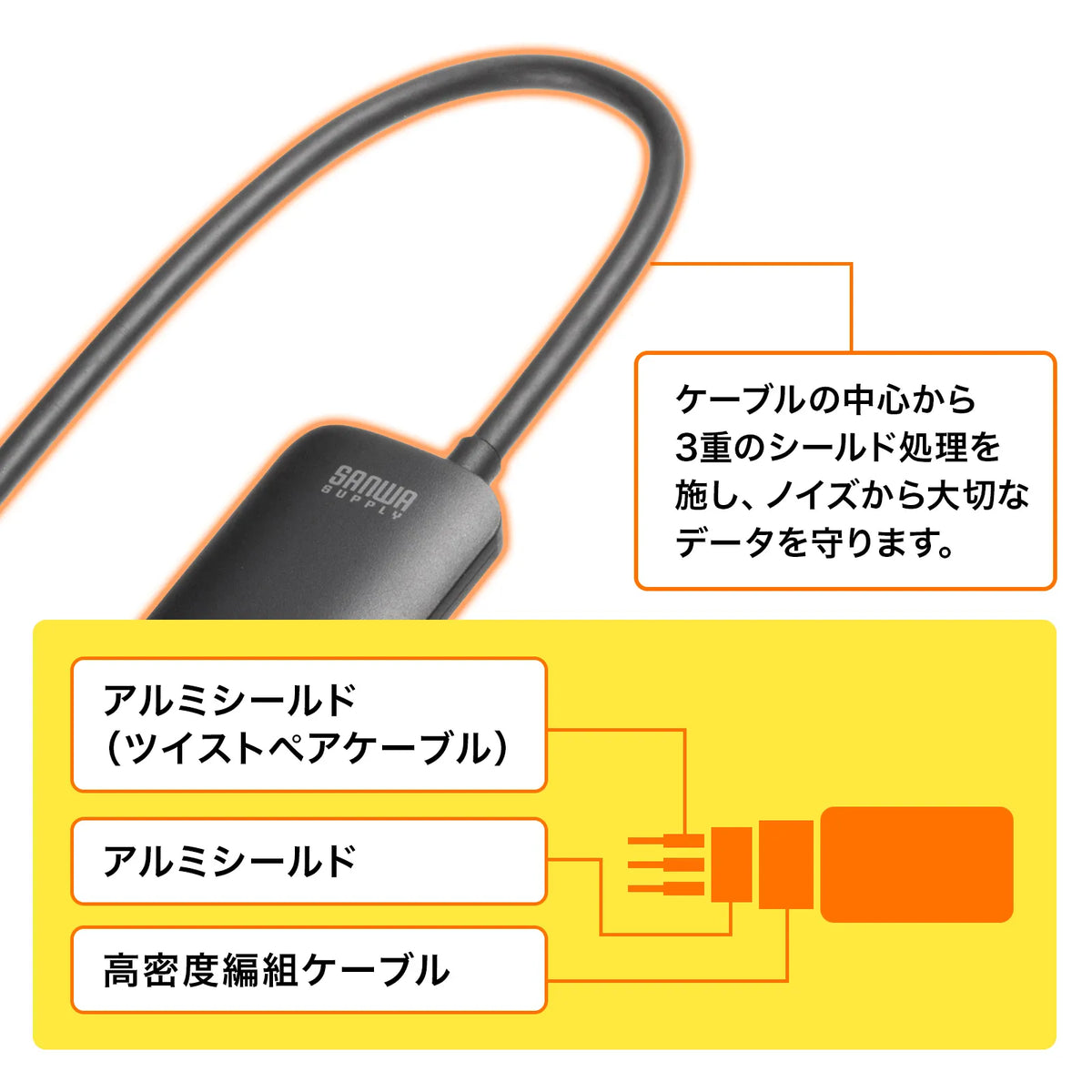

■Shielding Method: Triple shielding (cable section)
