SANWA SUPPLY

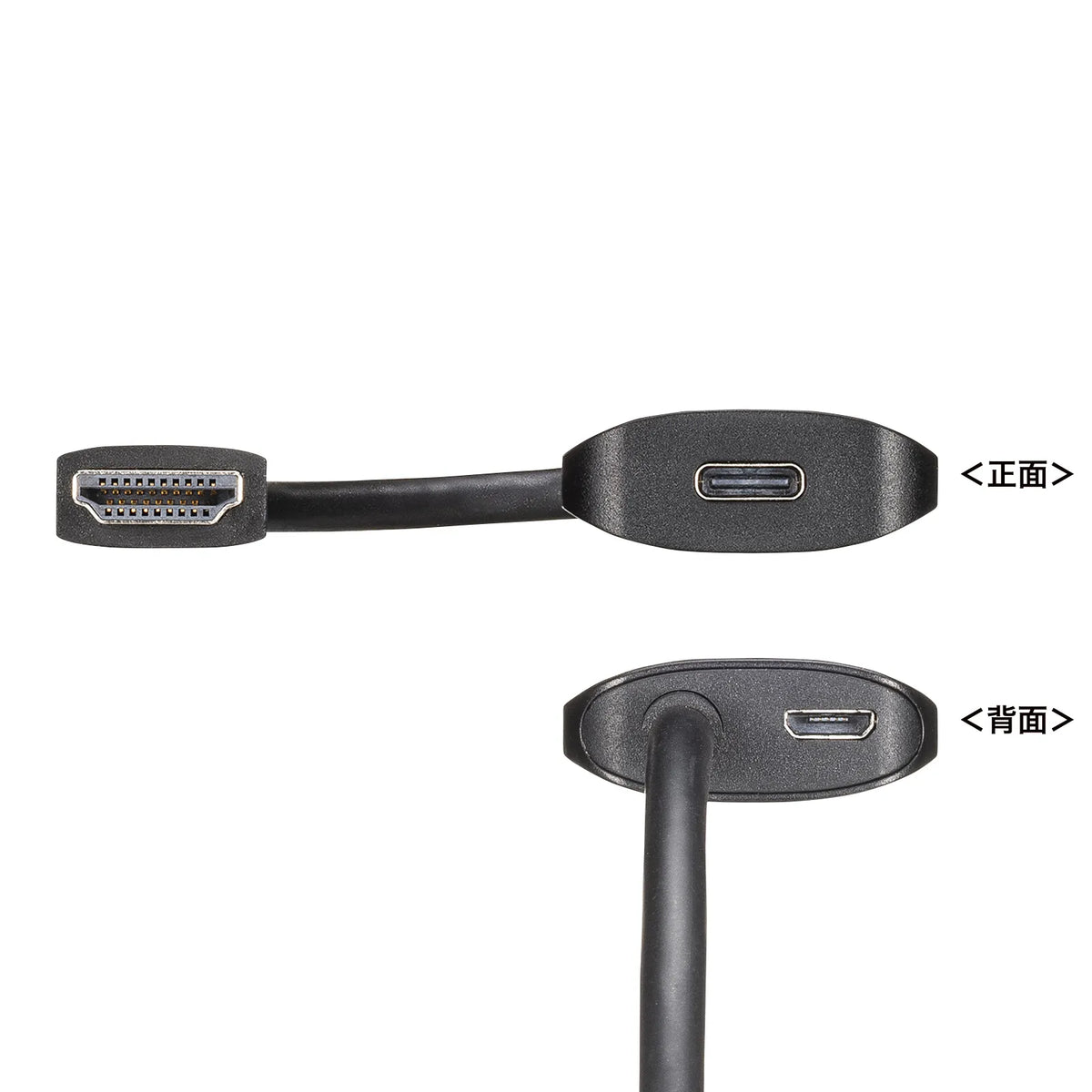

HDMI-Type-C (DP Alt Mode) Conversion Adapter (4K/60Hz) AD-HD26TC
HDMI-Type-C (DP Alt Mode) Conversion Adapter (4K/60Hz) AD-HD26TC
GTIN(JAN):4969887769201
SKU:AD-HD26TC
Regular price
¥4,501 JPY
Regular price
Sale price
¥4,501 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[An HDMI-to-USB Type-C conversion adapter that converts HDMI signals to USB Type-C (DisplayPort Alt Mode) output and can output to mobile displays and other devices with a Type-C input port.]

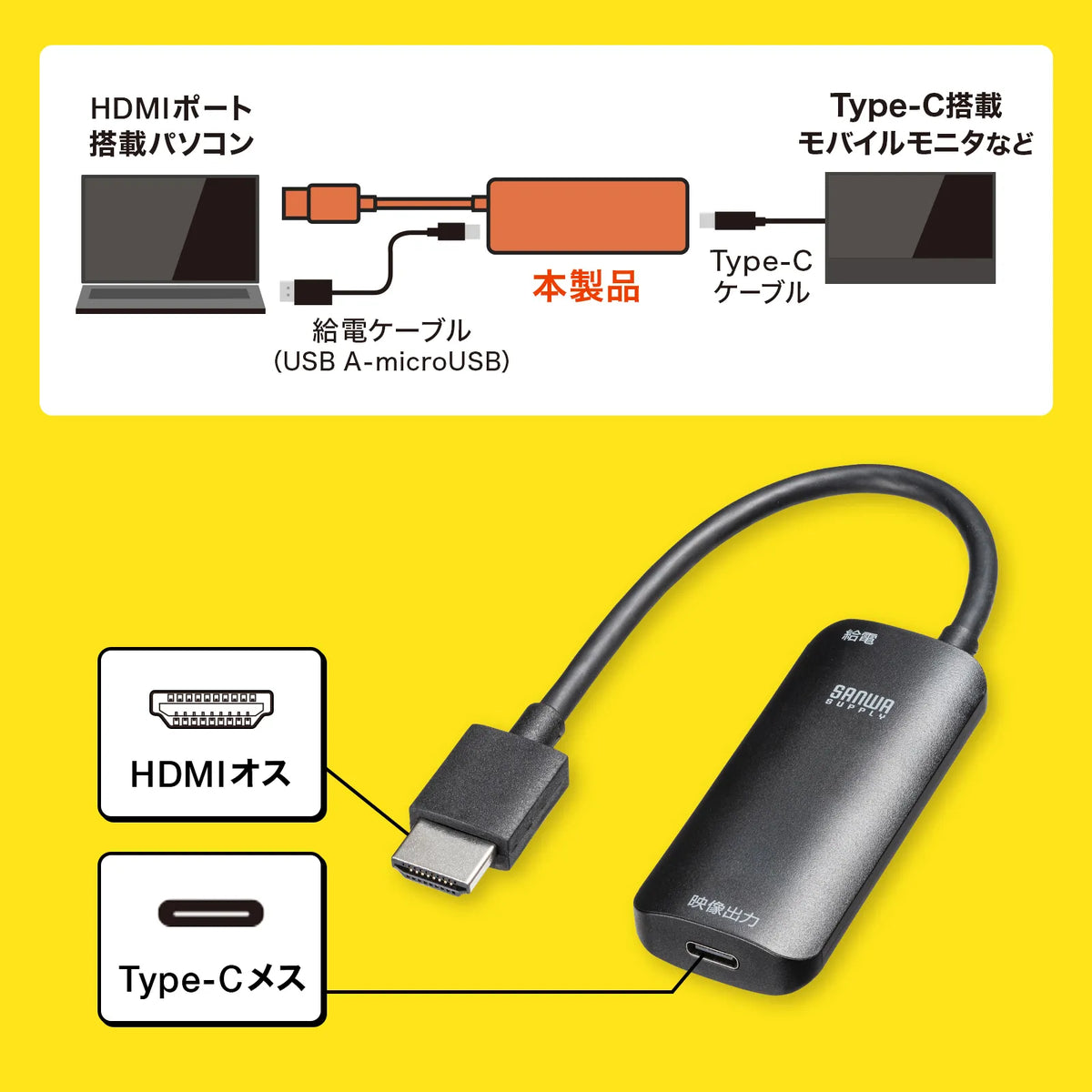

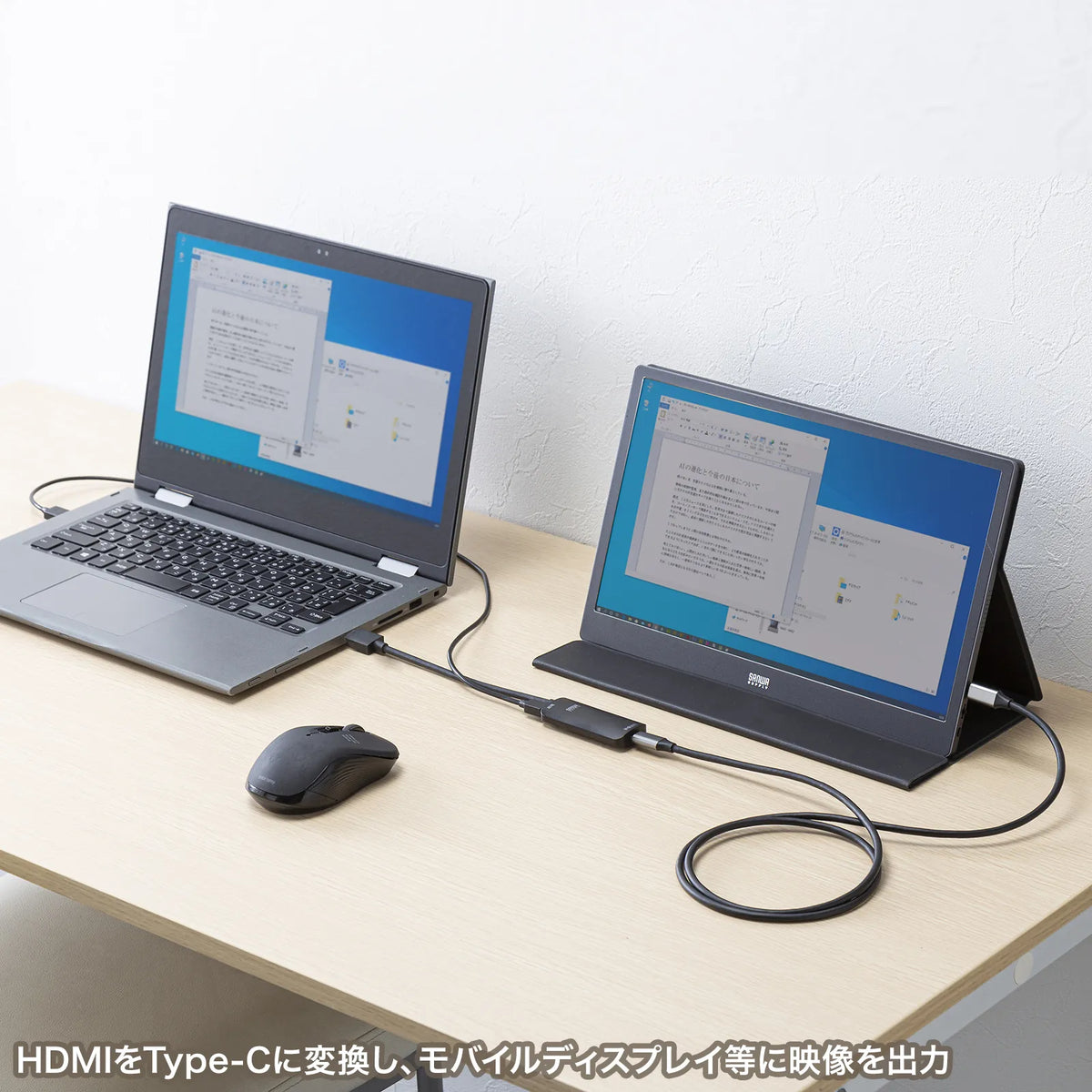

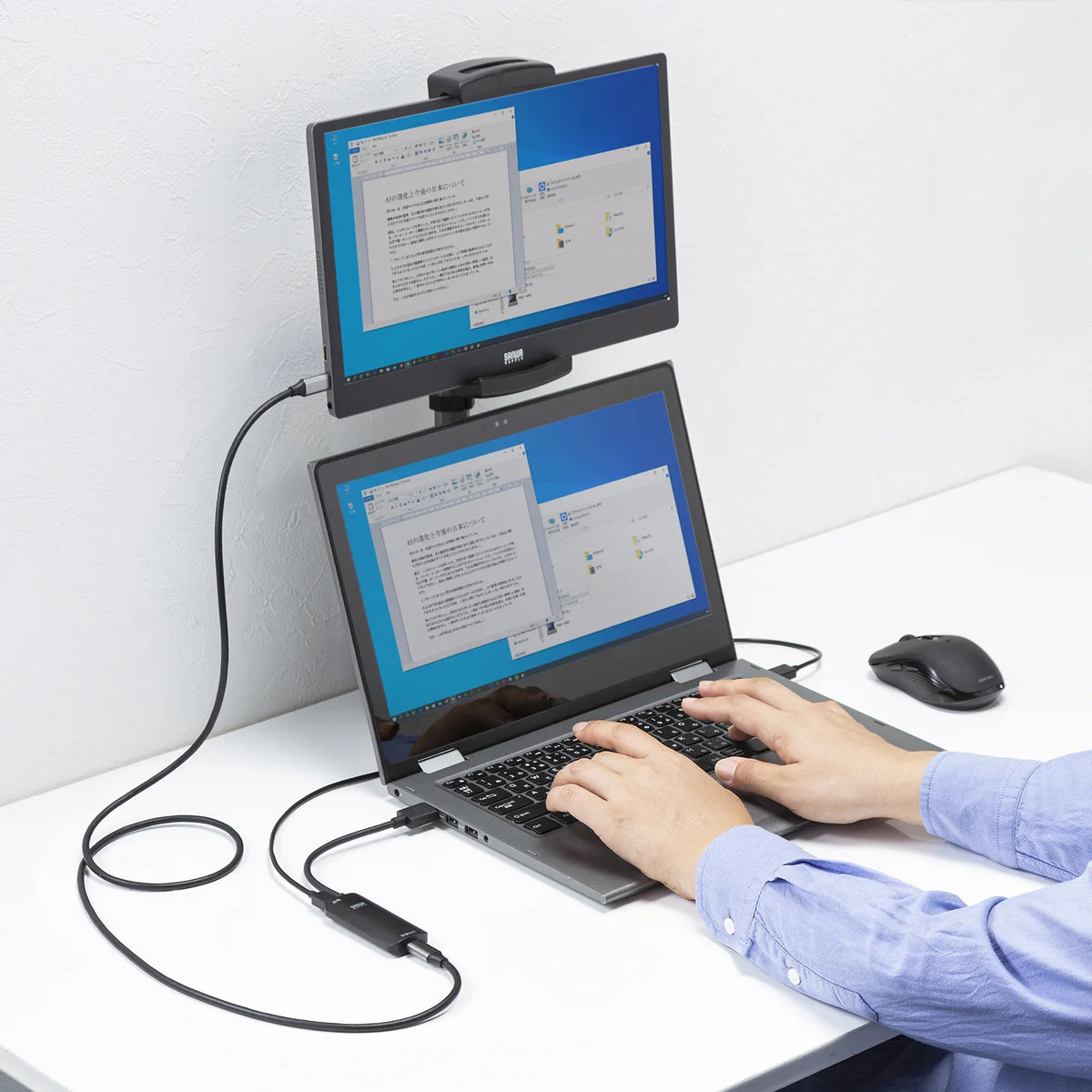

●Converts HDMI signals to USB Type-C DisplayPort Alt Mode and can output video to mobile displays and other devices equipped with a USB Type-C input.

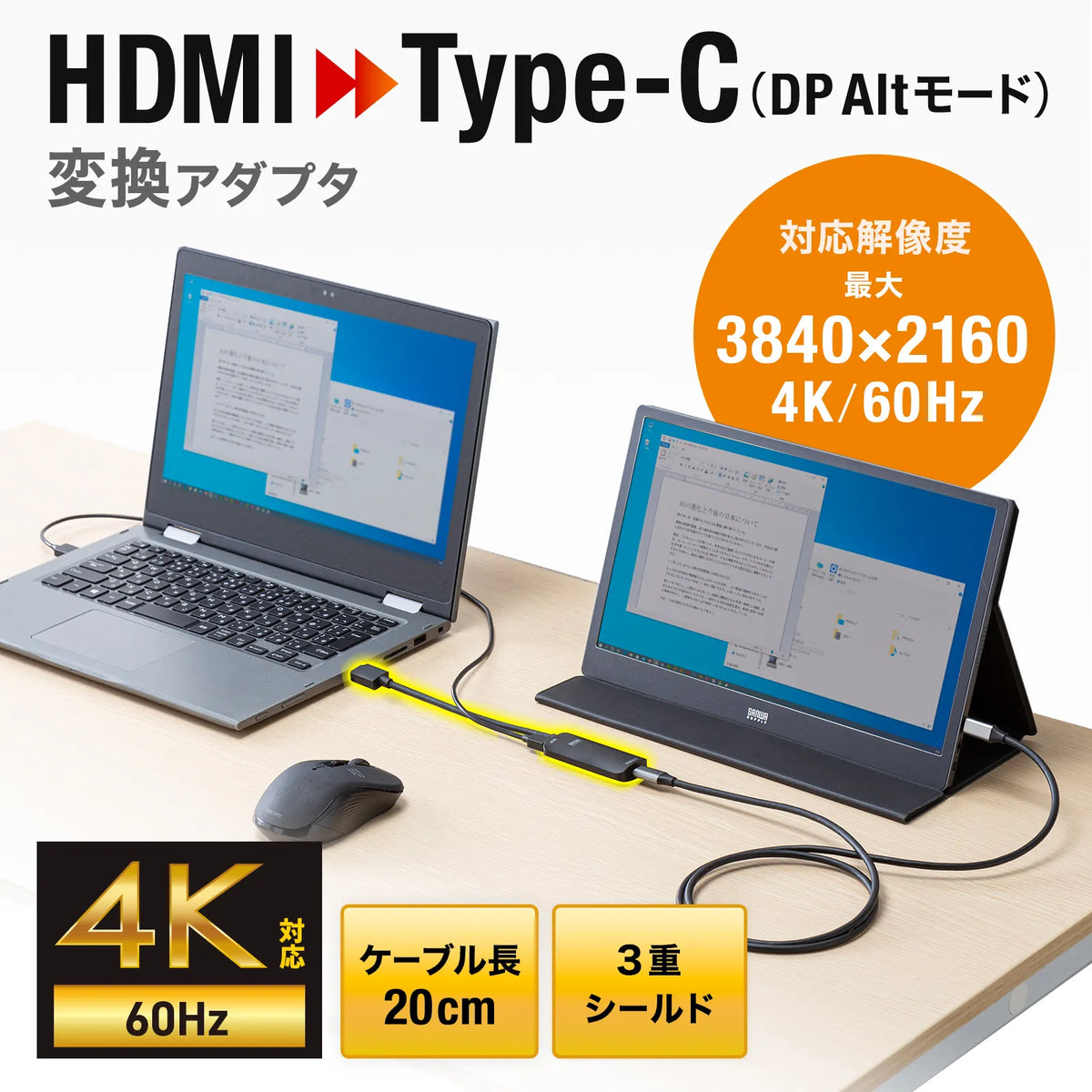

●Supports 4K (3840x2160)/60Hz resolution.
●Converts and outputs both high-quality HDMI video signals and HDMI audio signals to Type-C simultaneously.

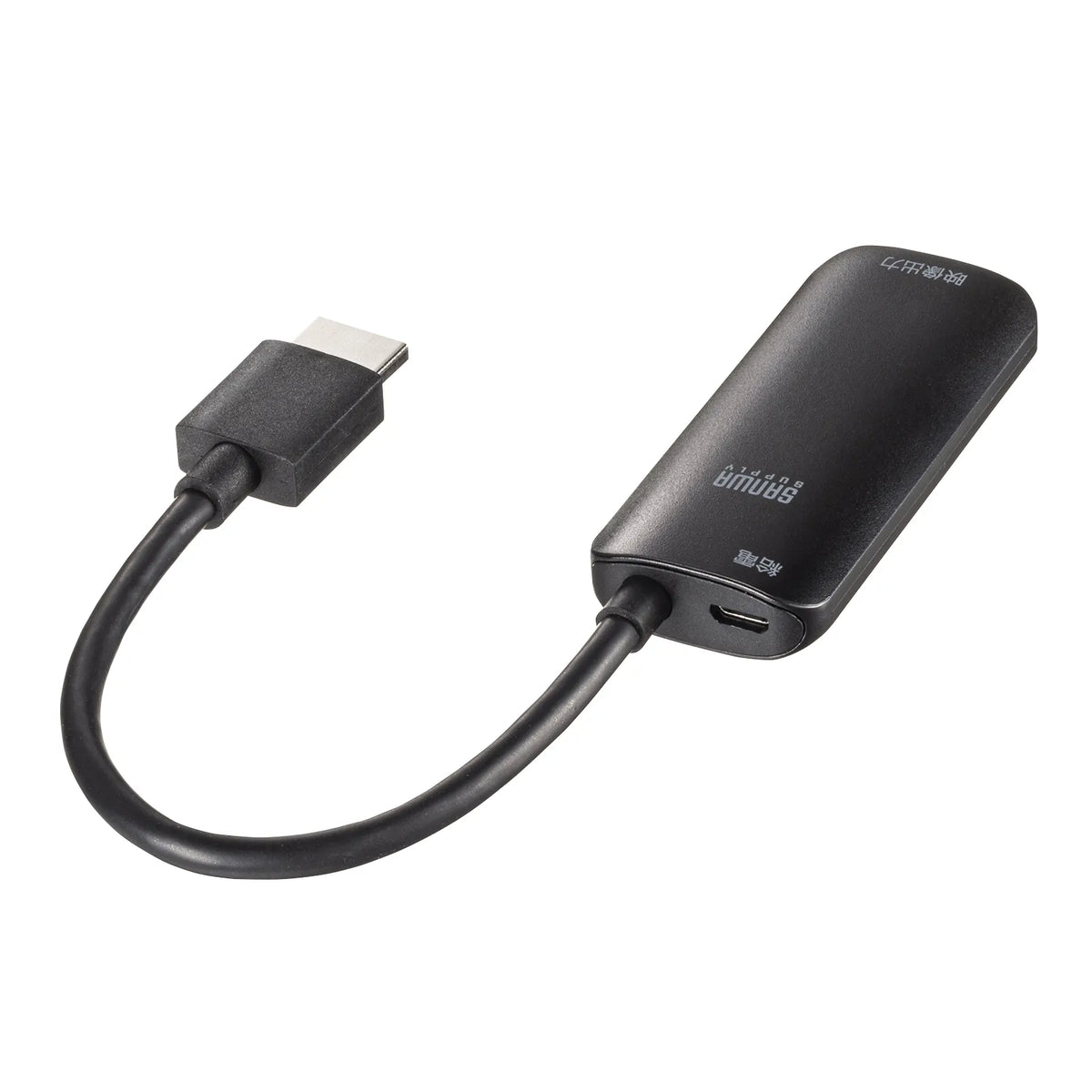

●Equipped with a power supply port (microUSB) up to 5V2A. Power can be added to the Type-C output, and power can also be supplied to connected mobile displays, etc. (Theoretical maximum/up to 1.9A)
*Operation is not guaranteed with all devices.
【Video Input Port】

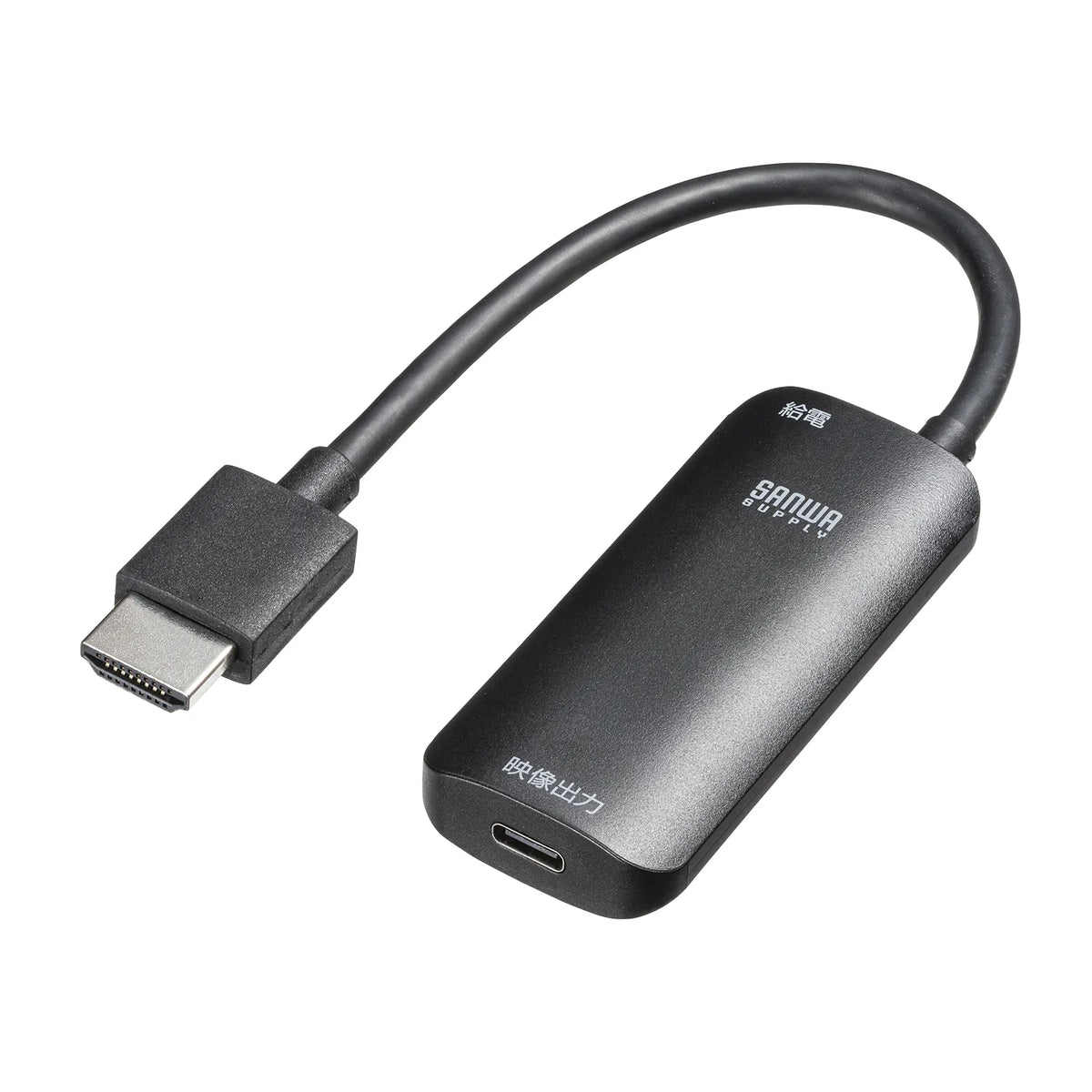

■Port Shape: HDMI Type A (19pin) Male
【Video Output Port】
■Port Shape: USB Type-C Female
■Supported Resolution: Maximum display resolution: 3840x2160/60Hz

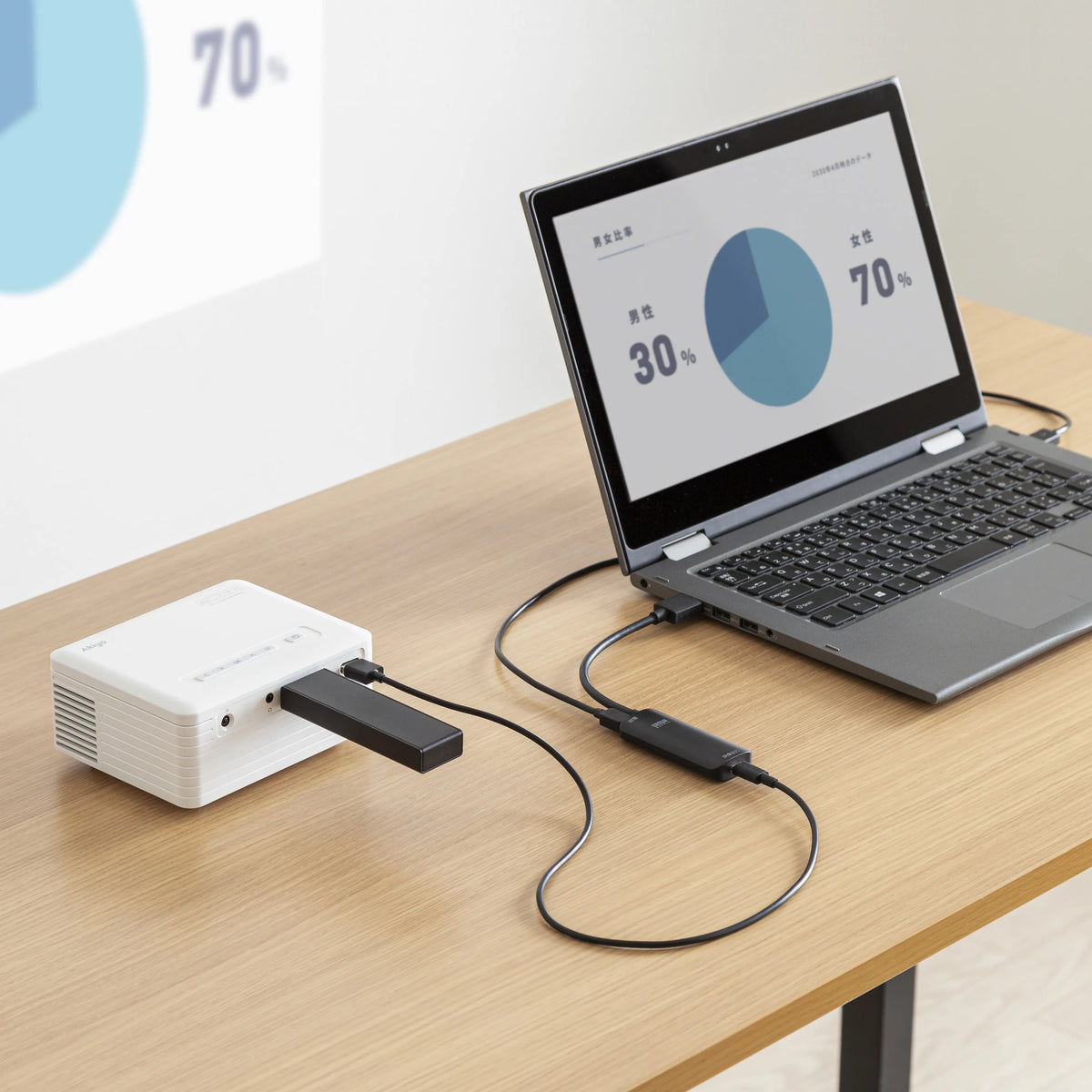

*The computer, projector or display, and connection cable must all support the same resolution.
■Maximum Supported Resolution: 4K/60Hz
【Common Specifications】
■Adapter Type: HDMI
■Compatible Models:
Computers from various manufacturers (models with HDMI output terminals)
*May not function properly depending on the environment and equipment.
*Operation is not guaranteed with all devices.
Compatible Output Devices
Mobile displays and monitors equipped with a standard Type-C input terminal
*It is not possible to convert the HDMI port on the display monitor side to a Type-C connector.
■Current Consumption: 100mA
(Maximum)

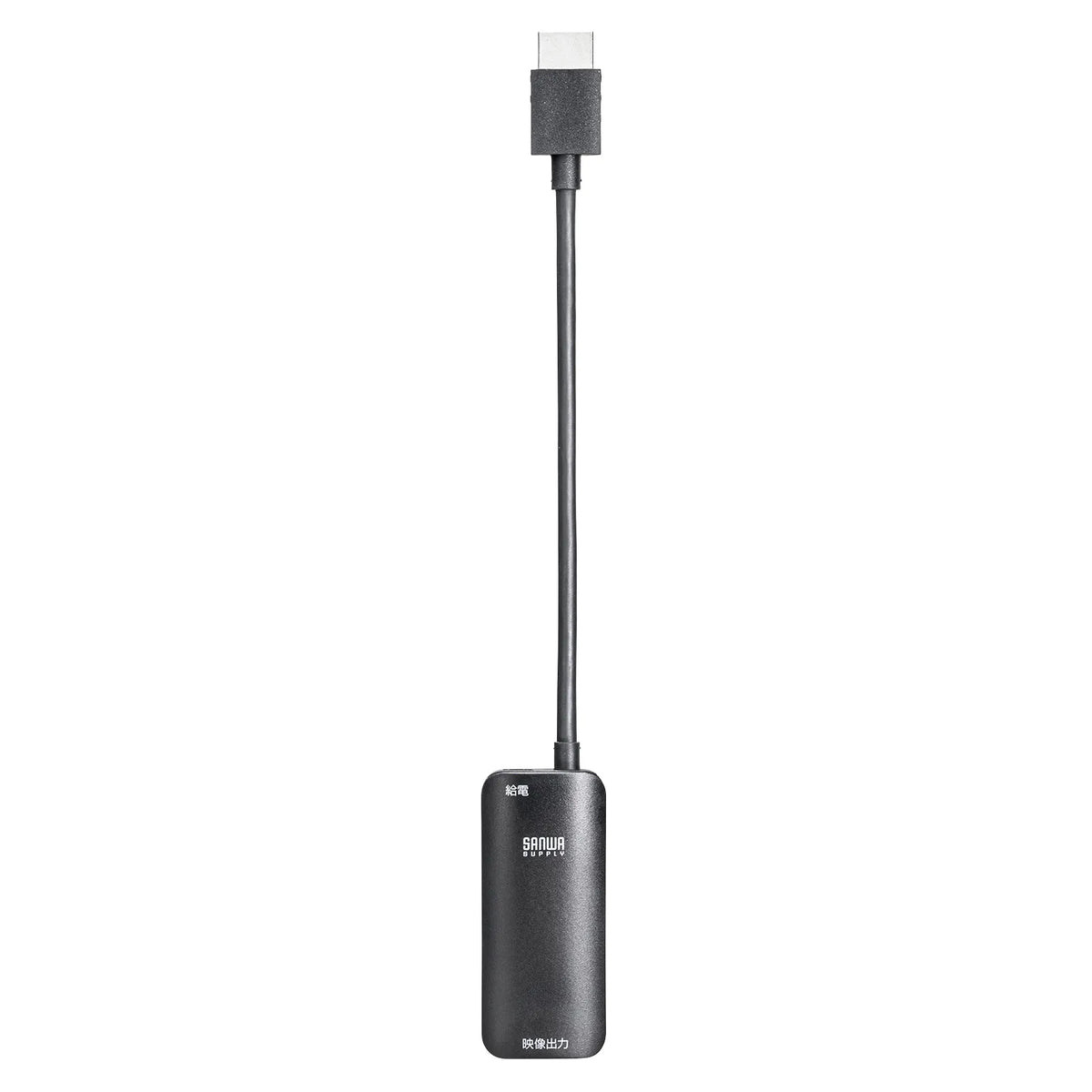

■Cable Length: Approx. 0.2m
■Cable Diameter: Approx. 4.8mm

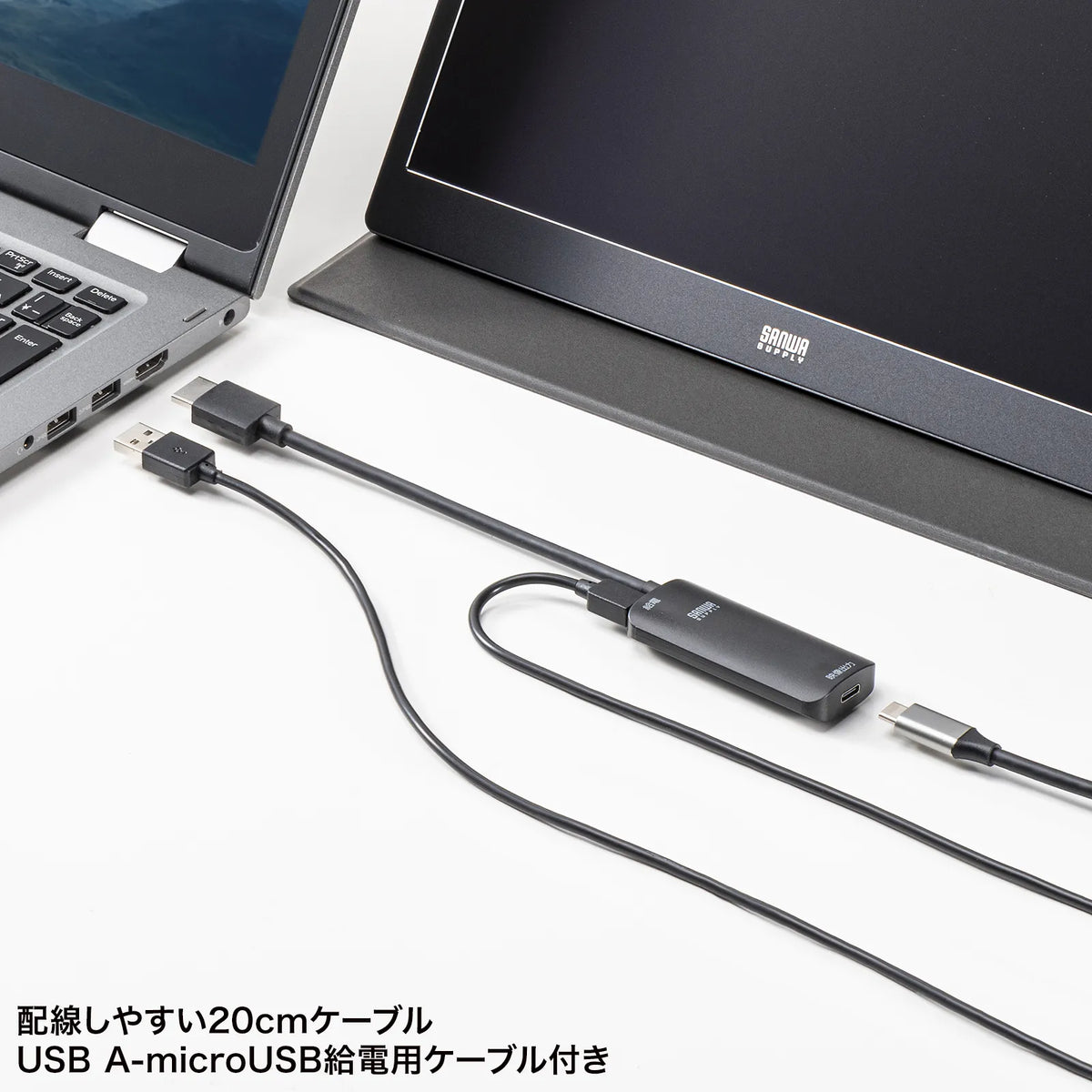

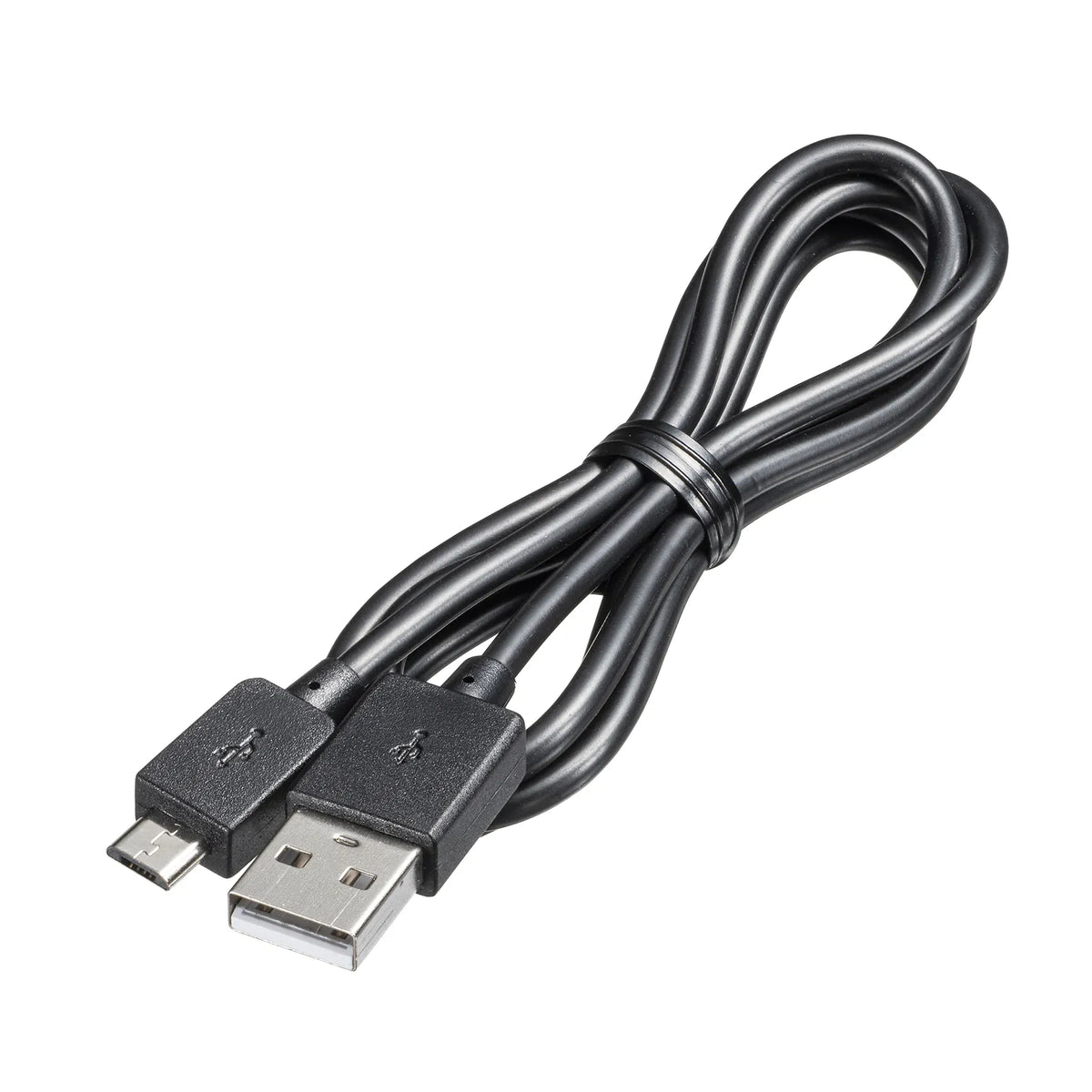

■Set Contents: USB A-microUSB power supply cable (1m)
【Other Specifications】
■HDMI Standard: HDMI2.0
■HDCP: HDCP1.4/HDCP2.2
■HDR: Not supported
■Shielding Method: Triple shielding (cable section)
●Converts HDMI signals to USB Type-C DisplayPort Alt Mode and can output video to mobile displays and other devices equipped with a USB Type-C input.
●Supports 4K (3840x2160)/60Hz resolution.
●Converts and outputs both high-quality HDMI video signals and HDMI audio signals to Type-C simultaneously.
●Equipped with a power supply port (microUSB) up to 5V2A. Power can be added to the Type-C output, and power can also be supplied to connected mobile displays, etc. (Theoretical maximum/up to 1.9A)
*Operation is not guaranteed with all devices.
【Video Input Port】
■Port Shape: HDMI Type A (19pin) Male
【Video Output Port】
■Port Shape: USB Type-C Female
■Supported Resolution: Maximum display resolution: 3840x2160/60Hz
*The computer, projector or display, and connection cable must all support the same resolution.
■Maximum Supported Resolution: 4K/60Hz
【Common Specifications】
■Adapter Type: HDMI
■Compatible Models:
Computers from various manufacturers (models with HDMI output terminals)
*May not function properly depending on the environment and equipment.
*Operation is not guaranteed with all devices.
Compatible Output Devices
Mobile displays and monitors equipped with a standard Type-C input terminal
*It is not possible to convert the HDMI port on the display monitor side to a Type-C connector.
■Current Consumption: 100mA
(Maximum)
■Cable Length: Approx. 0.2m
■Cable Diameter: Approx. 4.8mm
■Set Contents: USB A-microUSB power supply cable (1m)
【Other Specifications】
■HDMI Standard: HDMI2.0
■HDCP: HDCP1.4/HDCP2.2
■HDR: Not supported
■Shielding Method: Triple shielding (cable section)
