SANWA SUPPLY

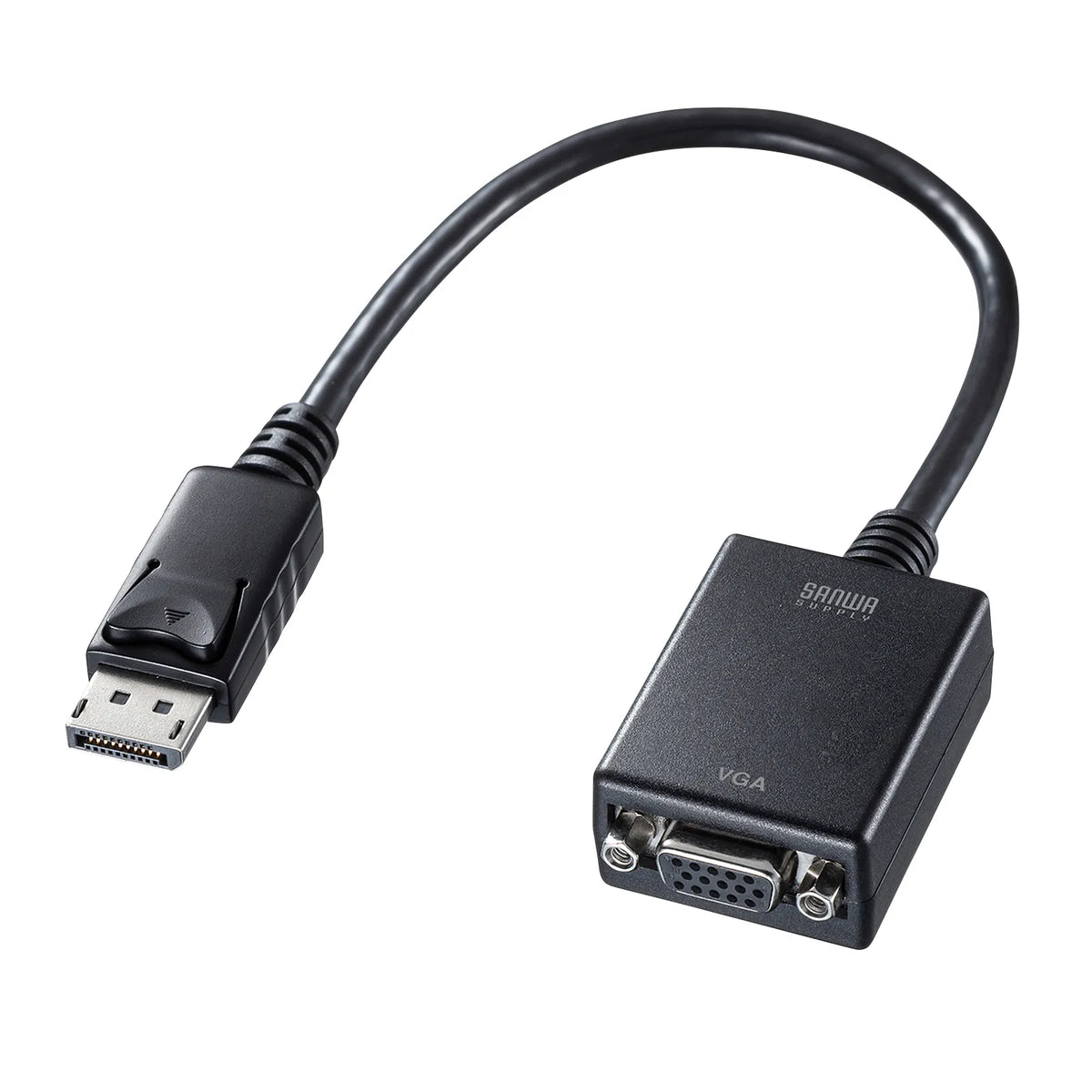

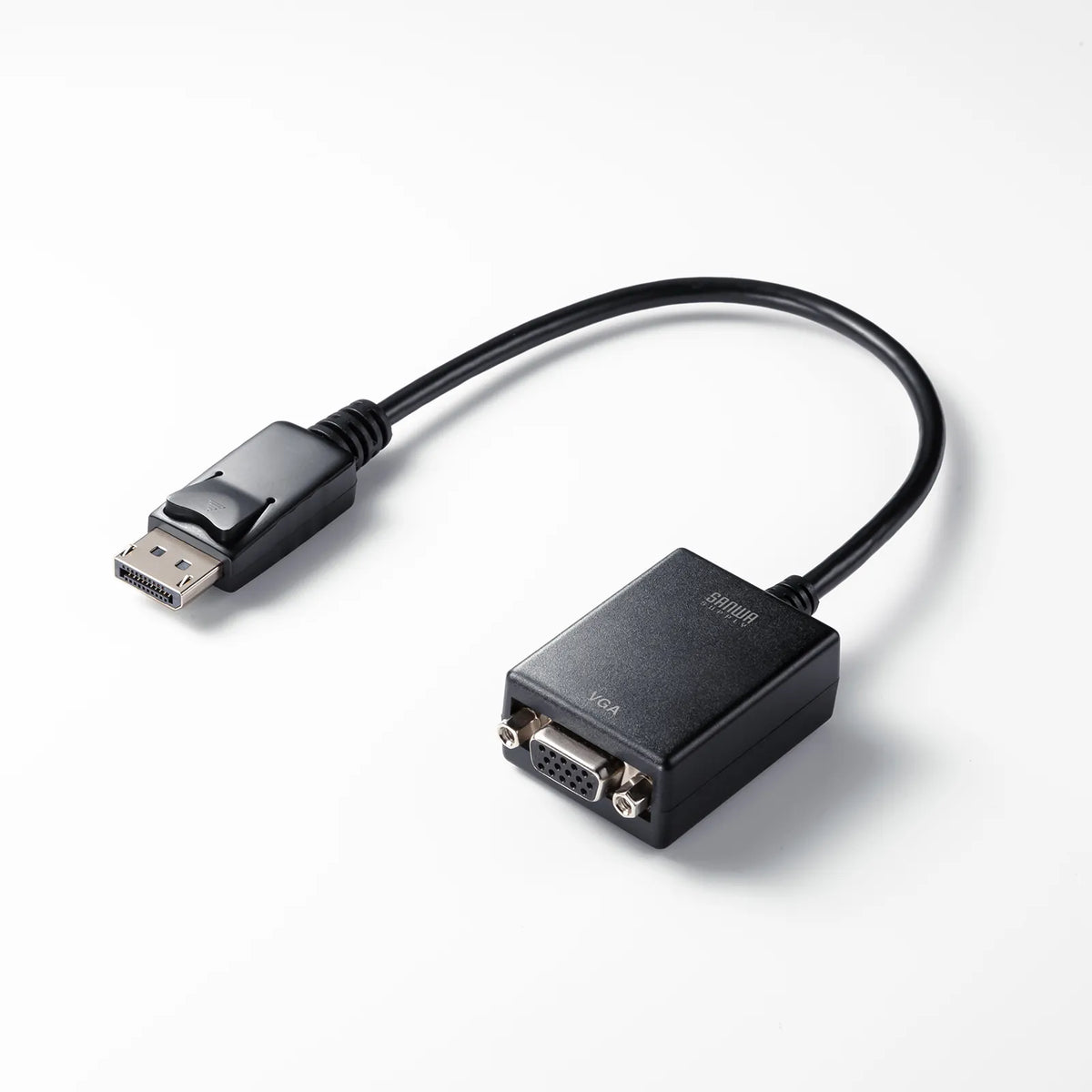

DisplayPort to VGA Conversion Adapter AD-DPV06

DisplayPort to VGA Conversion Adapter AD-DPV06

GTIN(JAN):4969887772638

SKU:AD-DPV06

Regular price ¥1,815 JPY
Regular price Sale price ¥1,815 JPY
Sale Sold out
Quantity

Important: Return Policy

Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

[A DisplayPort-to-VGA conversion adapter that can convert digital video output from a DisplayPort connector to a VGA connector (mini D-sub (HD) 15-pin).]

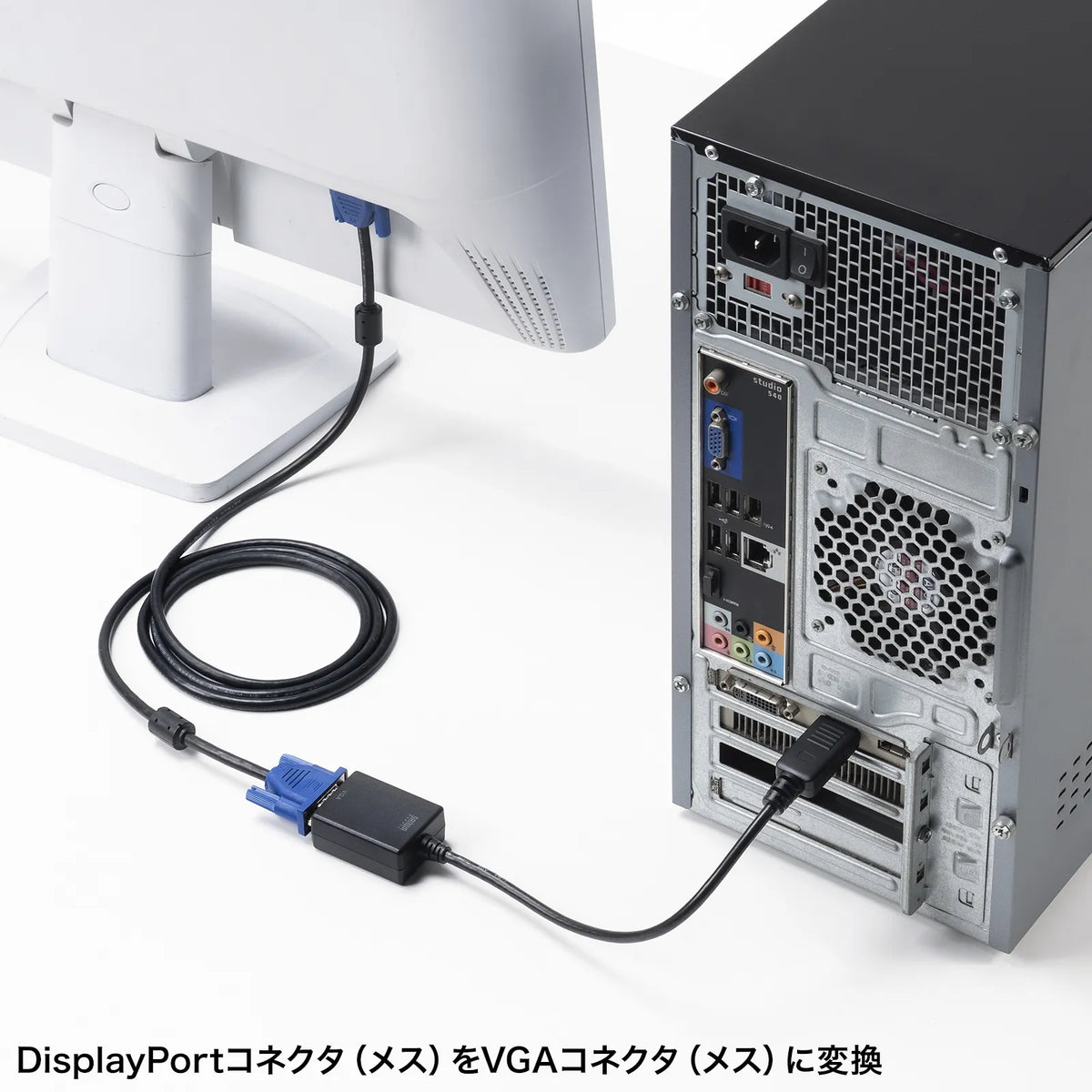

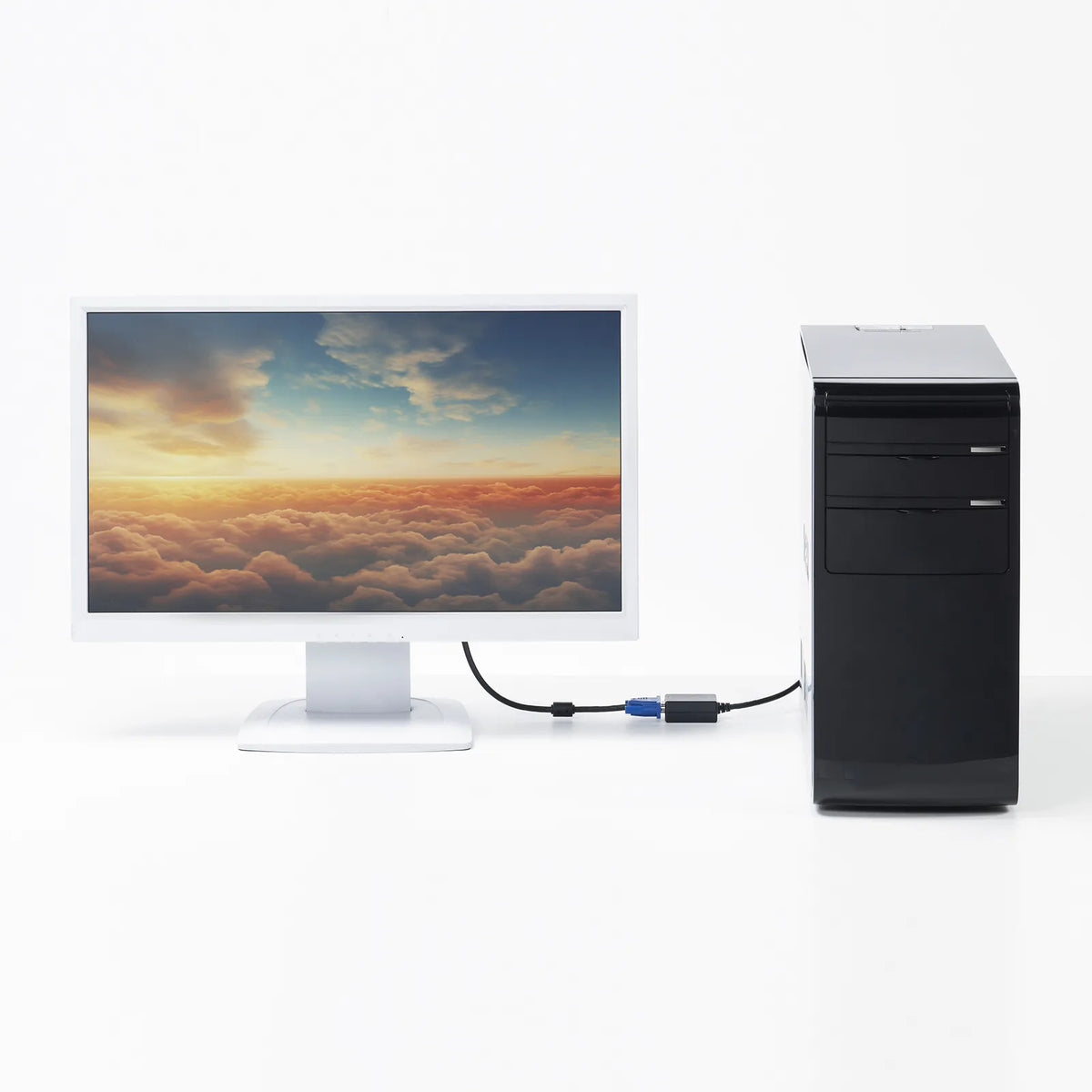

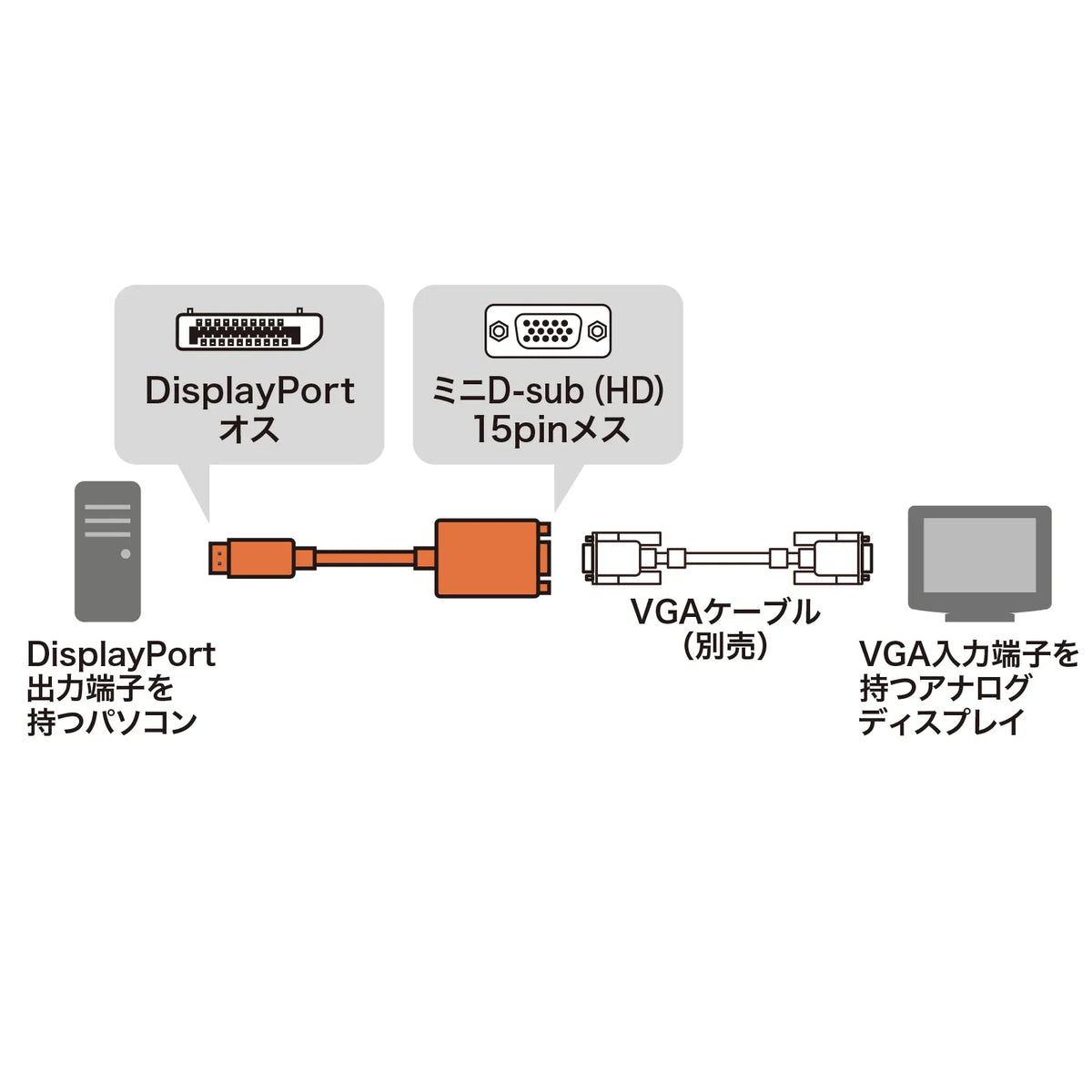

●This is a cable-integrated conversion adapter that converts the DisplayPort connector (female) on a computer to a VGA connector (female).
*It is not possible to convert the DisplayPort connector on the display monitor side to a VGA connector (mini D-sub (HD) 15-pin).

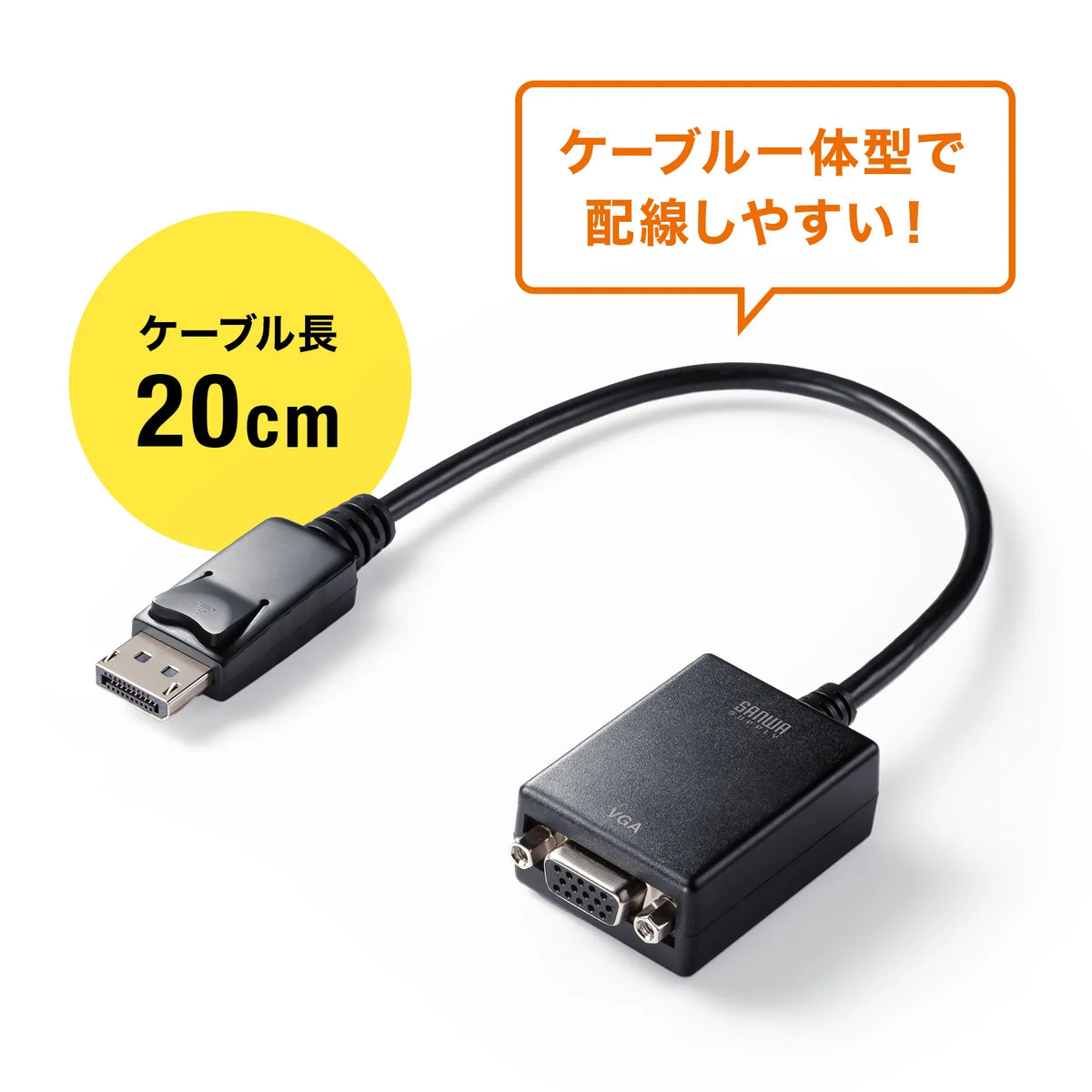

●The integrated short cable makes it easy to handle and allows connection without interference with other interfaces.

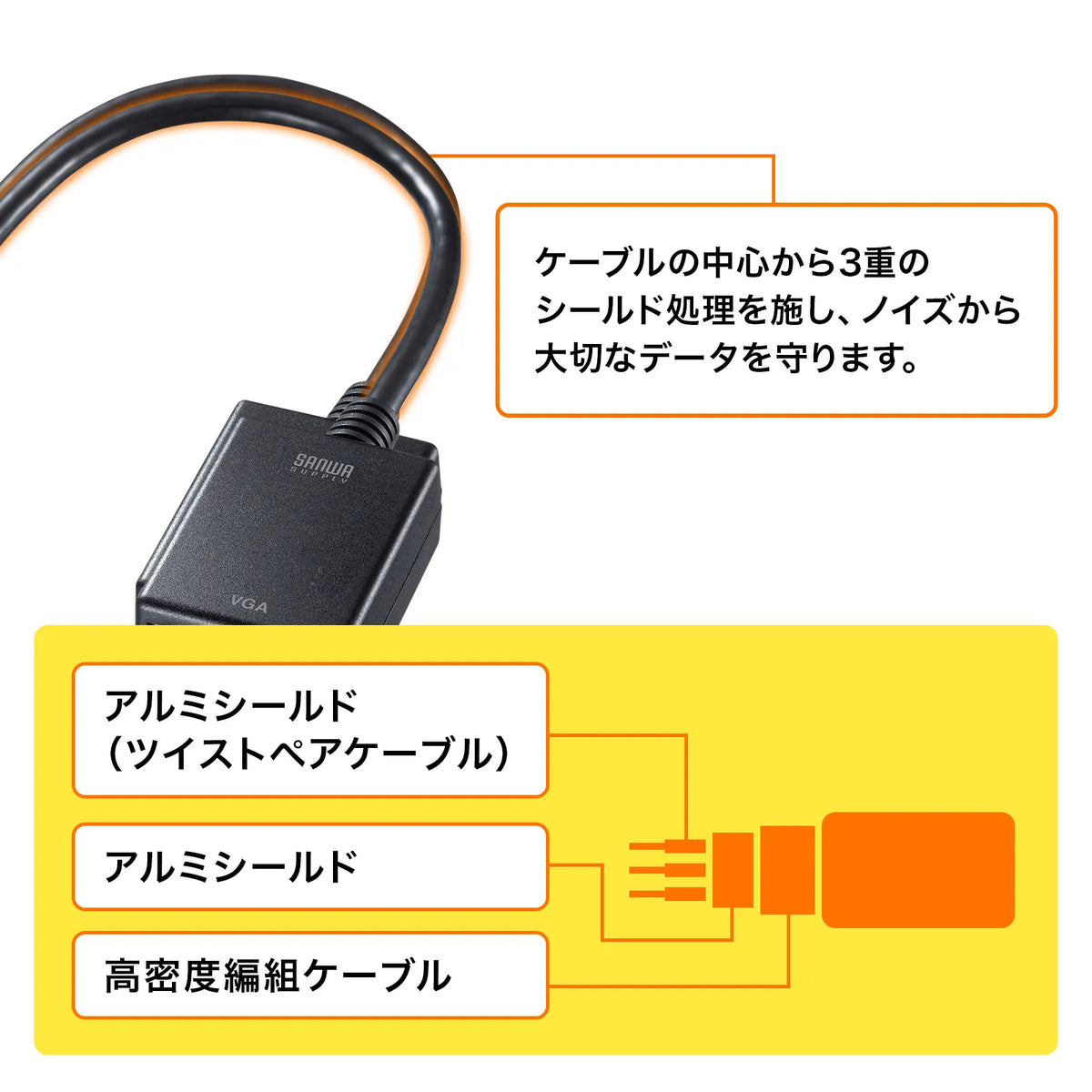

●The cable section is triple-shielded with "aluminum shield (twisted pair cable) → aluminum shield → high-density braided shield" to prevent noise interference.
●It uses gold-plated pins that are resistant to rust and have little signal degradation due to aging.
●It uses lead-free solder that contains almost no lead, which is a cause of environmental pollution such as soil and groundwater.





【Video Input Port】
■Port Shape: DisplayPort Male

【Video Output Port】
■Port Shape: VGA (Mini D-Sub (HD) 15pin) Female

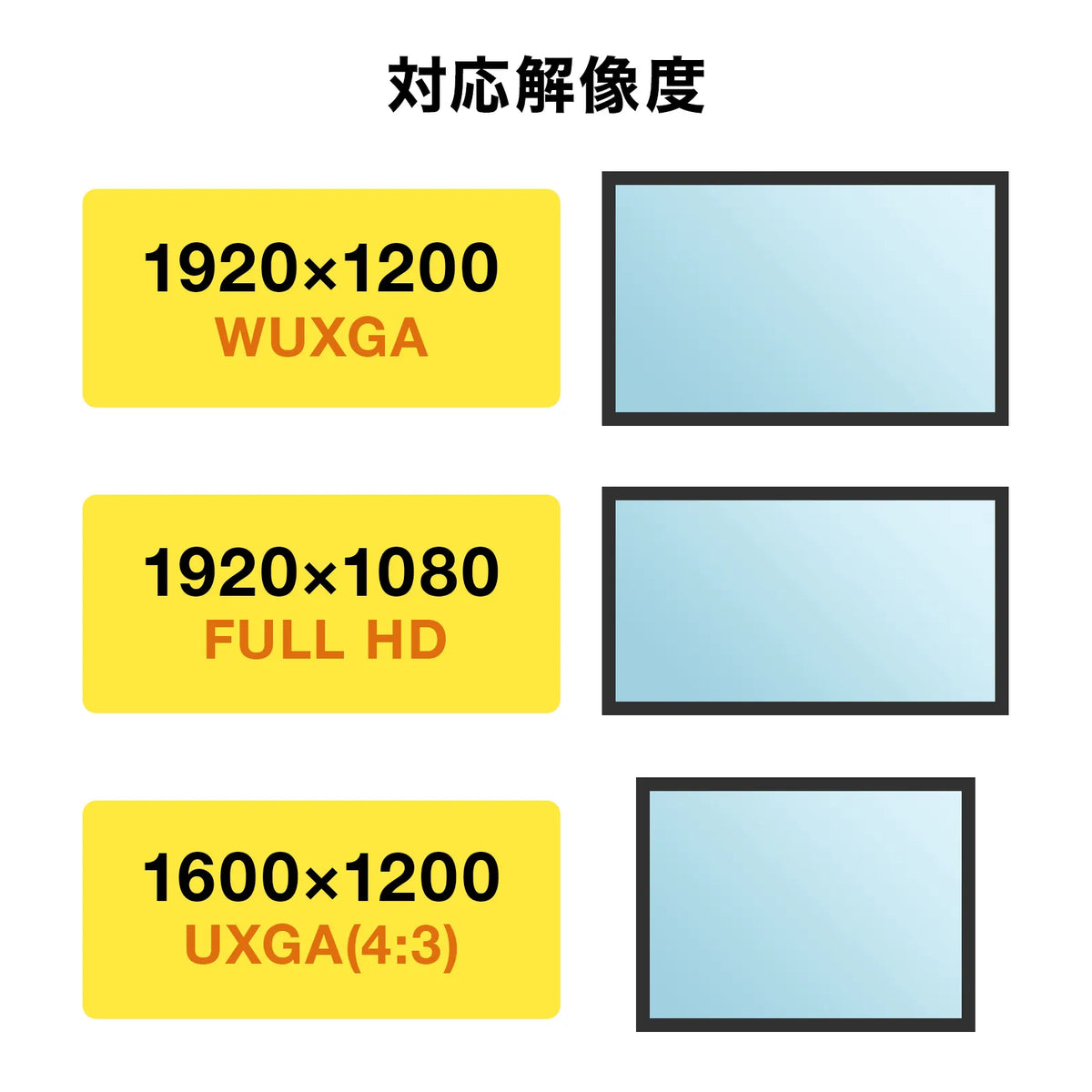

■Supported Resolutions: 1920x1200, 1920x1080, 1600x1200
■Maximum Supported Resolution: 1080p

【Common Specifications】

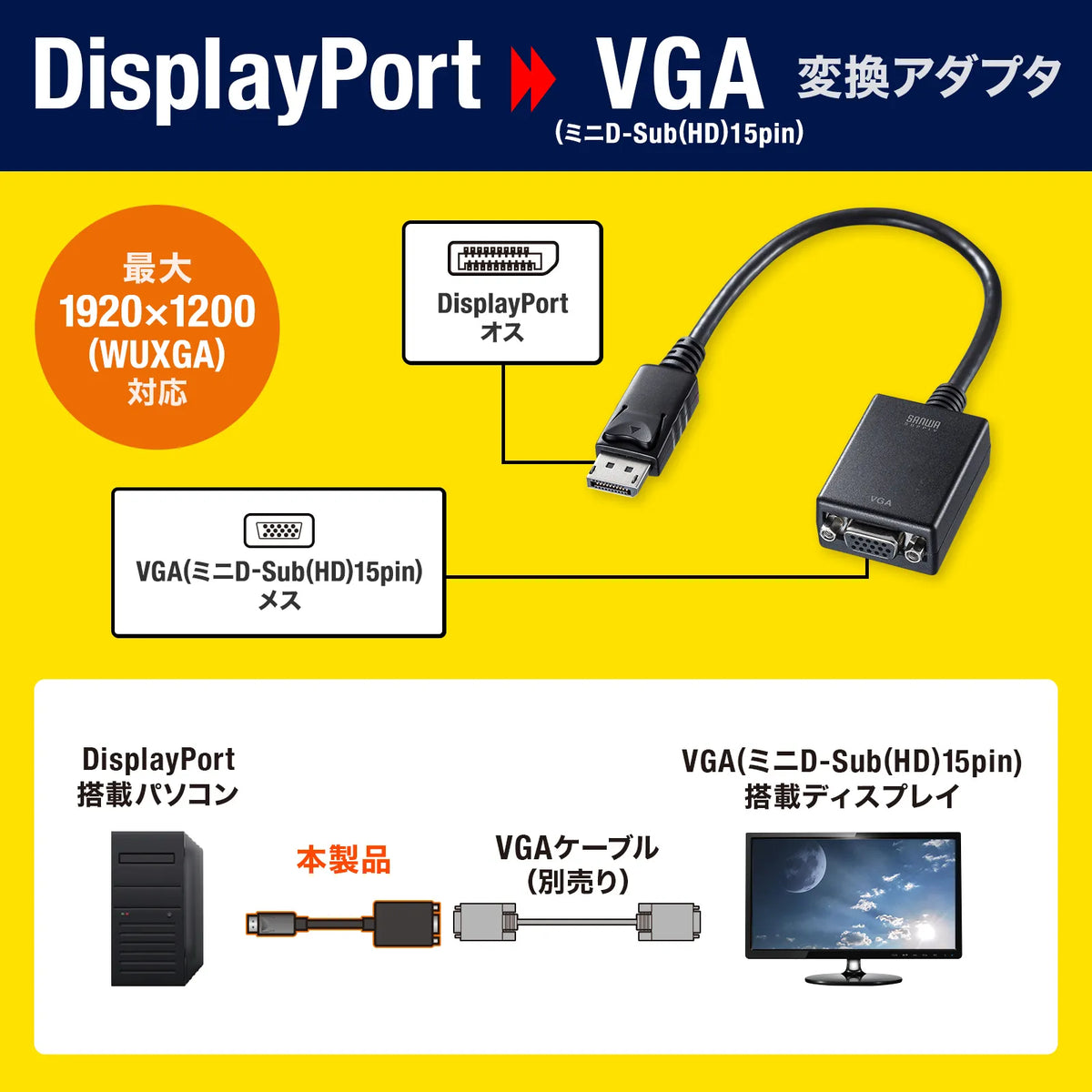

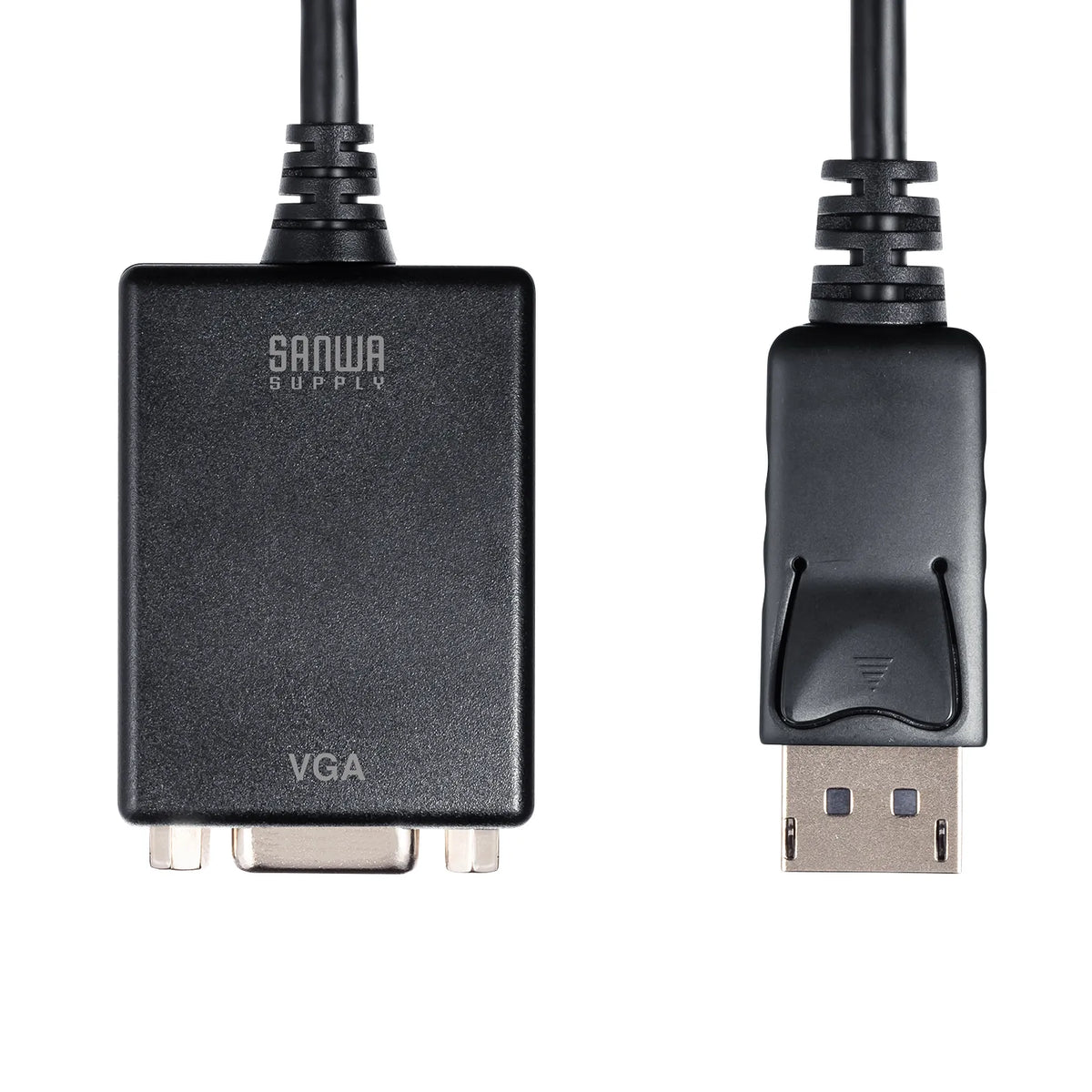

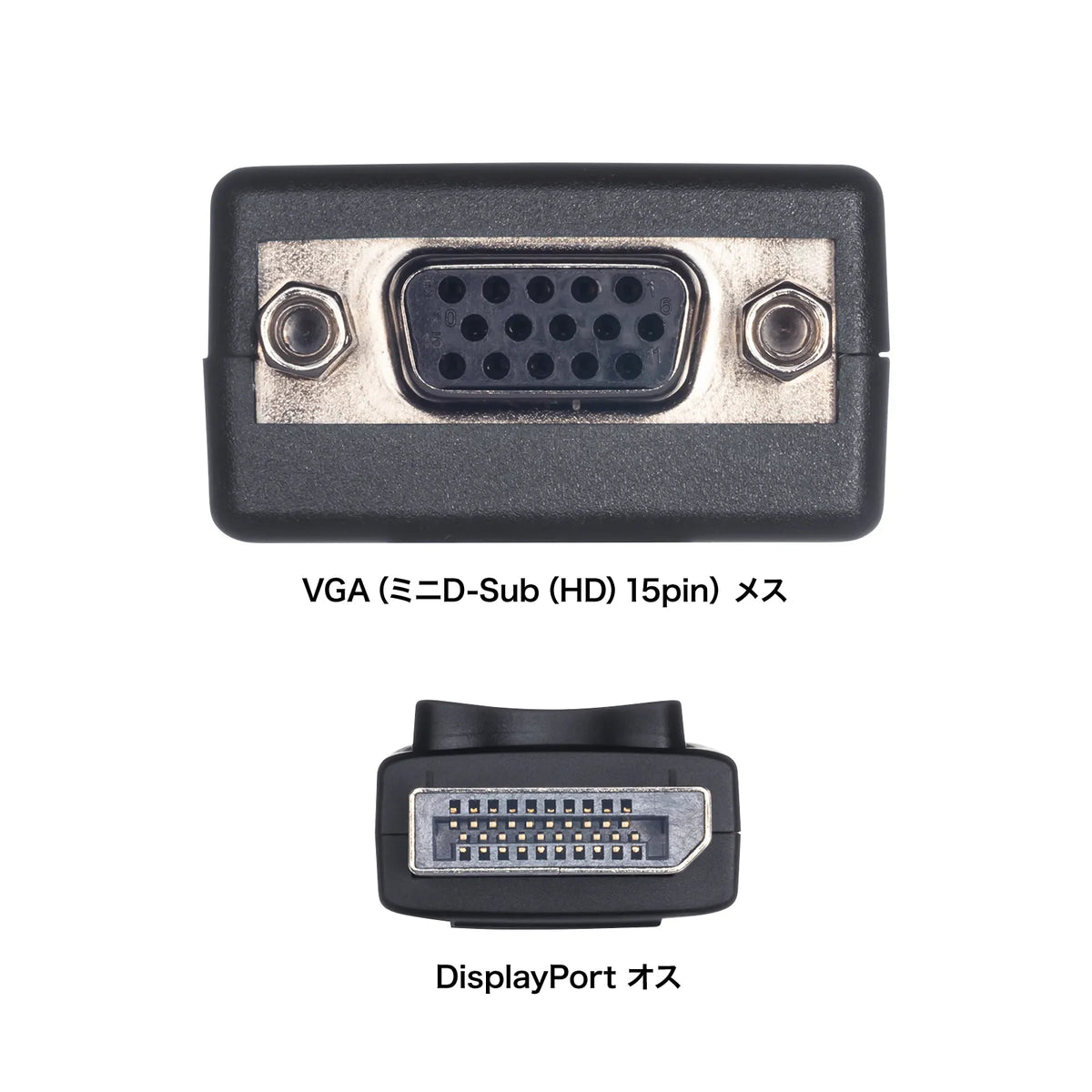

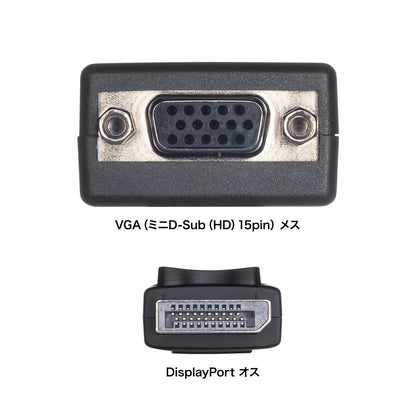

■Connector Shape: DisplayPort Male - Mini D-sub (HD) 15pin Female
*Active Type
■Adapter Type: DisplayPort
■Compatible Devices:
PCs: PCs from various manufacturers equipped with DisplayPort
Displays: TVs and PC displays that come standard with a Mini D-sub (HD) 15pin input terminal
*It is not possible to convert the DisplayPort on the display monitor side to a VGA connector (Mini D-sub (HD) 15pin).
*This product does not support audio data.


■Cable length: Approx. 0.2m
■Cable diameter: Approx. 6mm

【Other specifications】
Shielding method: Triple shielding
