SANWA SUPPLY

DisplayPort to HDMI Conversion Adapter (8K Compatible) AD-DP8KHDR

DisplayPort to HDMI Conversion Adapter (8K Compatible) AD-DP8KHDR

GTIN(JAN):4969887769126

SKU:AD-DP8KHDR

Regular price ¥4,646 JPY
Regular price Sale price ¥4,646 JPY
Sale Sold out
Quantity

Important: Return Policy

Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

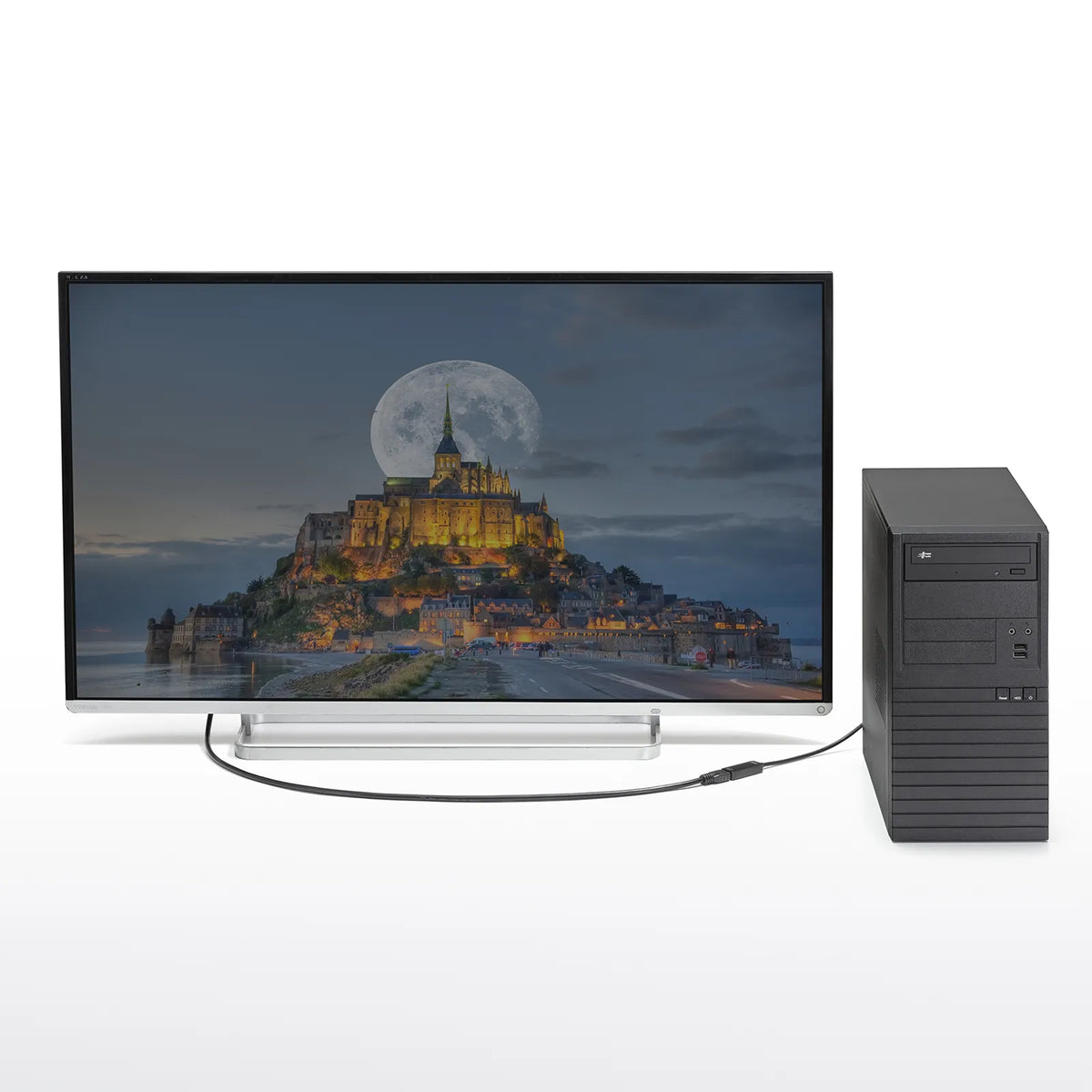

[A DisplayPort-to-HDMI conversion adapter that supports 8K and converts digital video and audio output from a DisplayPort connector to an HDMI connector.]

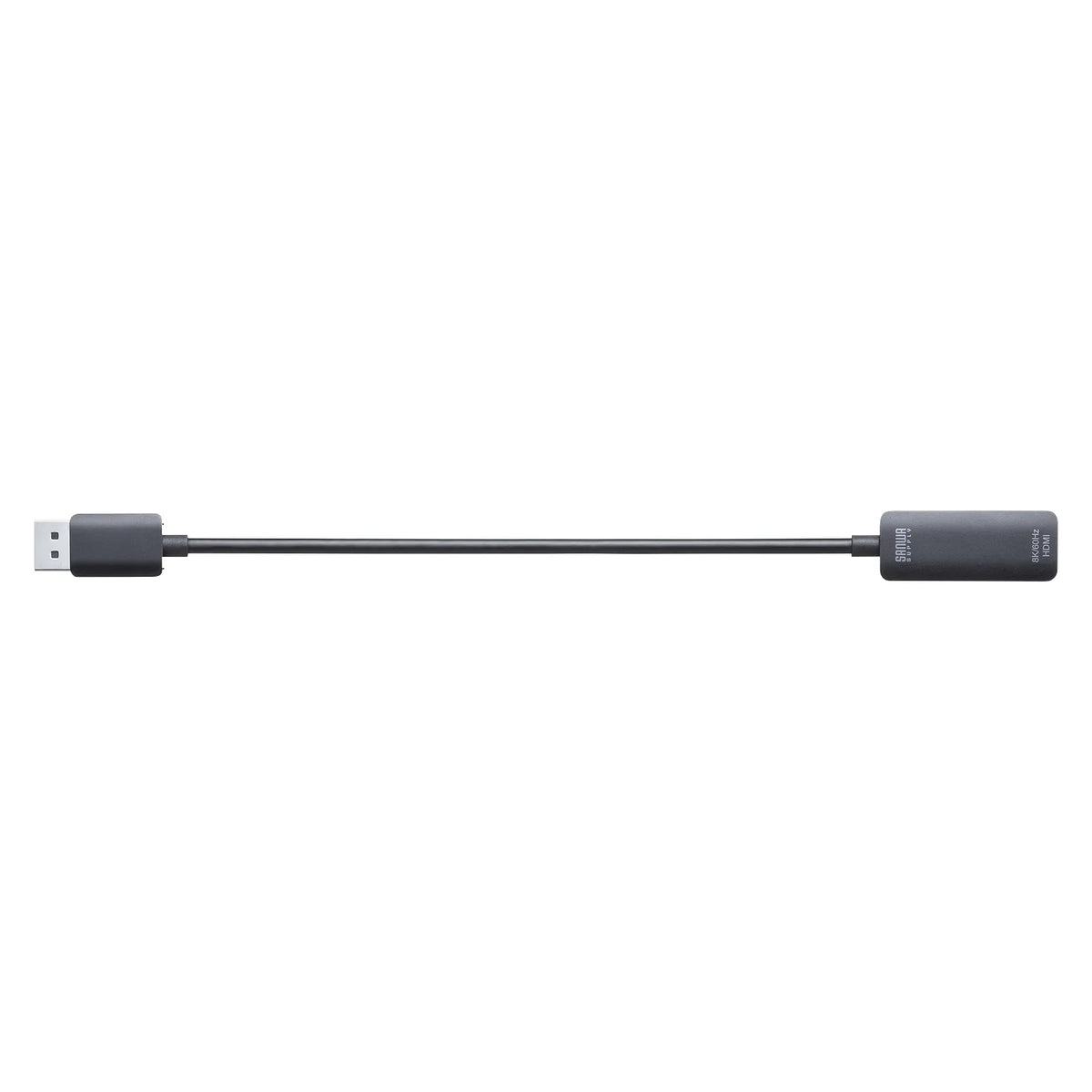

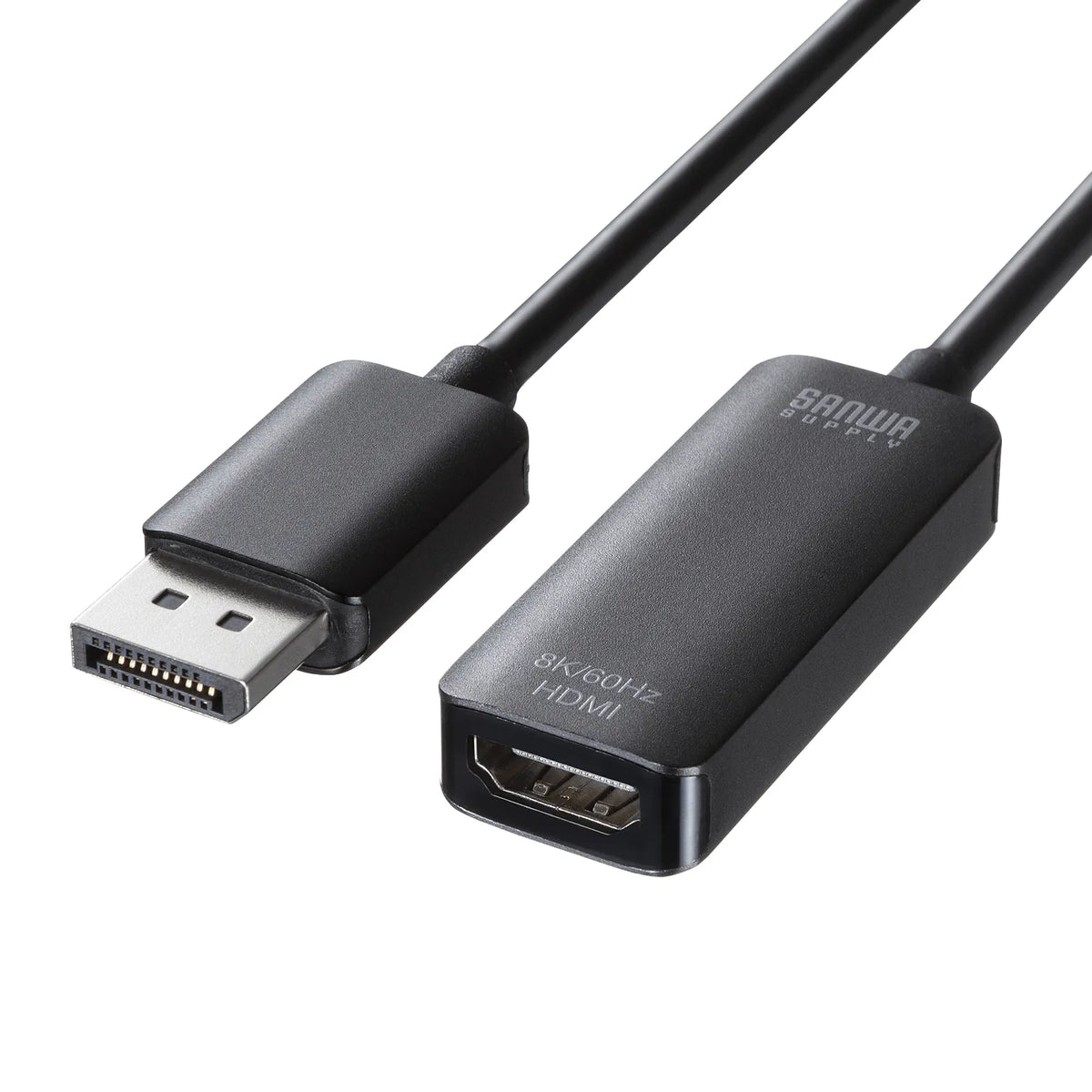

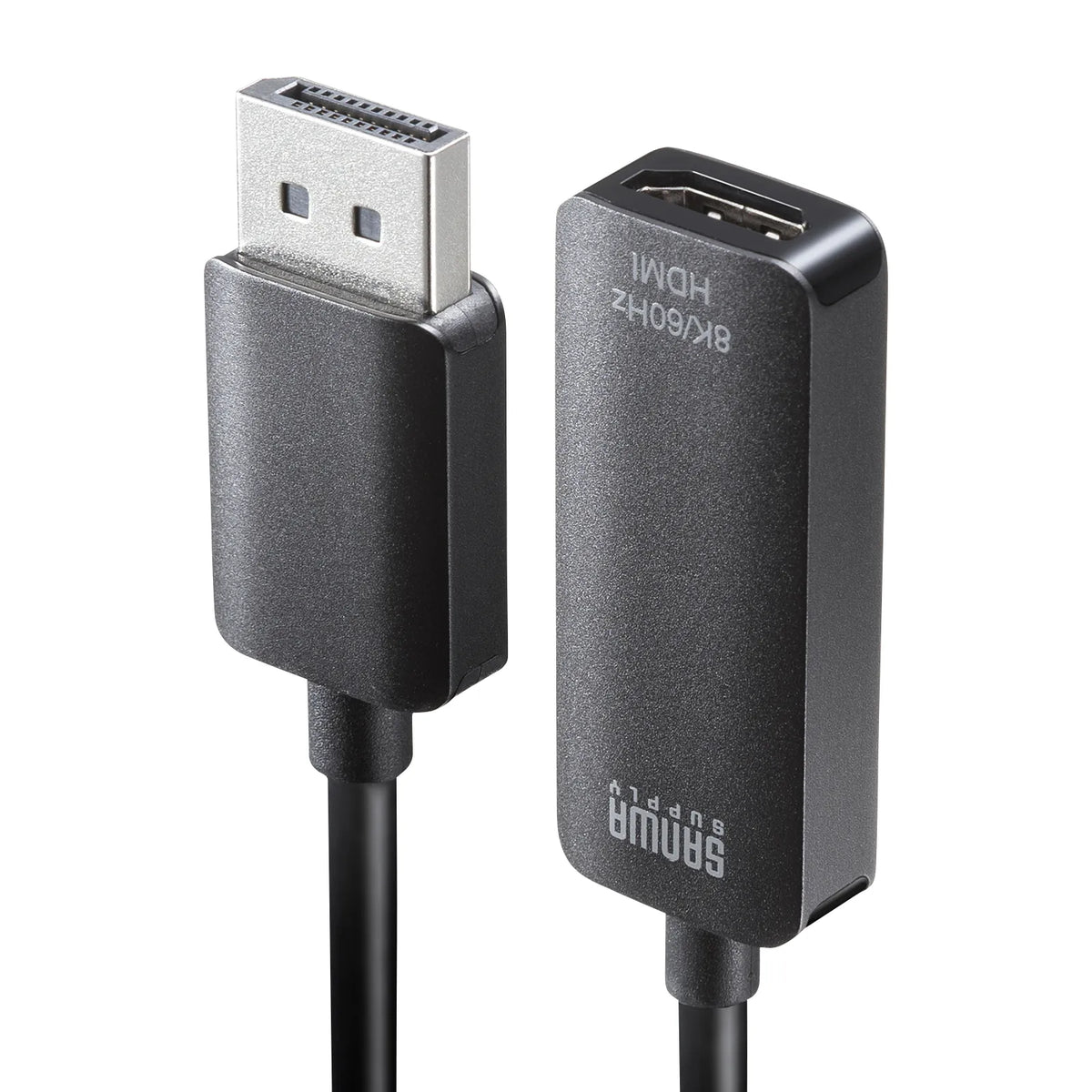

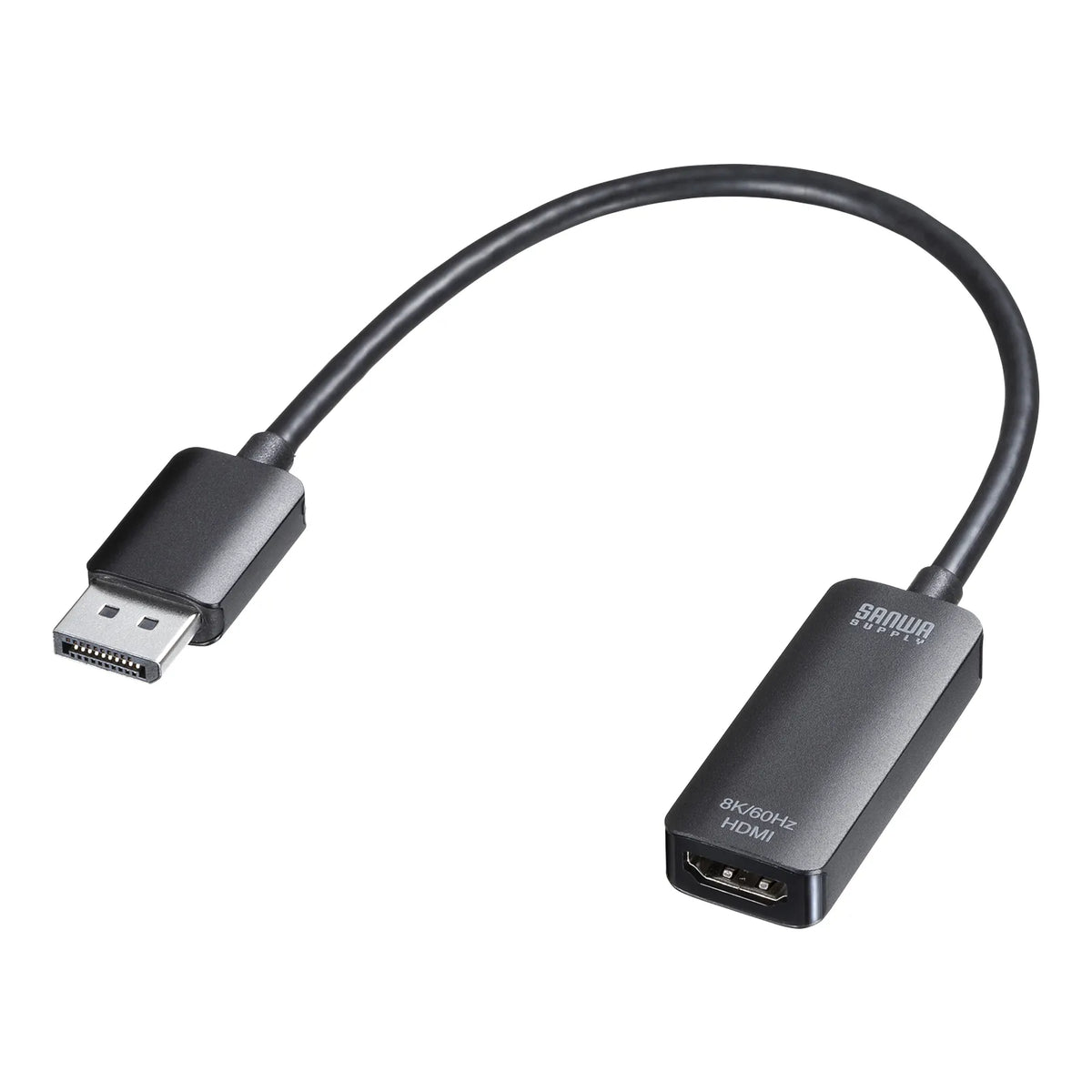

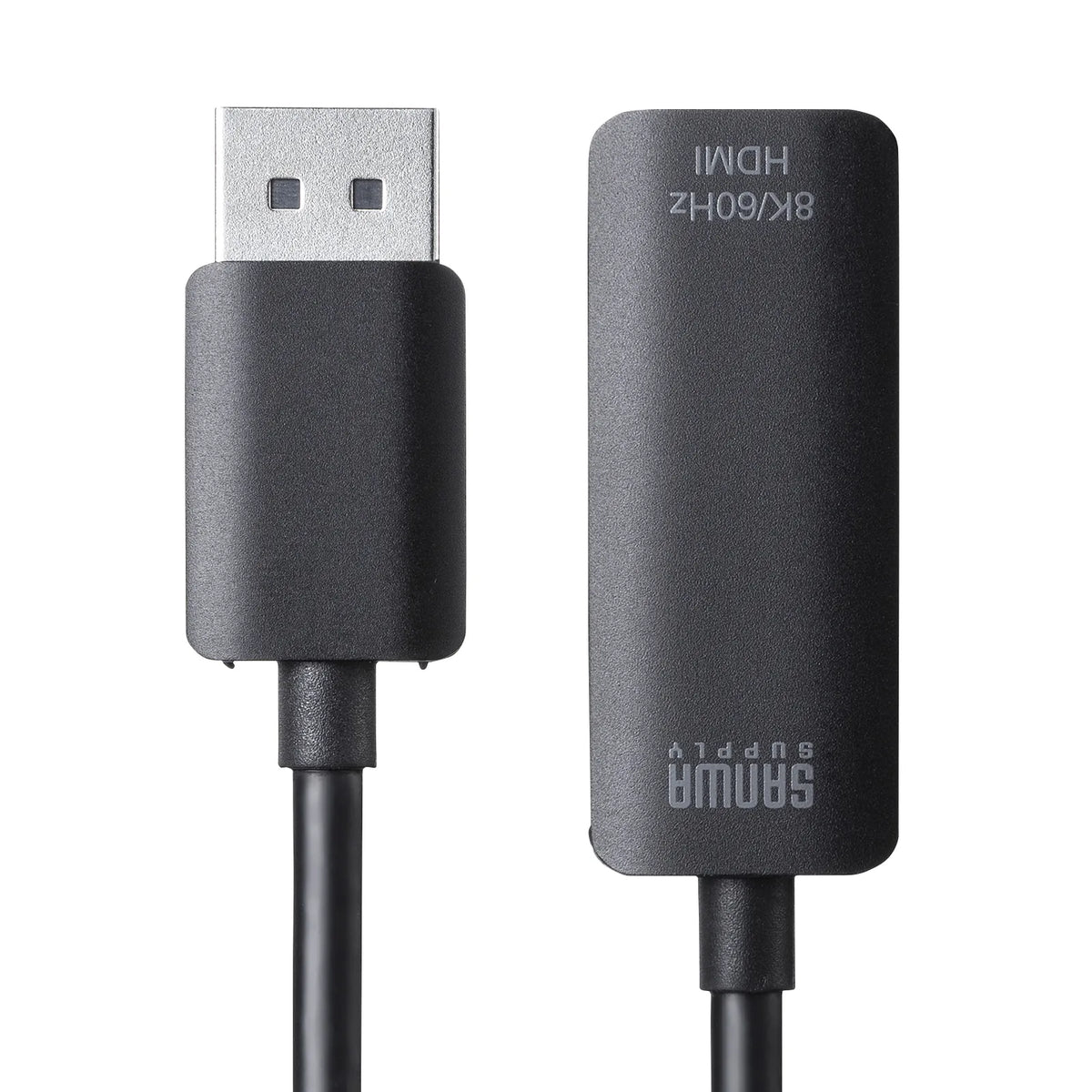

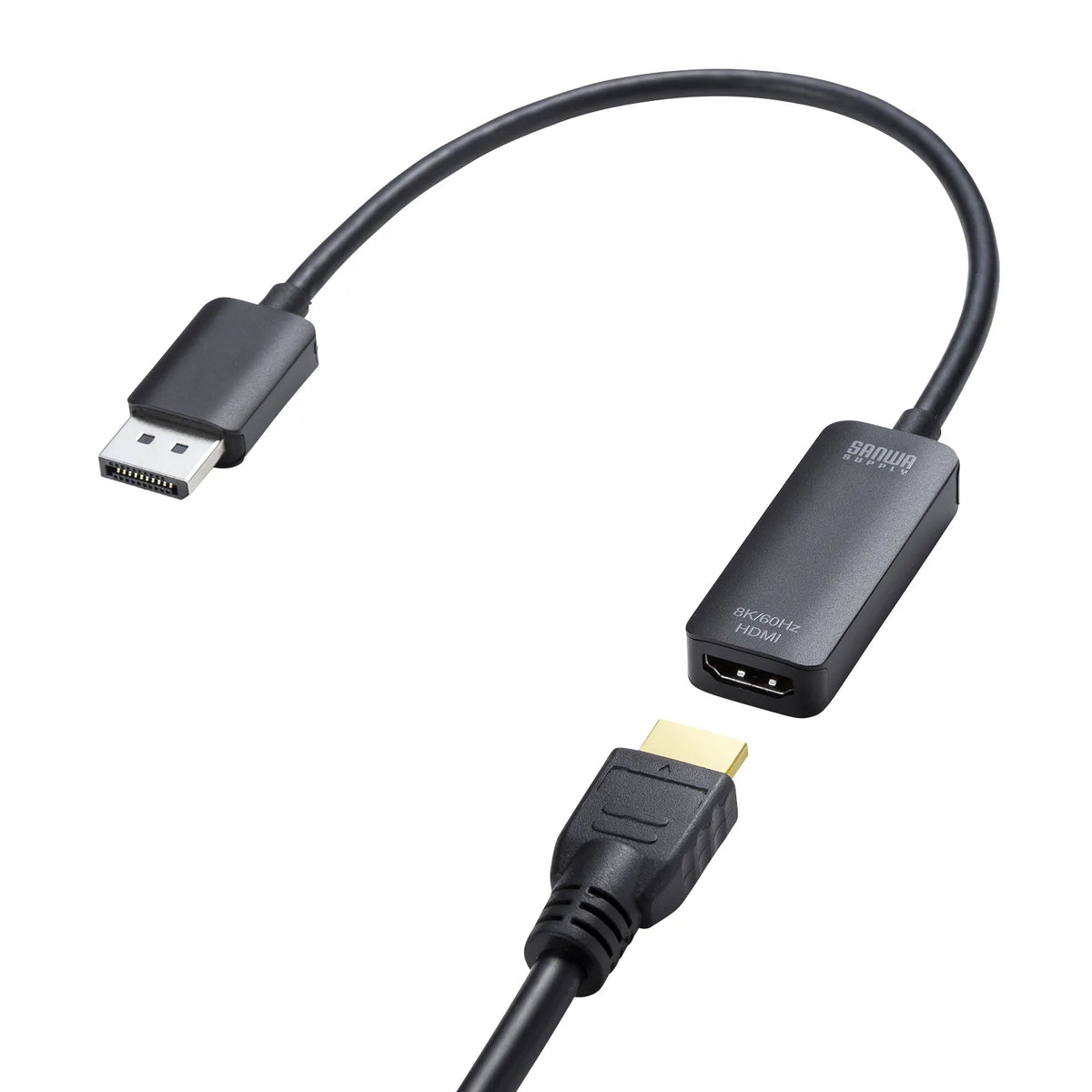

●This is a cable-integrated conversion adapter that converts a DisplayPort connector (female) to an HDMI port (female).

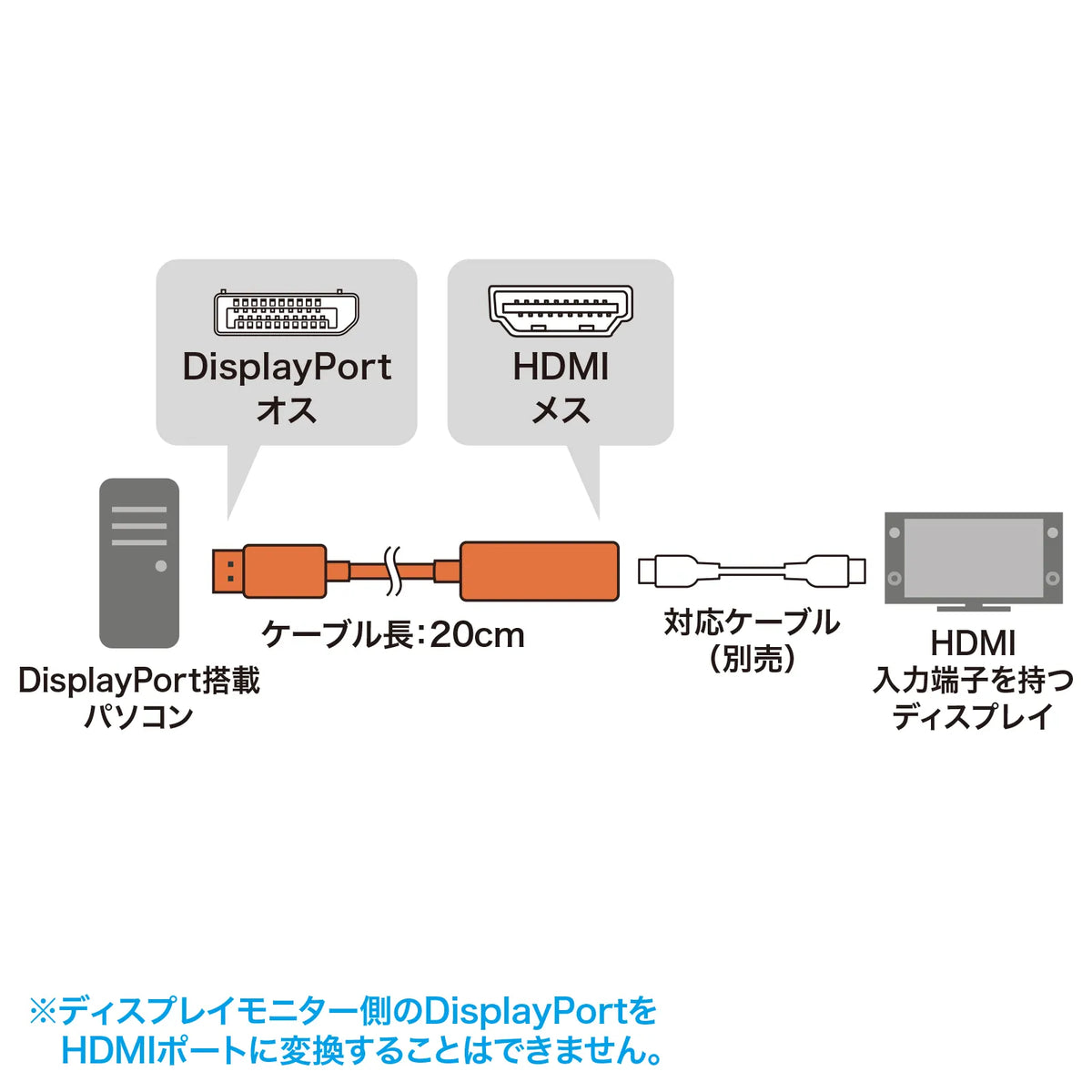

※It is not possible to convert the DisplayPort on the display side to an HDMI port.
●Supports resolutions up to 8K/60Hz and 4K/120Hz, and can output beautiful, high-definition HDMI signals.
●It can convert and output not only video signals but also audio signals.

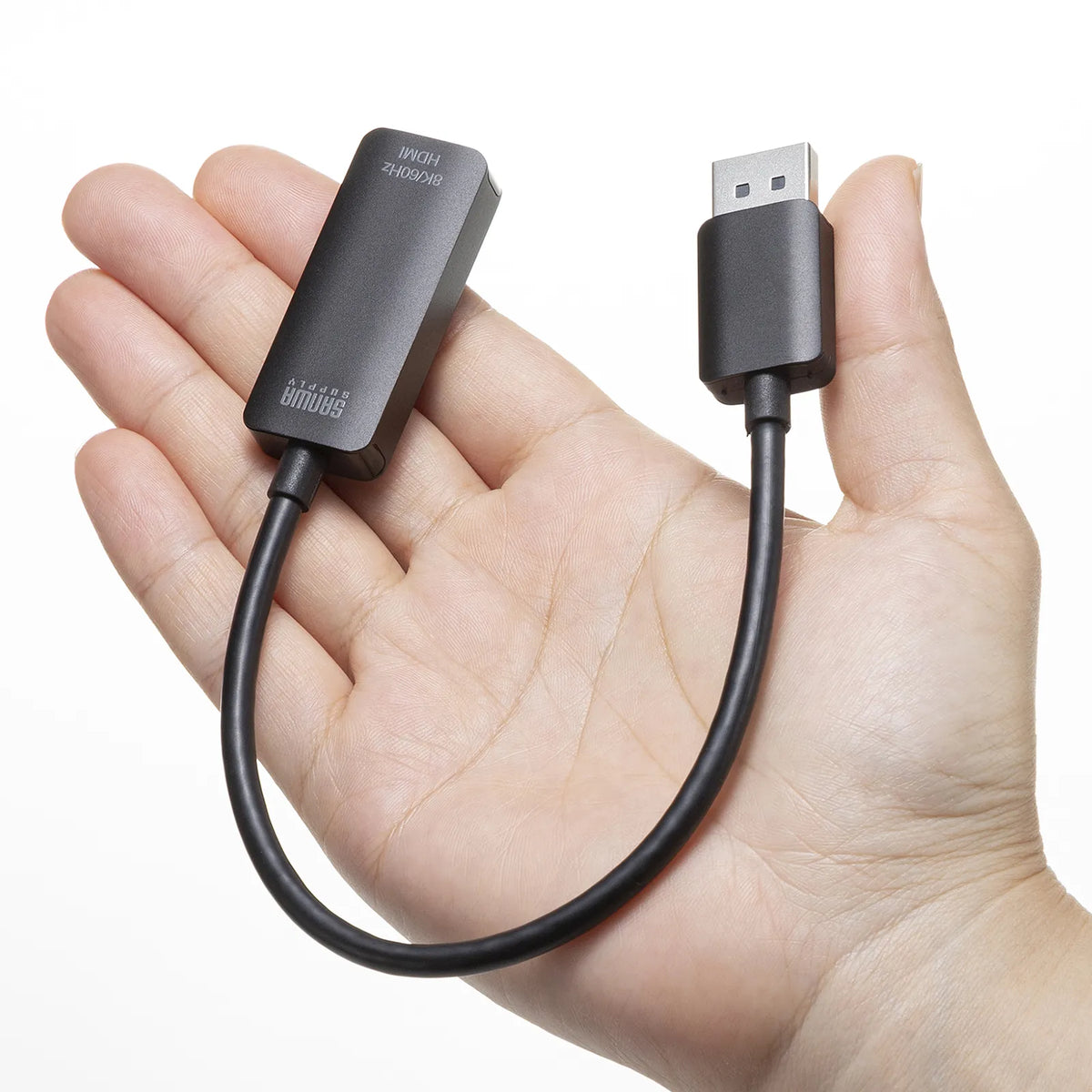

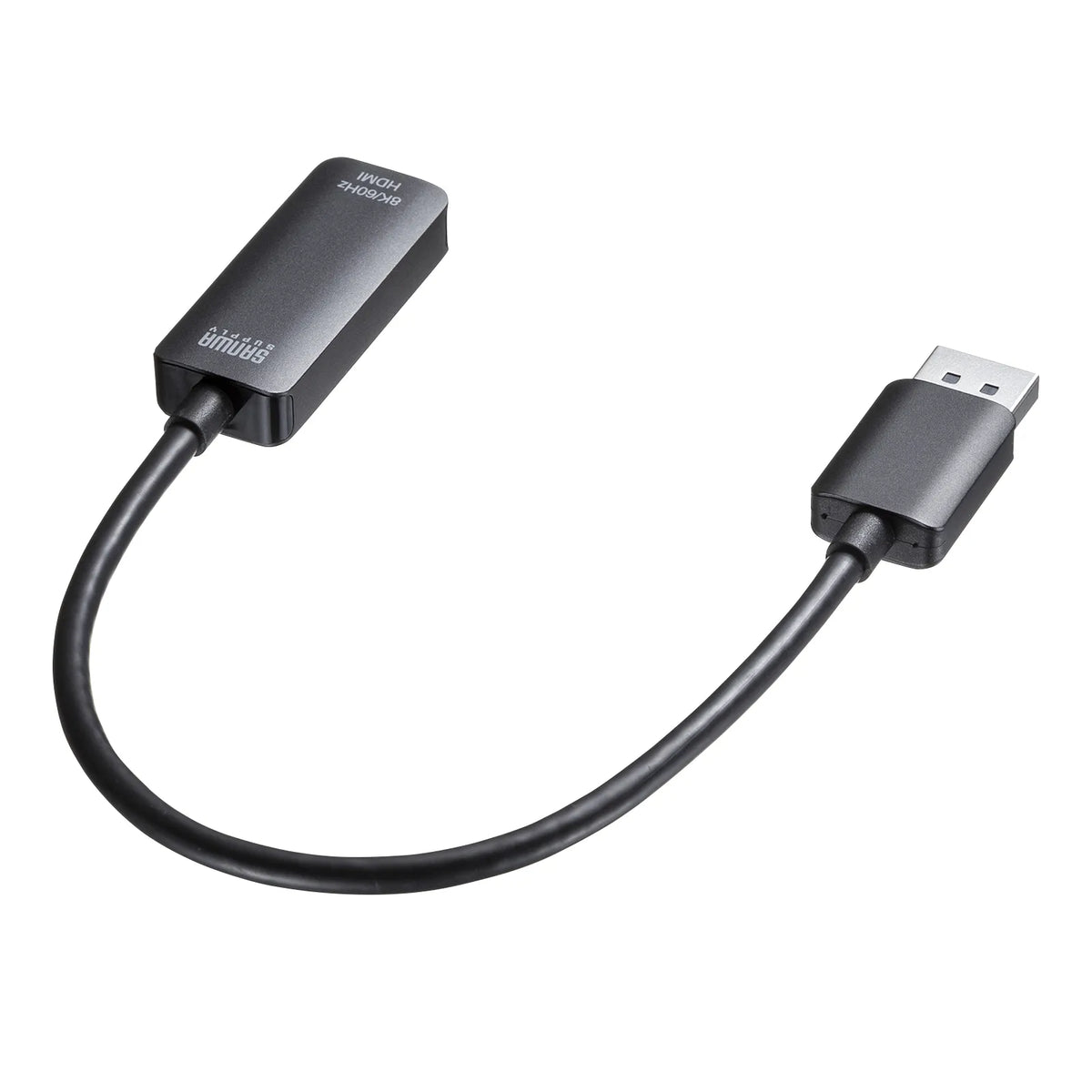

●The integrated short cable makes it easy to handle and allows connection without interference with other interfaces.
●The cable section is triple-shielded with "aluminum shield (twisted pair cable) → aluminum shield → high-density braided shield" to prevent noise interference.
●It uses gold-plated pins that are resistant to rust and have little signal degradation due to aging.
≪Caution≫
※It operates on power from the DisplayPort terminal of the connected device. If the power supply is unstable, it may not work or may operate unstably.
* May not function properly depending on the environment and equipment.
* Operation is not guaranteed with all equipment.
* HDMI cable is not included.
* Cannot connect from a PC or AV equipment with HDMI output to a display or TV with DisplayPort input.

<Video Input Port>
■Port Shape: DisplayPort Male

<Video Output Port>
■Port Shape: HDMI Type A (19pin) Female
■Supported Resolutions: Main supported resolutions/7680x4320 (60Hz, 4:4:4)
3840x2160 (120Hz, 4:4:4)
3840x2160 (60Hz, 4:4:4)
1920x1080p
* The PC, projector or display, and connection cable must all support the same resolution.
■Maximum supported resolution: 8K/60Hz
■HDR: Supported
■HDCP: HDCP1.4, HDCP2.2, HDCP2.3

<Video Standard>
■DisplayPort Standard: Ver1.4
■HDMI Standard: HDMI2.1

<Common Specifications>

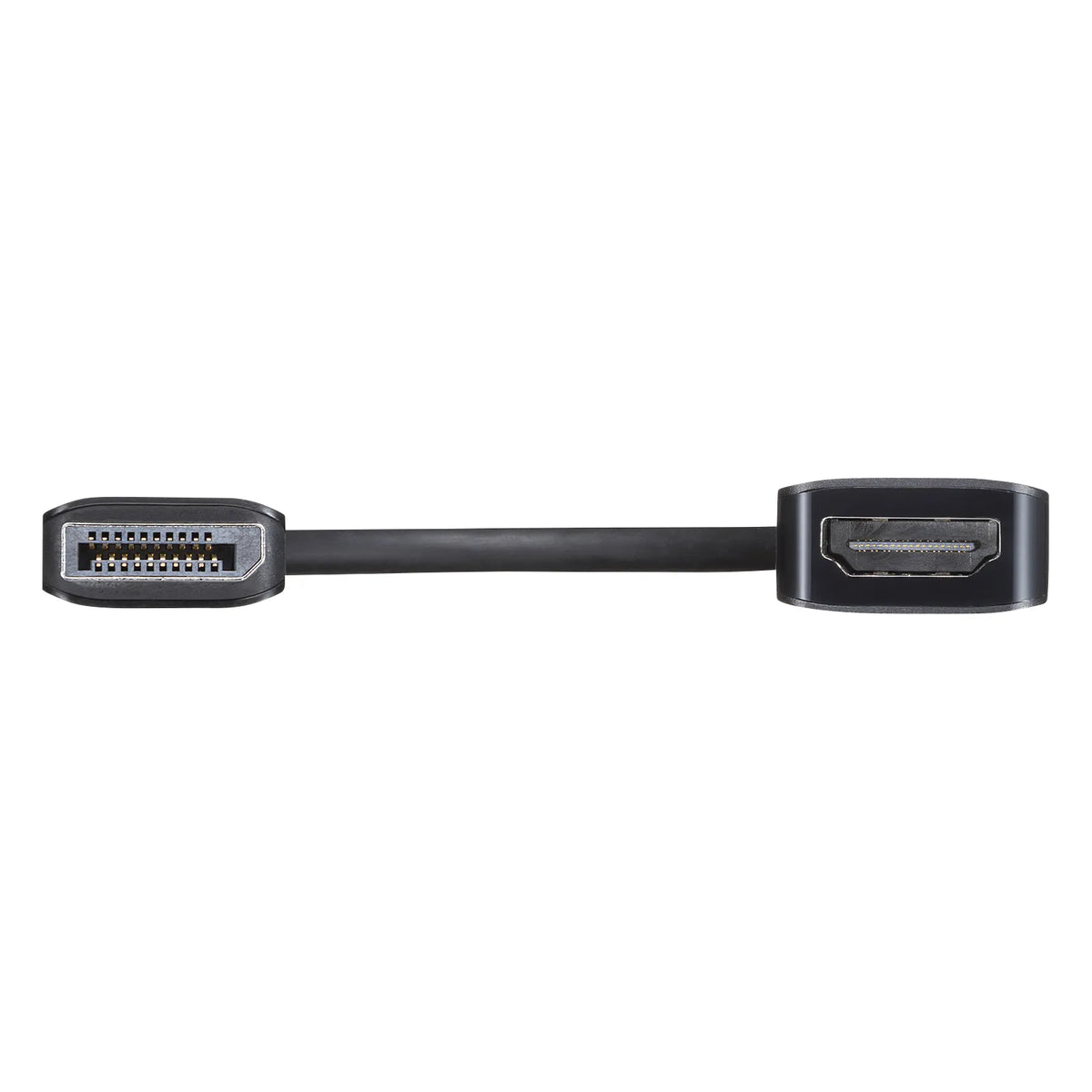

■Connector Shape: DisplayPort Male - HDMI Female
※ACTIVE type
■Cable Length: 0.2m
■Cable Diameter: 4.9mm
■Size: W53.5xD22xH11mm
■Weight: Approx. 32g
■Shielding Method: Triple Shielding
