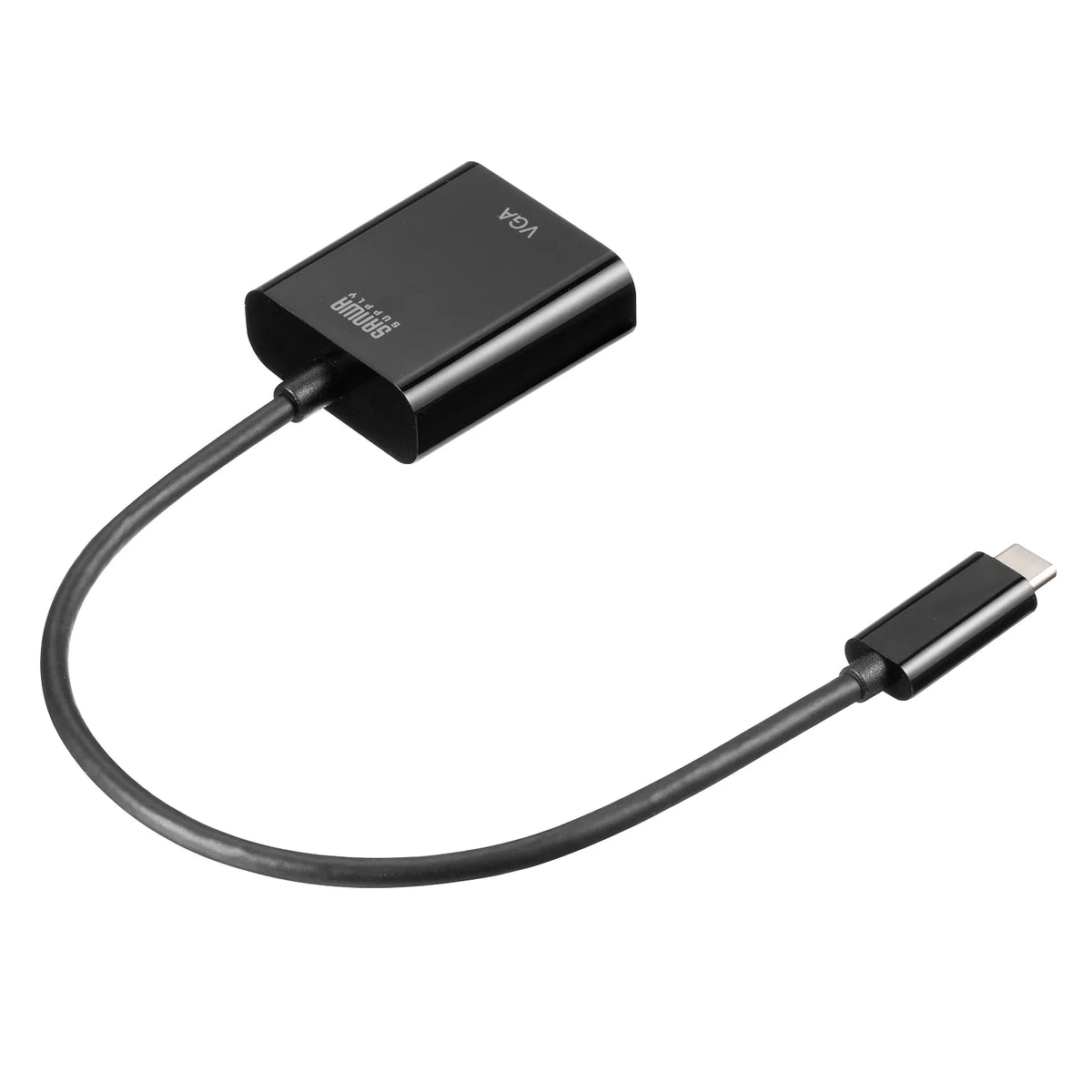

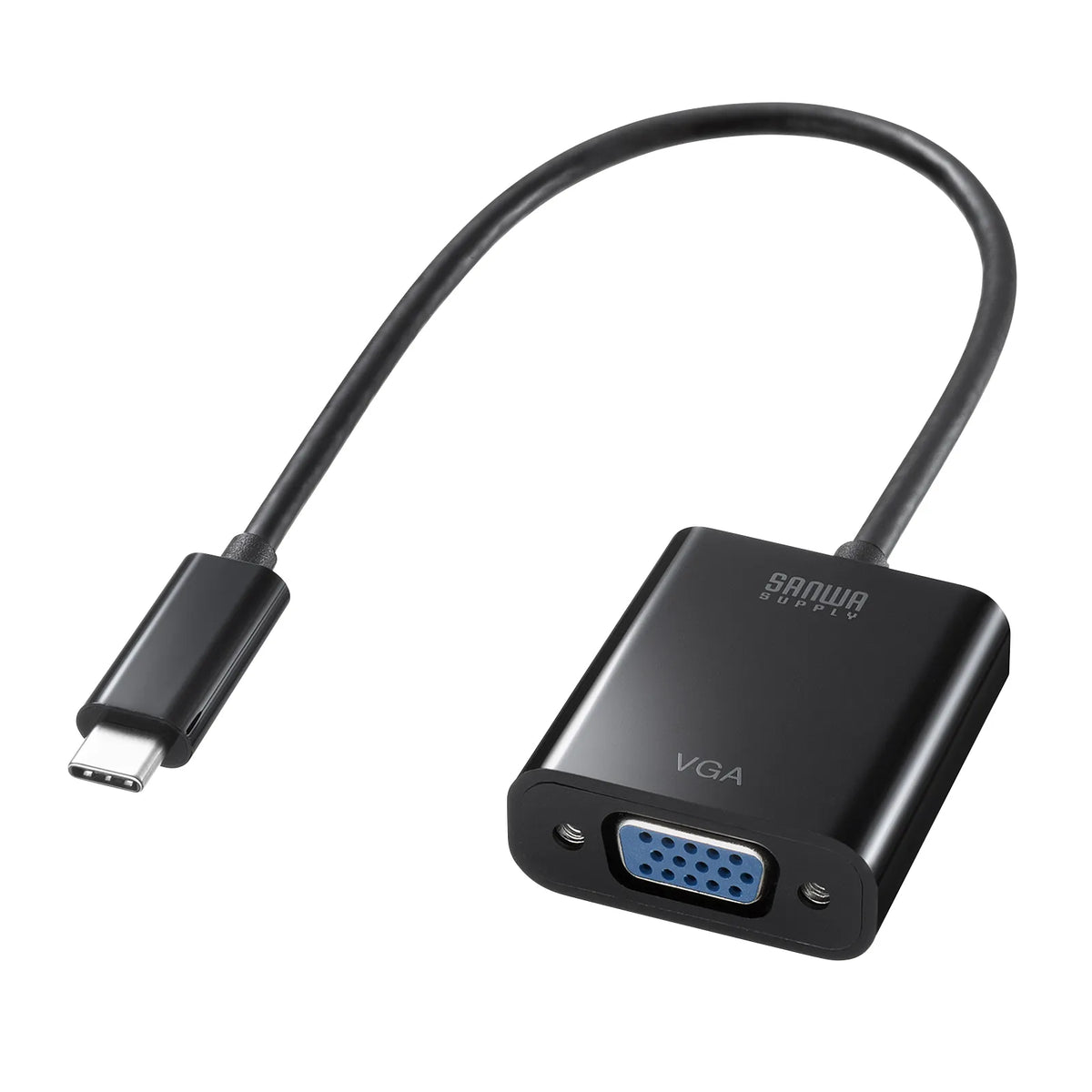

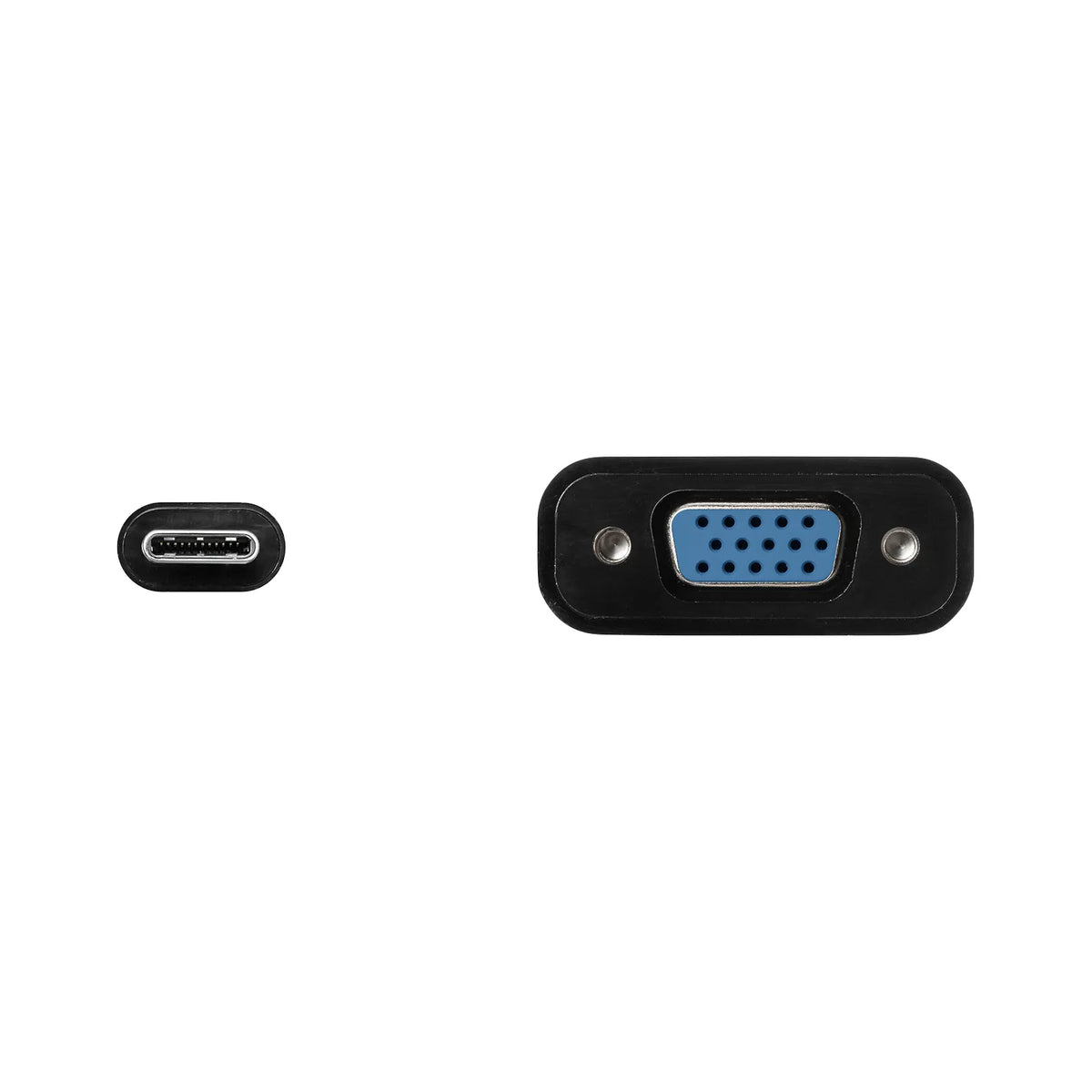

[A conversion adapter that converts a DisplayPort Alternate Mode-compatible Type-C port to VGA (mini D-sub 15-pin) for video output.]

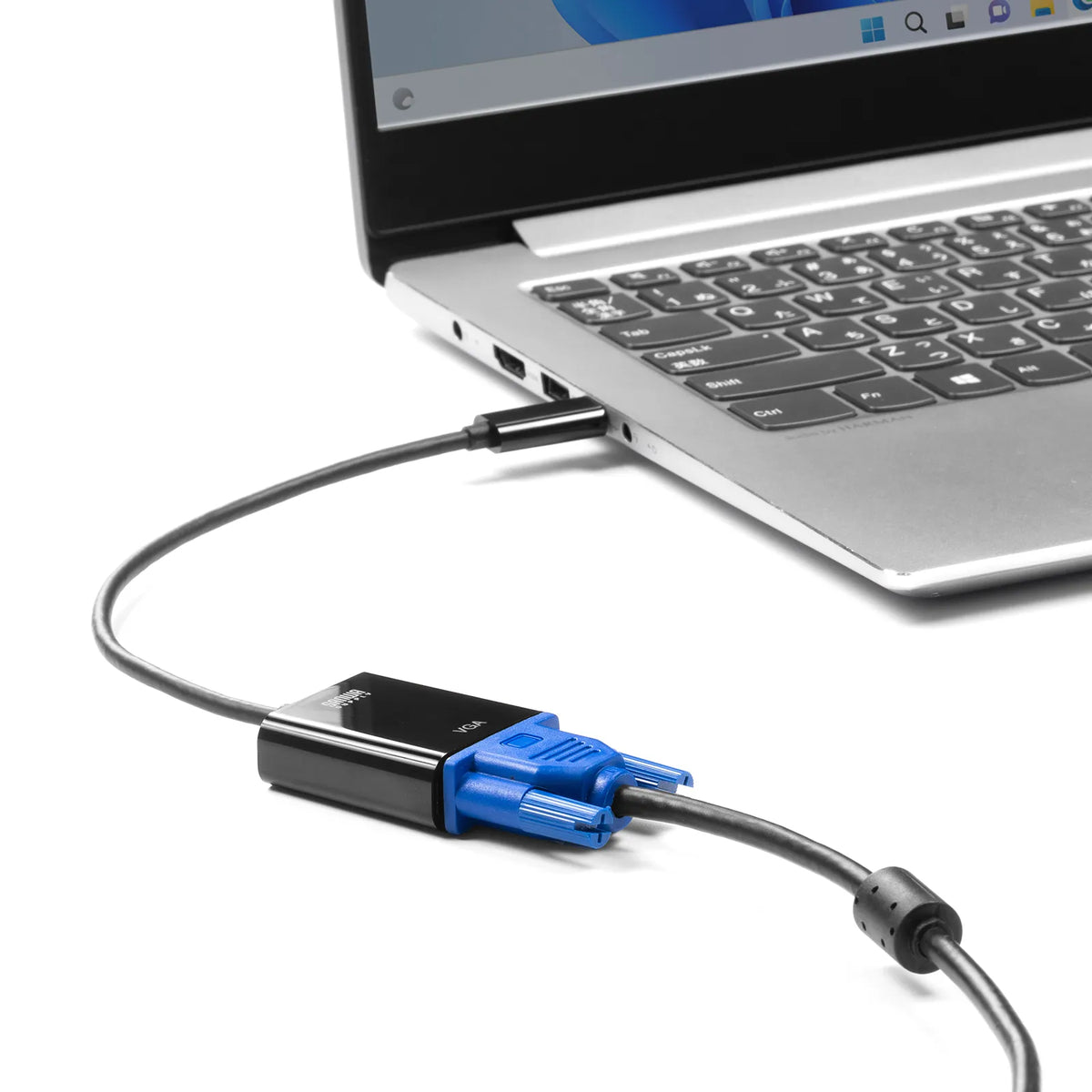

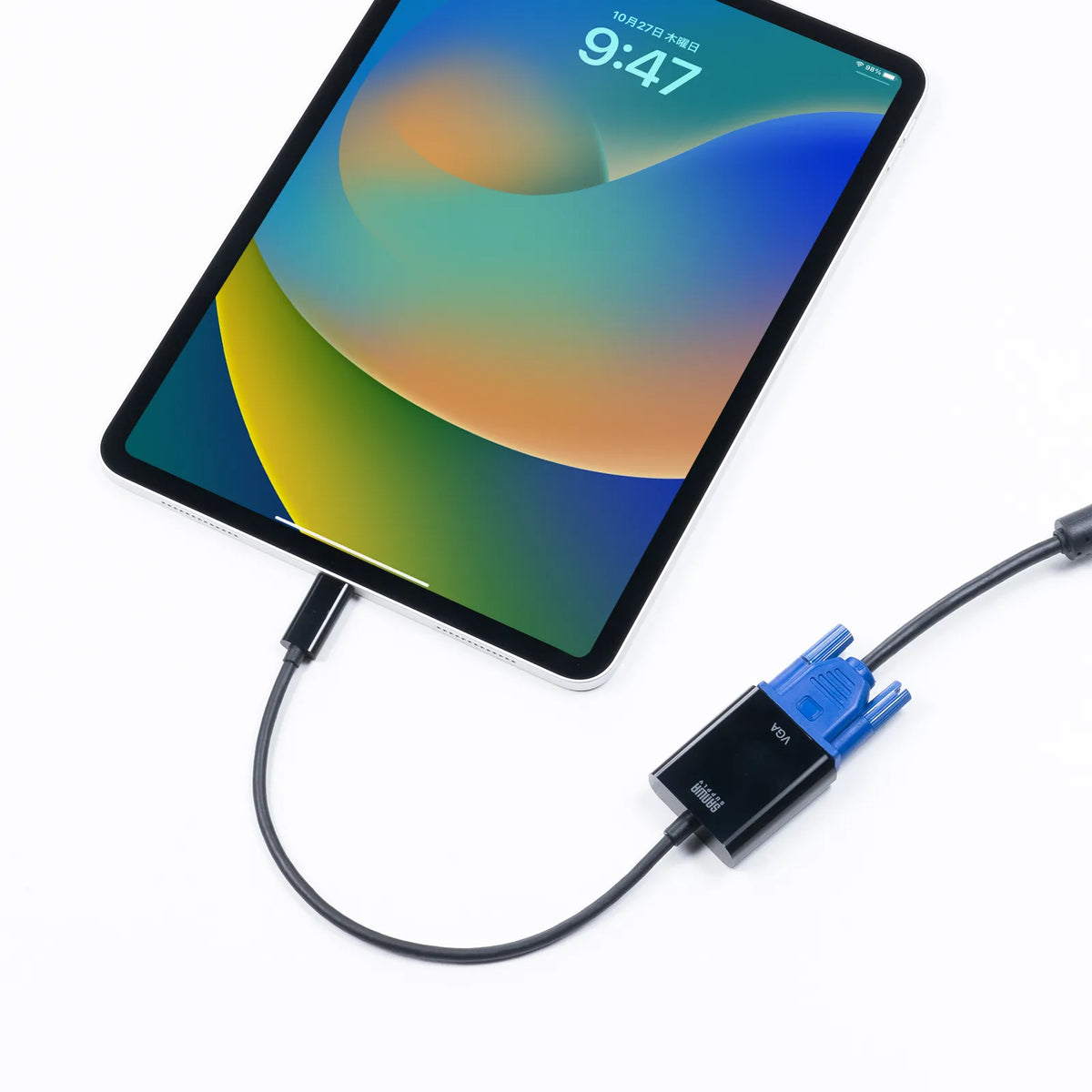

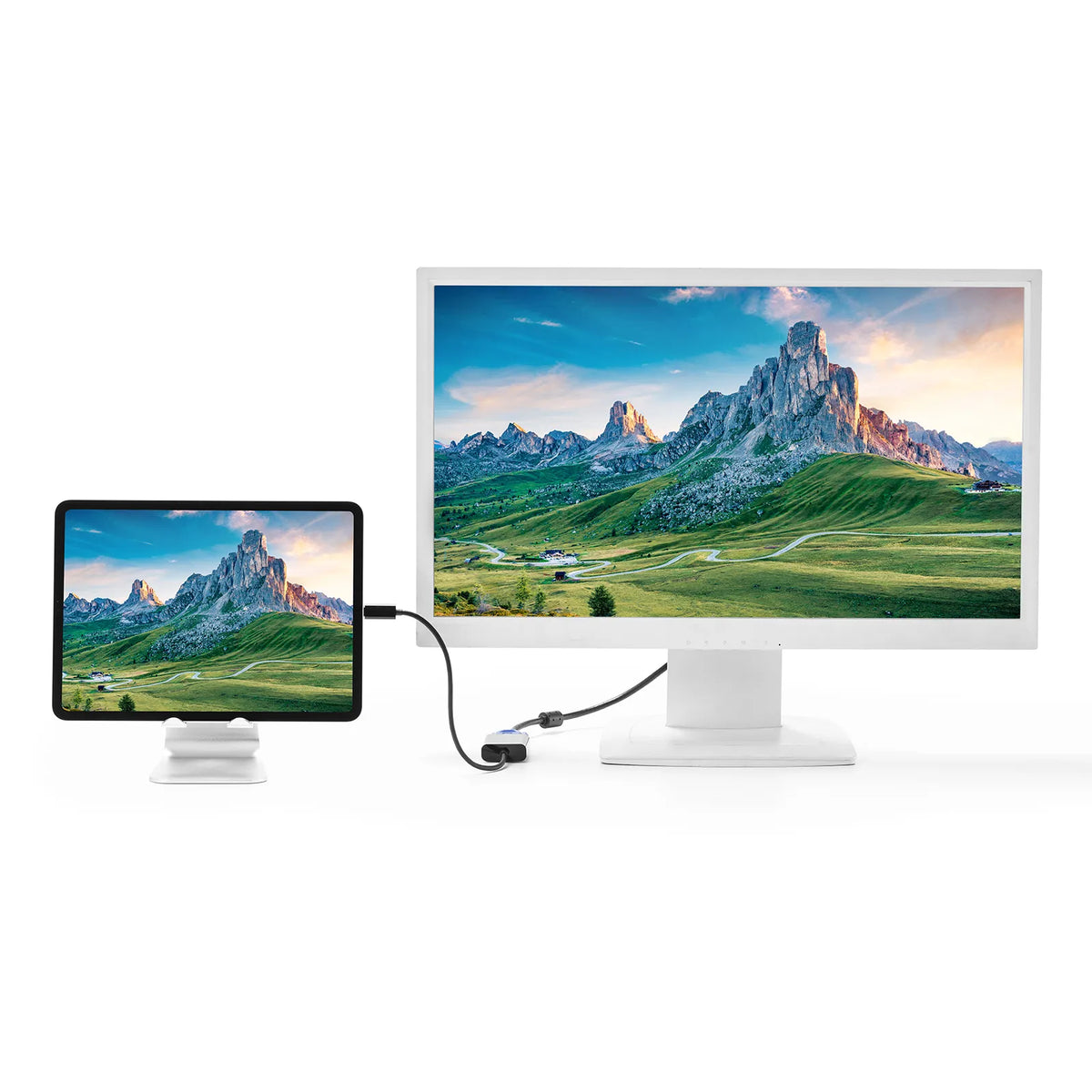

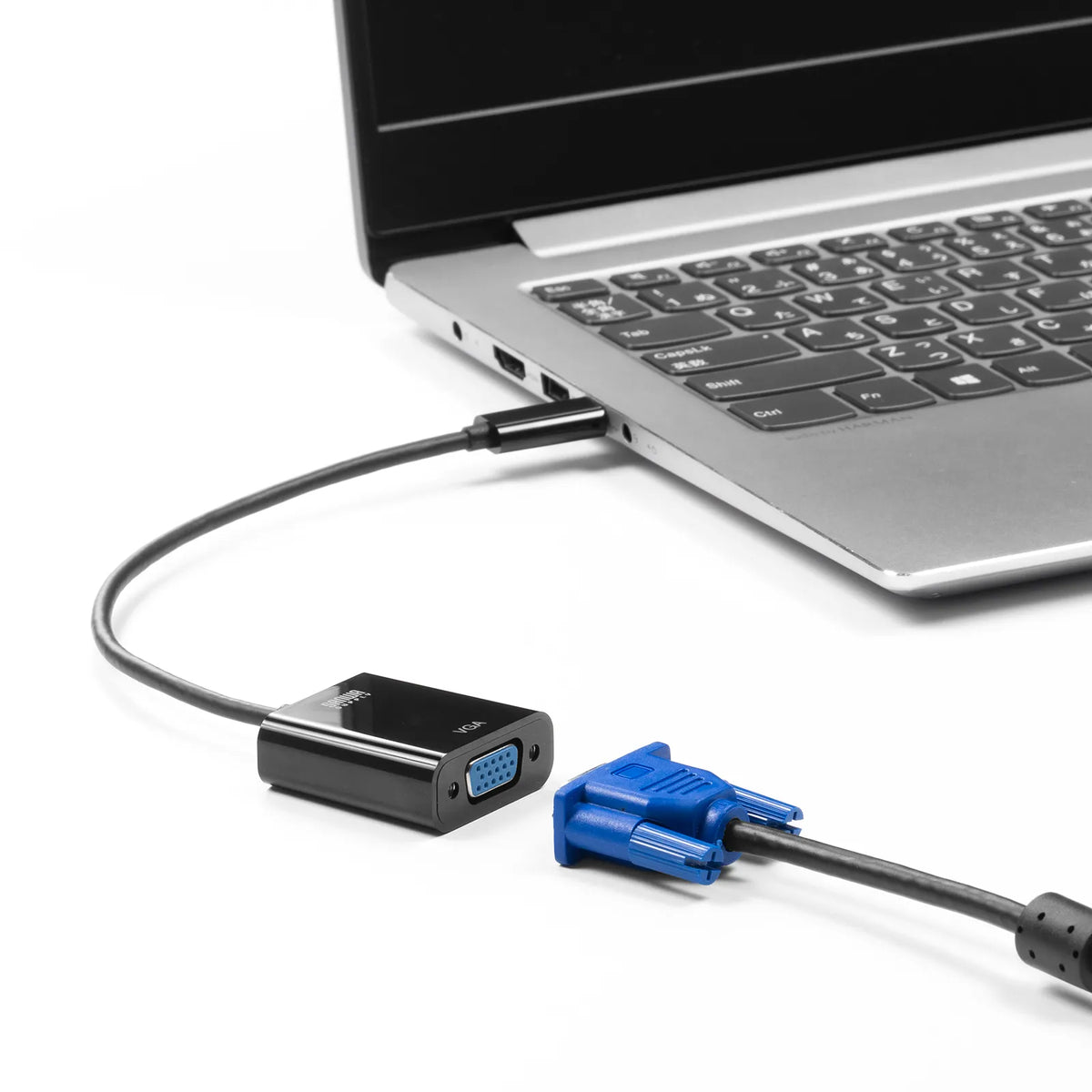

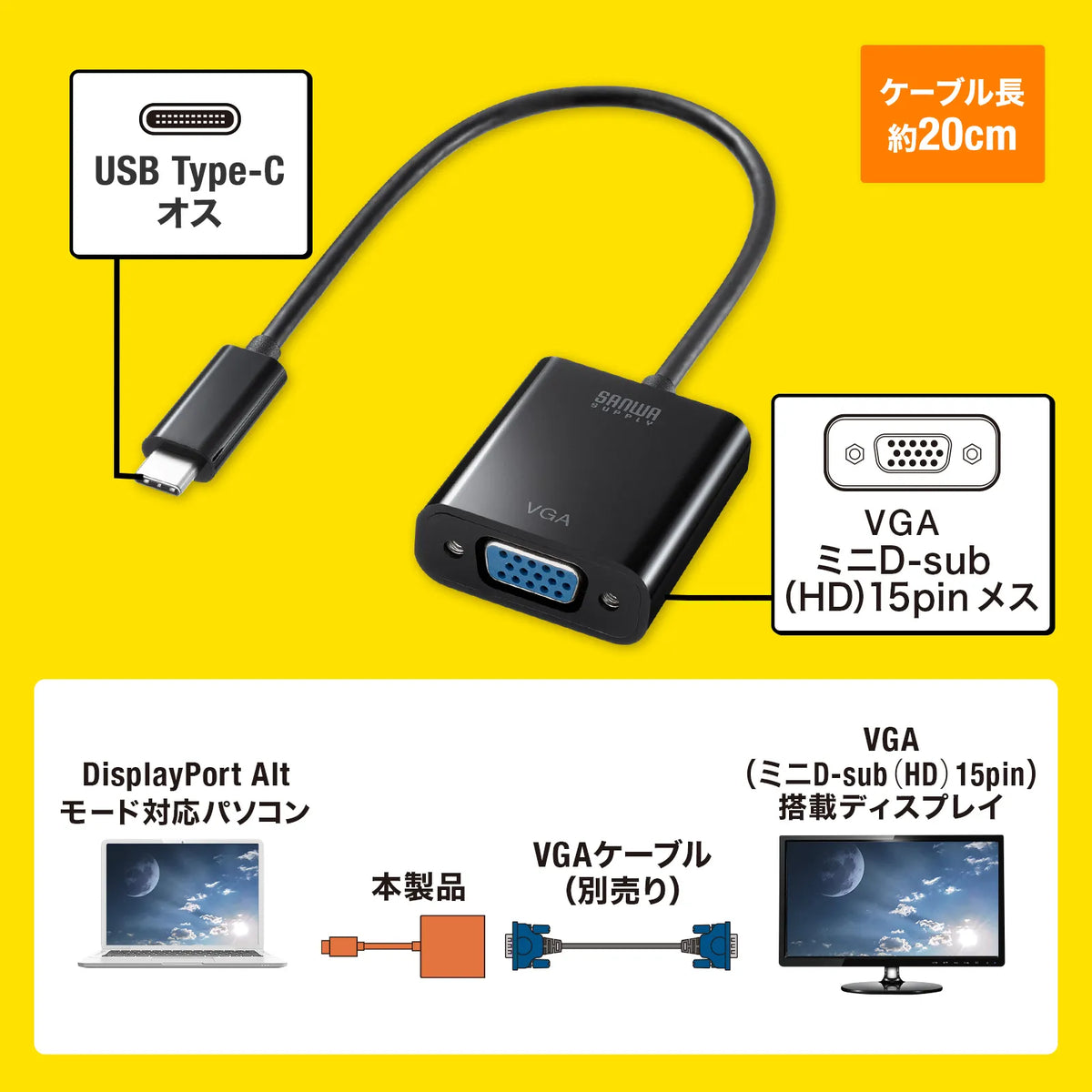

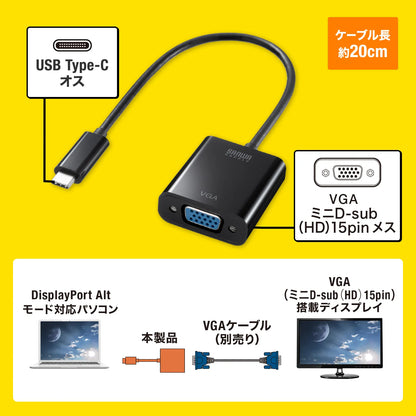

●This adapter converts a USB Type-C port (only Type-C ports that support video output) on a PC or tablet to a VGA (mini D-sub 15-pin) analog video signal. ●Supports DisplayPort Alternate Mode for adding displays via USB Type-C connection, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software. ●Video output is possible at a maximum resolution of 1920x1080/60Hz. *The PC, VGA cable, and display must all support a maximum of 1920x1080 at 60Hz. (Output is an analog signal) ●Audio output is not supported. *To output audio from the display, you need to connect the PC and the display with a separate audio cable.
Caution *This can be used with PCs that have a USB Type-C port and support DisplayPort Alternate Mode. ※Operation is not guaranteed on all devices.
【USB】 ■Interface standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant ■Connector shape (PC connection side): USB Type-C ■Power supply: Bus power
【Common specifications】 ■Adapter type: DPalt mode ■Supported OS Windows: 11, 10, 8.1, 8 ■Supported OS mac: macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15 ■Supported OS: iPadOS: iPadOS 17 to 13 ■Supported Devices: Supported PCs: Windows (DOS/V) PCs, Apple Mac series, iPad Pro, Chrome OS PCs equipped with a standard USB 3.2 Type-C connector and supporting DisplayPort Alt mode *Compatible with devices that have a USB Type-C port (DP alt mode compatible). *Compatible with devices that have a Thunderbolt 3 (USB Type-C) port. *A cable, TV, or display compatible with each resolution is required. *Audio signals are not supported. To output audio from the display, you need to connect the PC and the display separately with an audio cable.

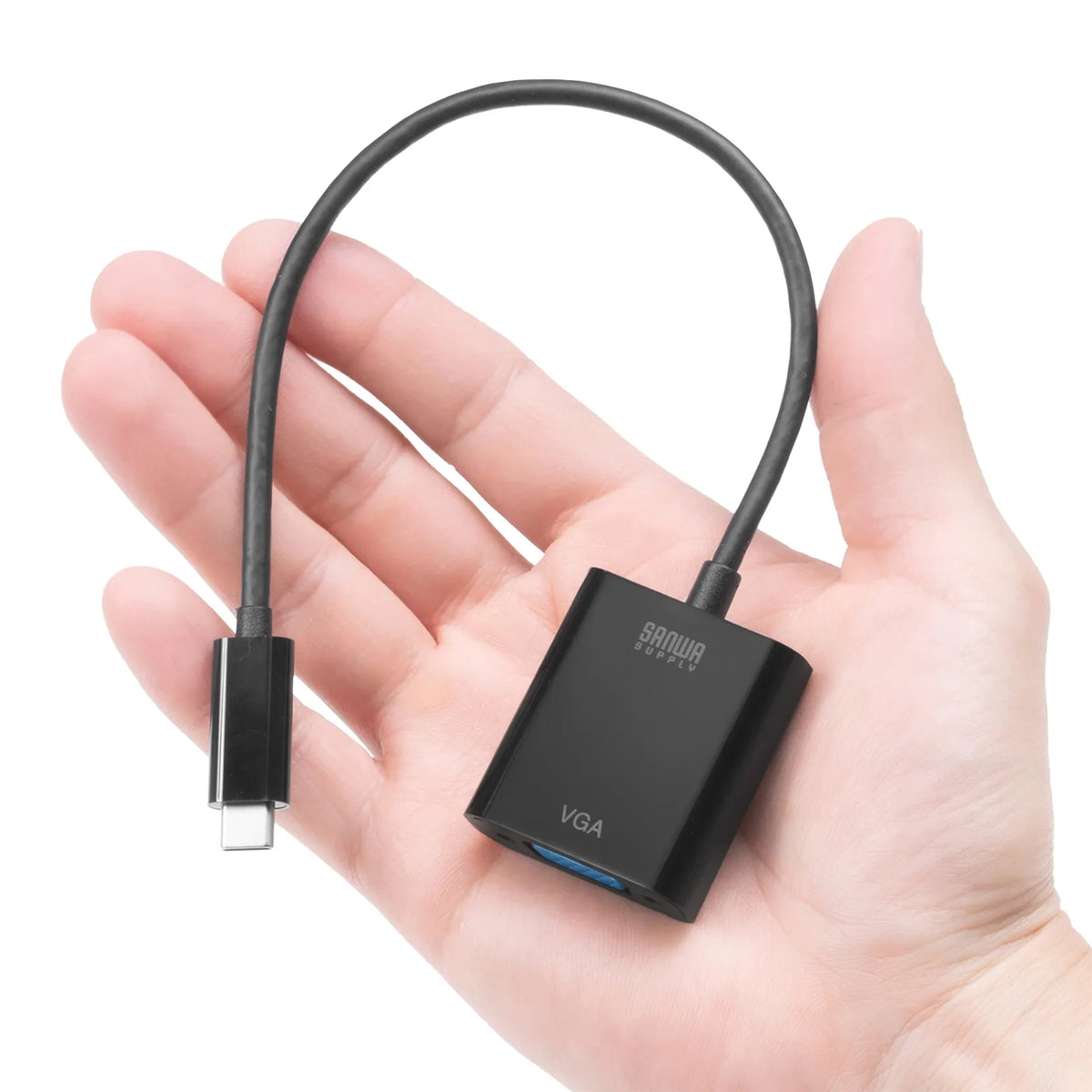

Supported Output Devices: TVs, PC displays, etc. equipped with a standard VGA (mini D-sub 15-pin) input terminal ■Current Consumption: 160mA ■Cable Length: Approx. 0.2m ■Cable Diameter: Approx. 4mm
