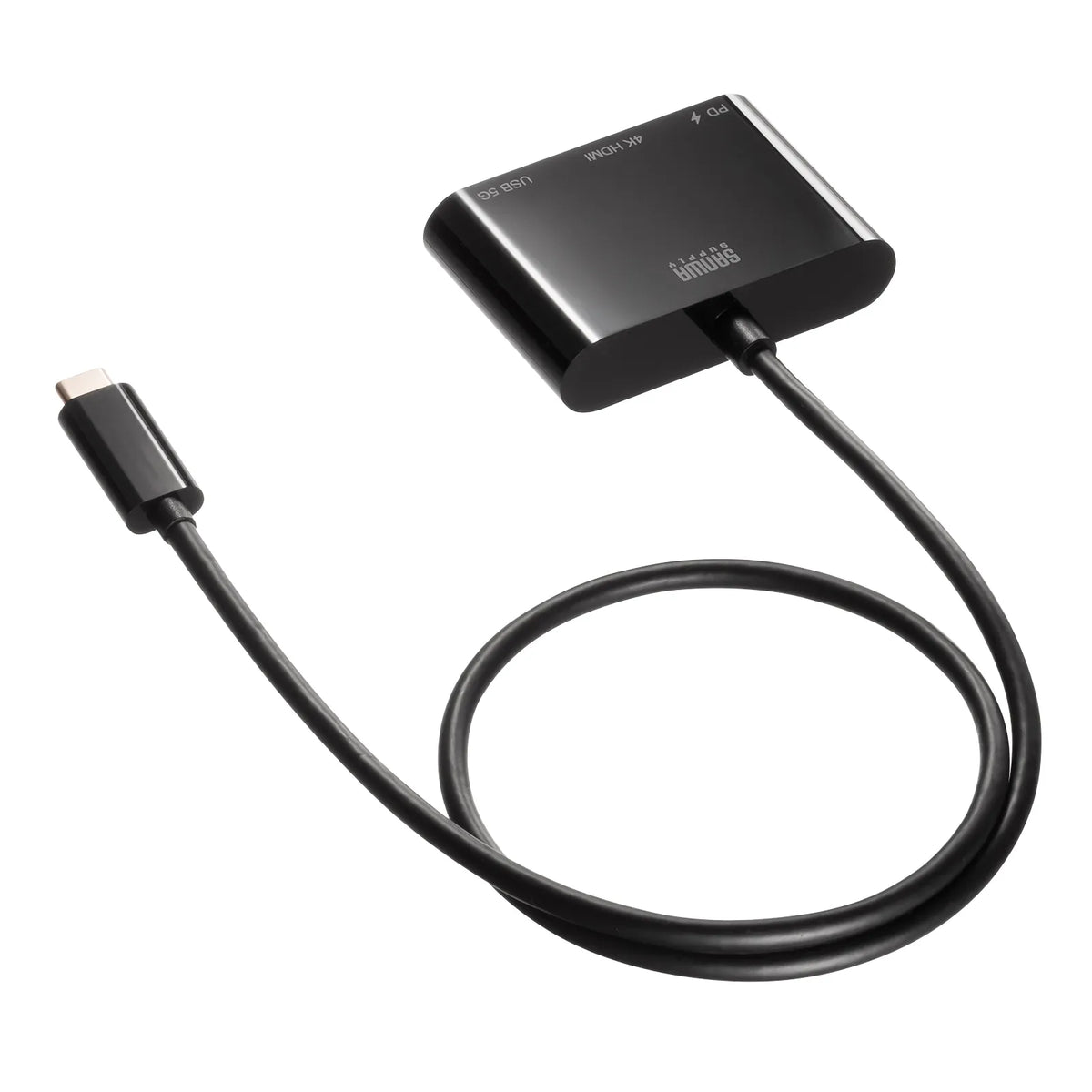

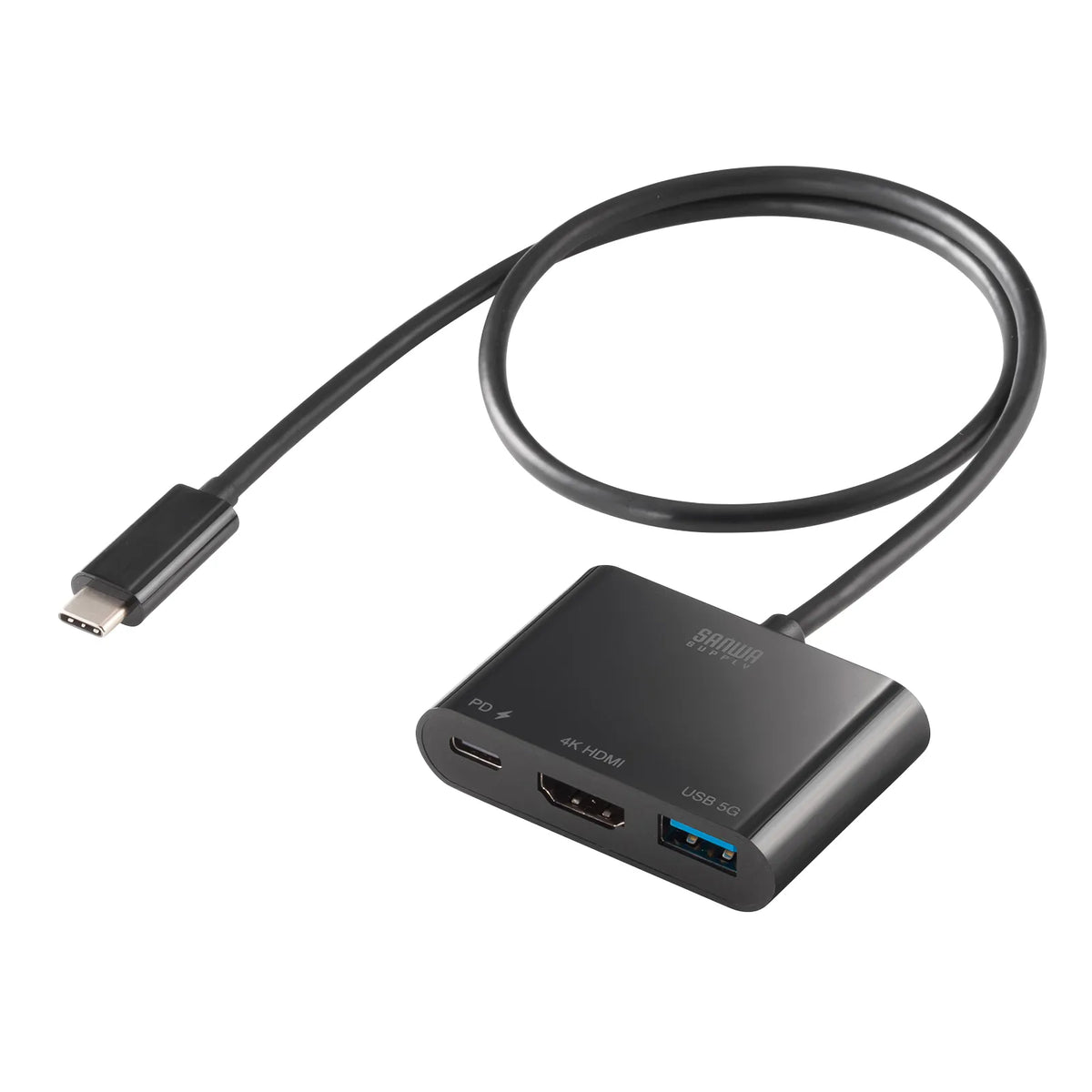

USB Type C to HDMI Conversion Adapter (4K/PD compatible/with USB hub) AD-ALCPHDPD02

[A conversion adapter that converts a Type-C port to HDMI (4K/60Hz) for video output. It supports PD charging and also has one USB A port.]

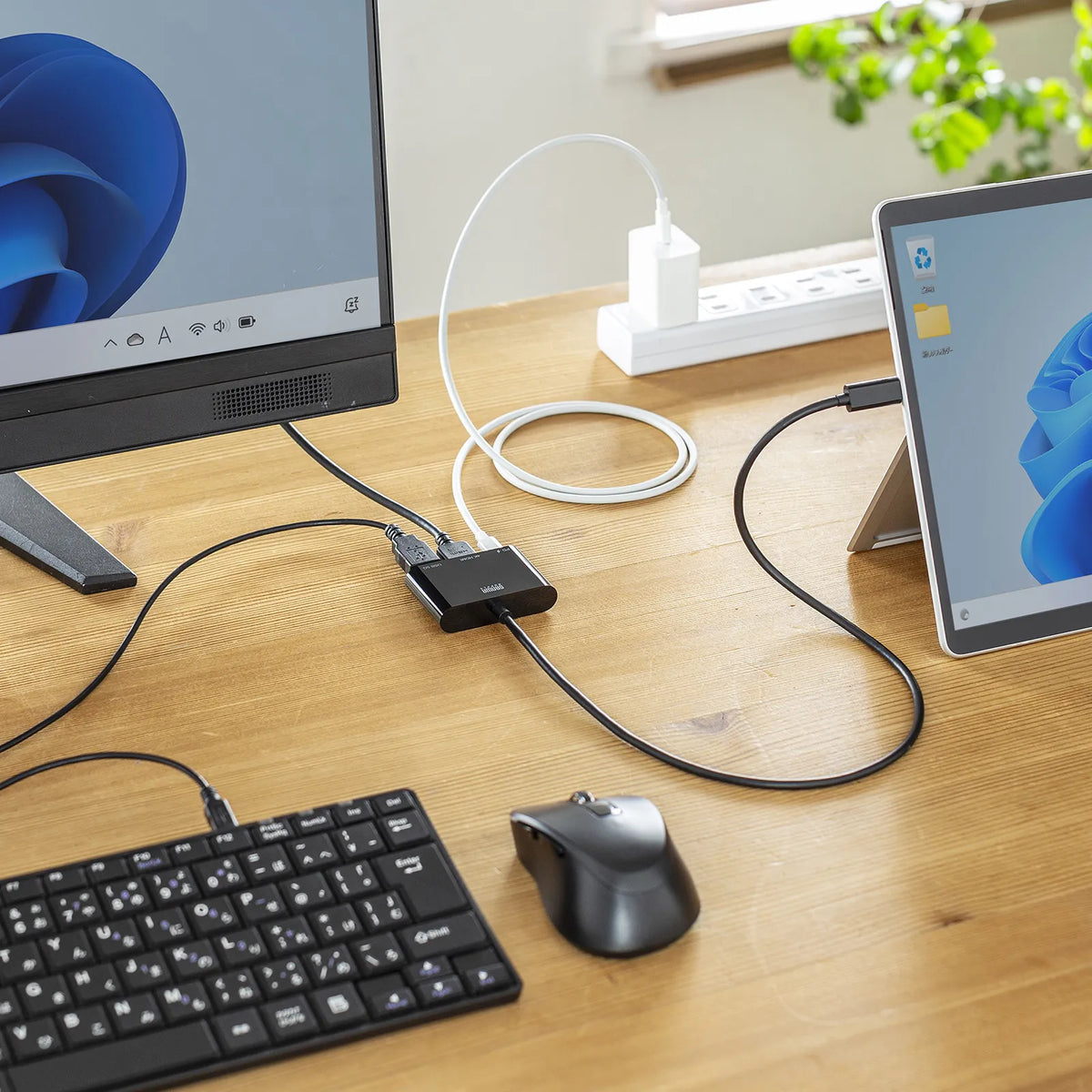

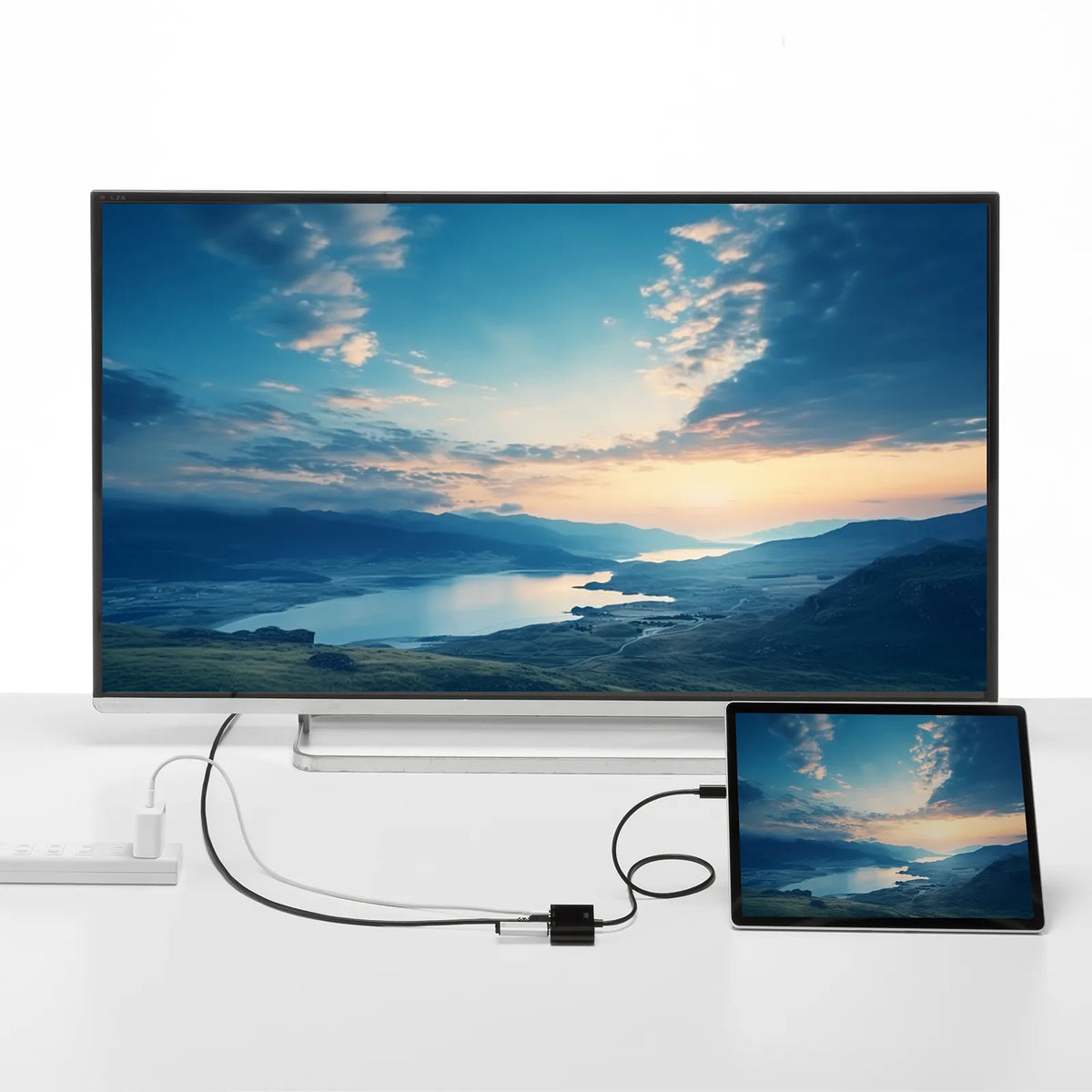

● You can output video and audio from a PC or tablet equipped with a USB Type-C port (only Type-C ports that support video output) to a display or TV with an HDMI input terminal.
● It supports DisplayPort Alternate Mode for adding displays via USB Type-C connection, so you can easily create a multi-display environment (mirror mode/extended mode) without installing any software.
● It supports 4K (3840x2160)/60Hz resolution and can output a beautiful, high-definition HDMI signal.

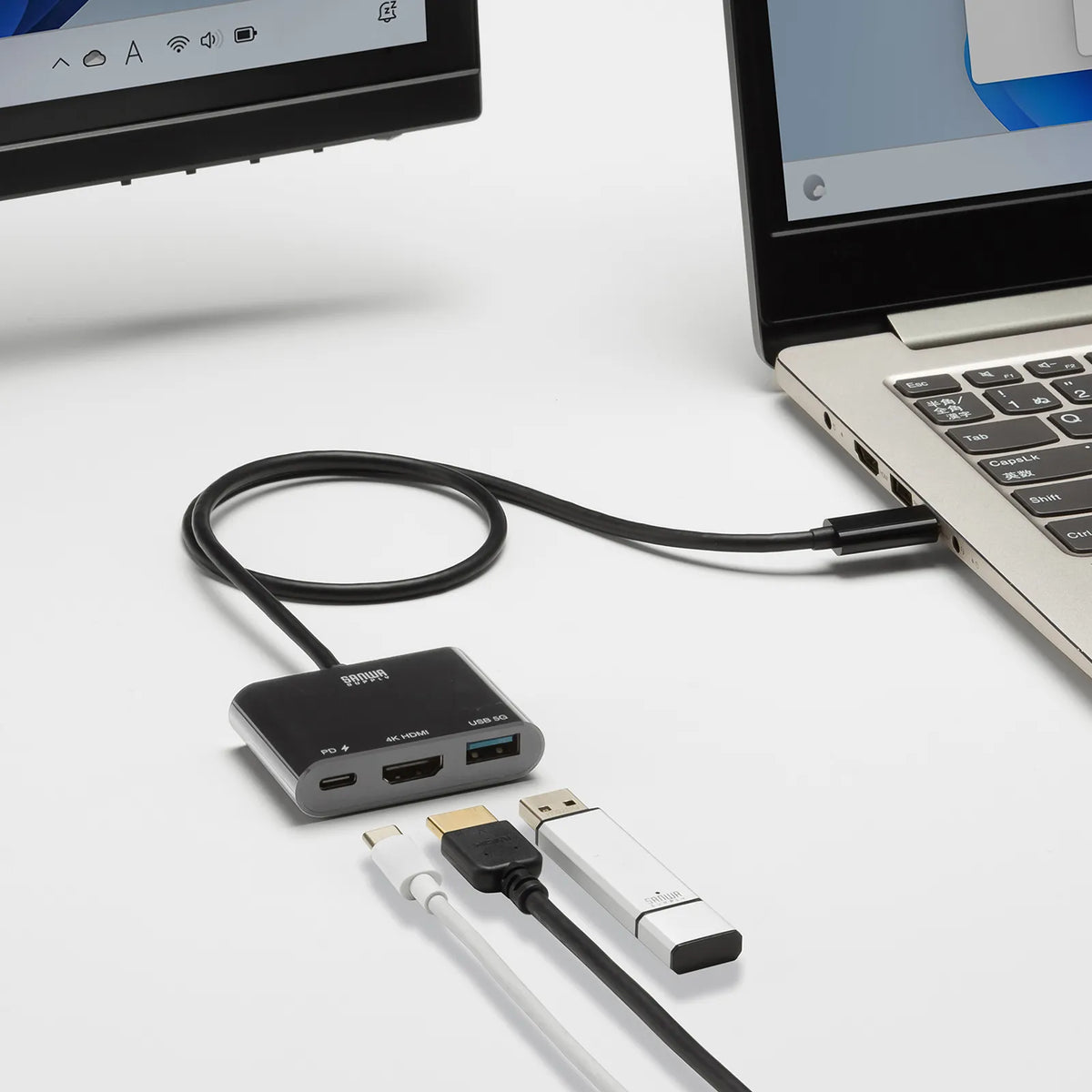

● It has one USB 5Gbps A port so you can connect a USB mouse, USB keyboard, etc.

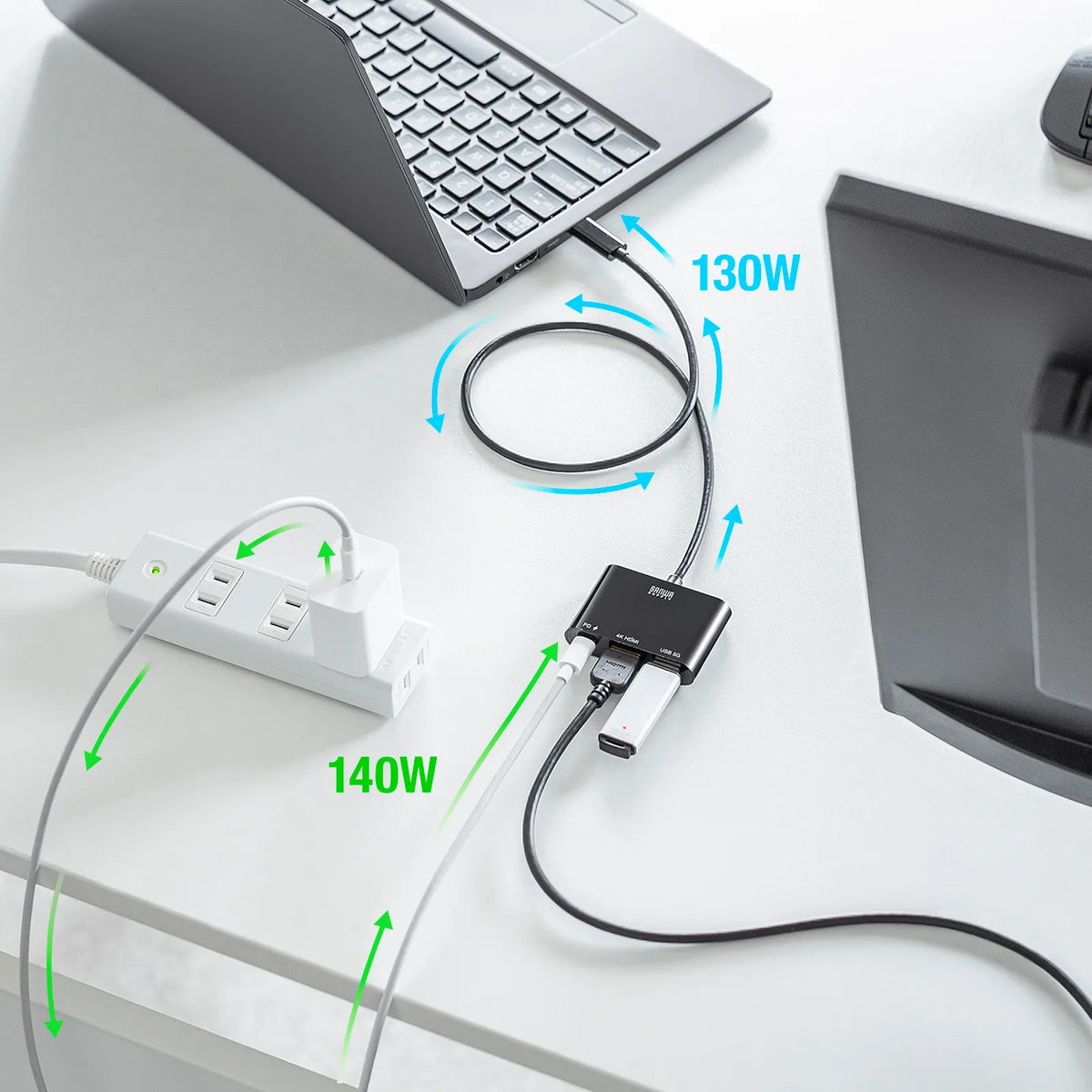

● It has one USB 5Gbps Type-C port so it can be used as a USB hub port. It also supports PD adapter connection (such as the PD adapter included with your PC), so you can charge your PC via this product.
* Supports PD adapters up to 140W.

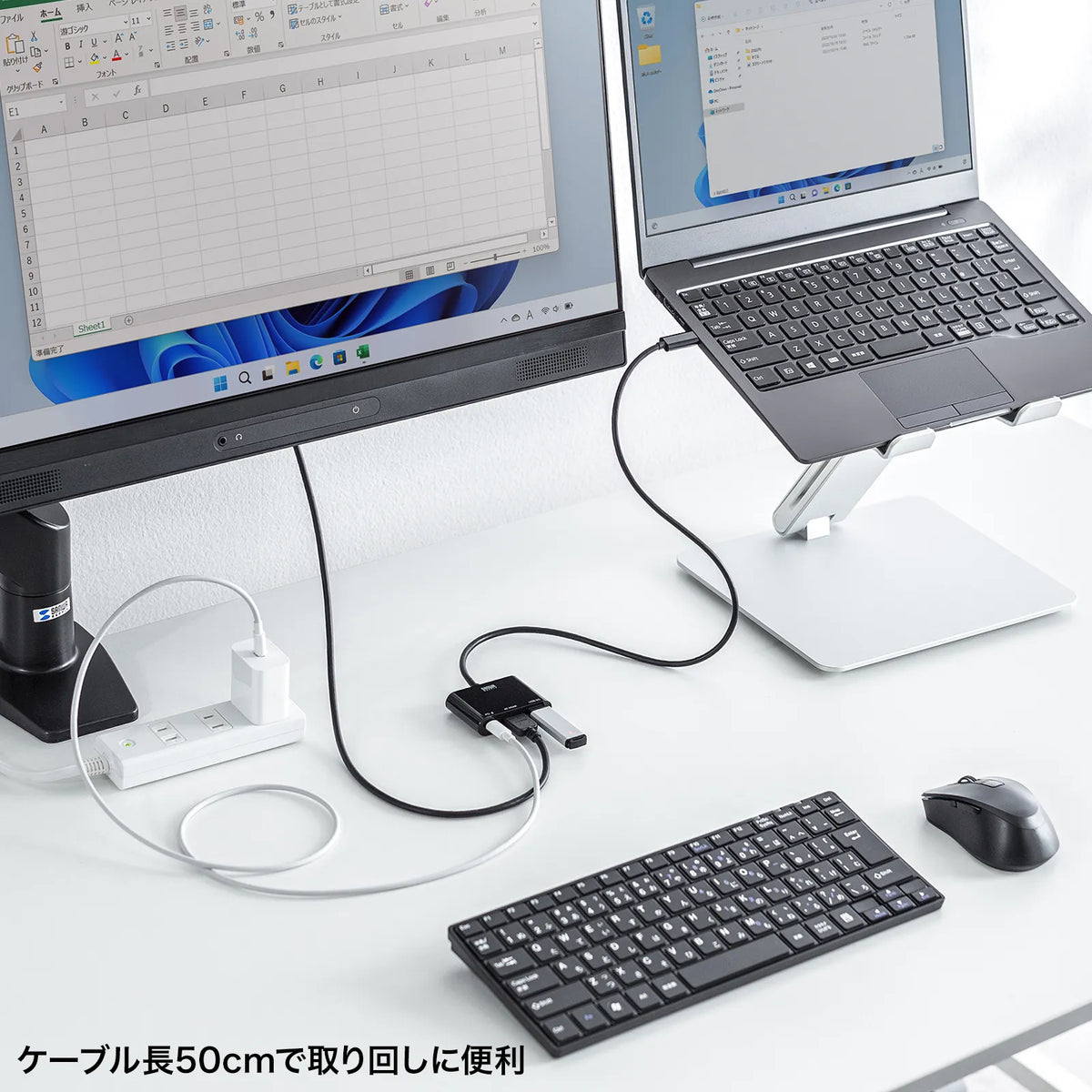

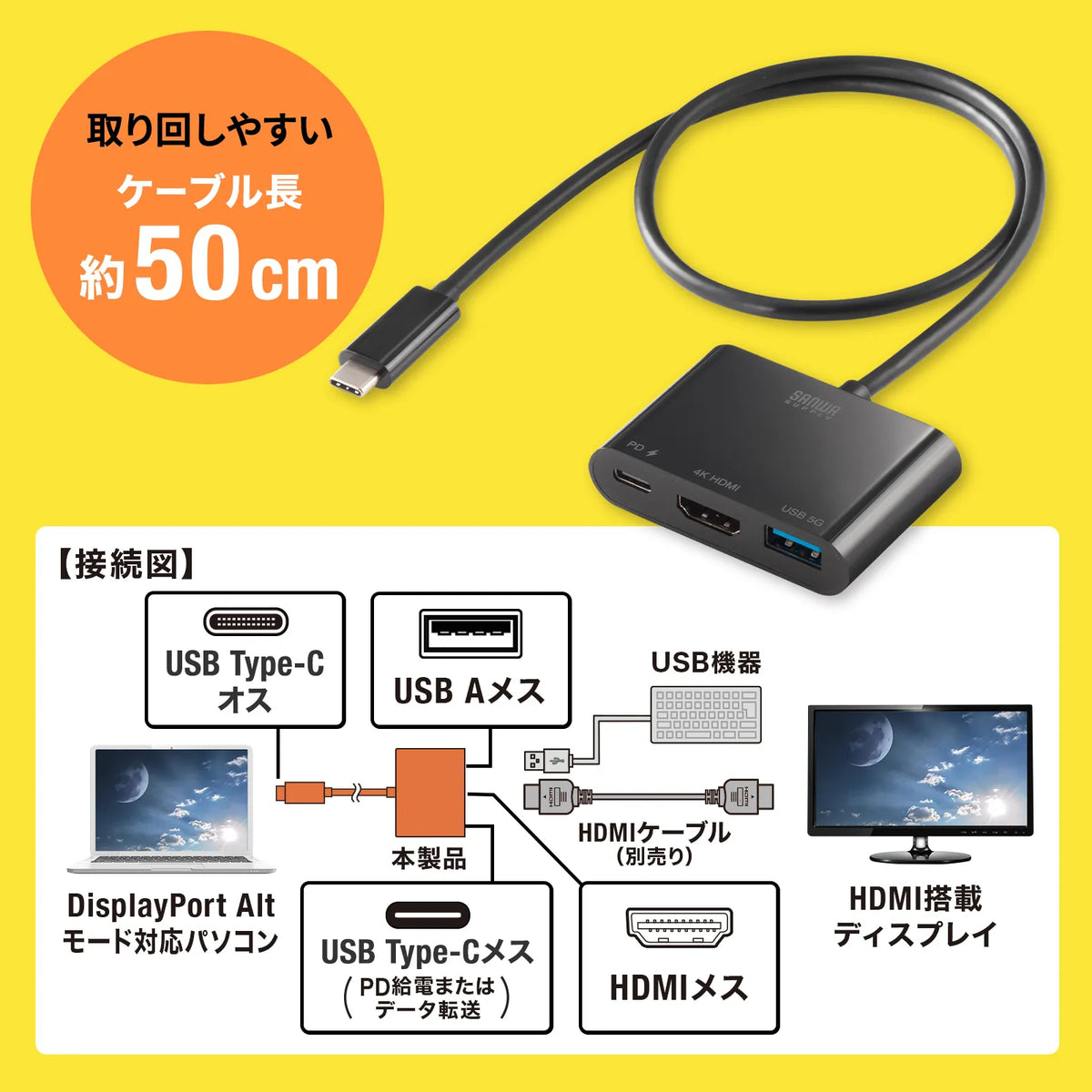

●The 50cm cable length makes connection and handling easy.
≪Please check before purchasing≫
*Can be used with computers equipped with a USB Type-C port and compatible with DisplayPort Alternate Mode.
*When charging USB PD compatible devices, please prepare a separate USB PD adapter.
*The maximum transfer speed of this product is USB 5Gbps (theoretical value).
*Although this product is compatible with USB 5Gbps, it does not guarantee a transfer speed of USB 5Gbps (theoretical value).
*Although USB 2.0 standard devices can be connected to the USB port of this product, the transfer speed will be the transfer speed of USB 2.0.
*Although this product is a USB hub, it does not guarantee connection and operation with all USB devices.
*Does not support USB Type-C connected displays.
*Can also be used as self-powered by using the PD compatible AC adapter included with the computer.
*Not compatible with Nintendo Switch(TM).

【USB】
■Interface standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant

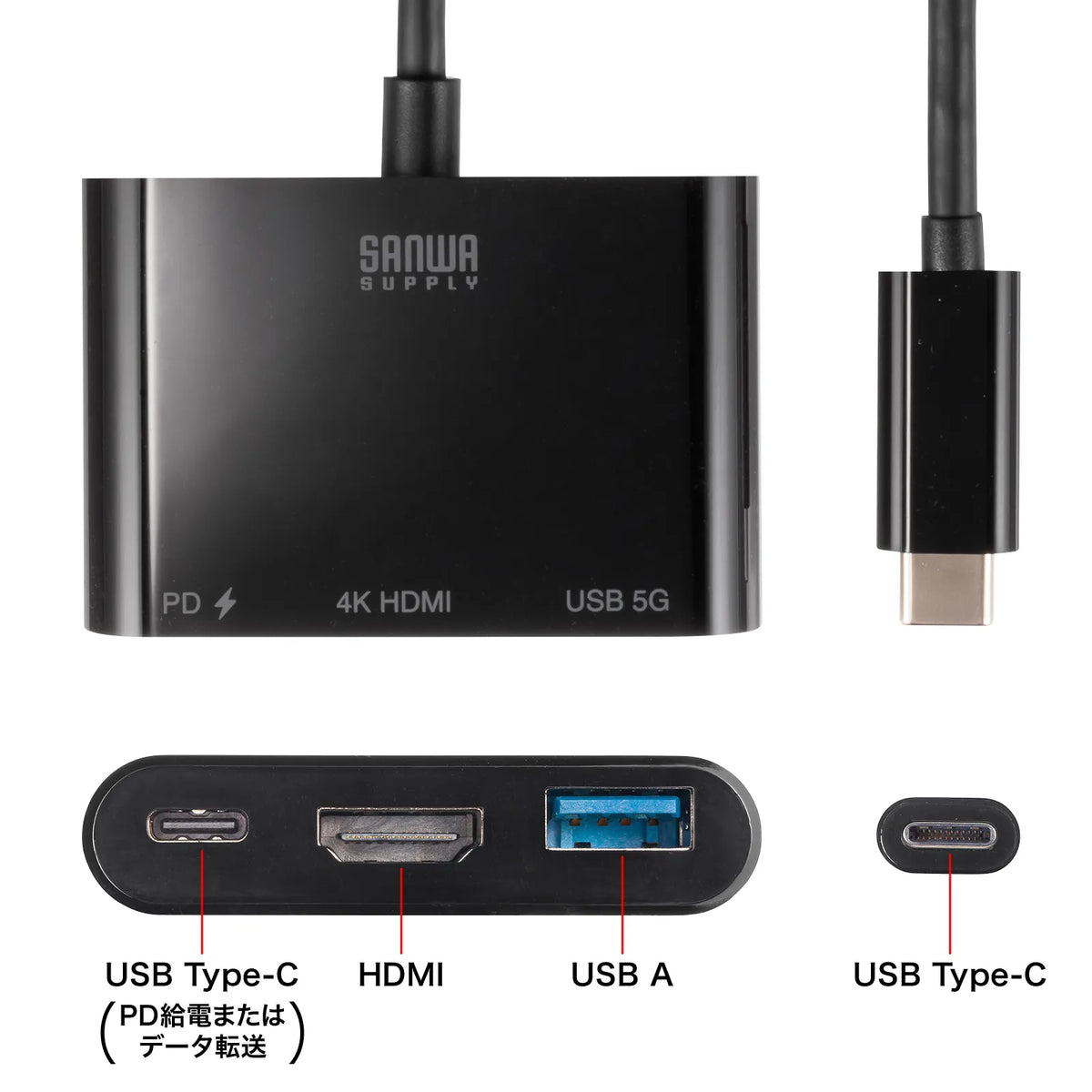

■Connector shape (downstream):
USB 5Gbps A connector female x1
USB 5Gbps Type-C connector female x1
■Connector shape (upstream): USB 5Gbps Type-C connector male
■Connector shape (PC connection side): USB Type-C
■Power supply: Supports both self-power and bus-power
*Can also be used as self-powered by using the PD-compatible AC adapter included with the PC.
*When using an AC adapter of 45W or less, the PC may not enter charging mode.
USB 5Gbps Type-C connector (for PC connection) / USB PD compatible (maximum 130W)
USB 5Gbps C connector / maximum 1500mA per port
USB 5Gbps A connector / maximum 1500mA per port
Total maximum 3000mA
*When connected via bus power, if the current consumption of the connected device exceeds the current supplied by this product, it may not function properly.
■Number of ports (total): 2 ports

【PD】
■PD compatible: Supported
PD maximum input: 140W
PD maximum output: 130W

【Video output port】
■Port shape: HDMI Type A (19pin) female
■Supported resolution: Maximum display resolution: 4K/60Hz
*For 4K/60Hz output, the PC's Type-C port must support DP1.4.
*The PC, projector or display, and connection cable must all support the same resolution.
■Maximum supported resolution: 4K/60Hz
■HDR support: Supported
■HDCP: HDCP1.4, HDCP2.2, HDCP2.3

【Video Standards】
■HDMI Standard: HDMI2.0

【Common Specifications】
■Supported OS Windows: 11, 10
■Supported OS Mac: macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15
■Supported OS iPadOS: iPadOS 17 to 13
■Supported OS ChromeOS: ChromeOS
■Supported Devices:
Supported PCs:
Windows (DOS/V) PCs, Apple Mac series, iPads, Chrome OS PCs equipped with a standard USB Type-C connector and supporting DisplayPort Alt mode
※Nintendo Not compatible with Switch

Compatible output devices:
TVs, computer displays, etc. that have a standard HDMI input terminal

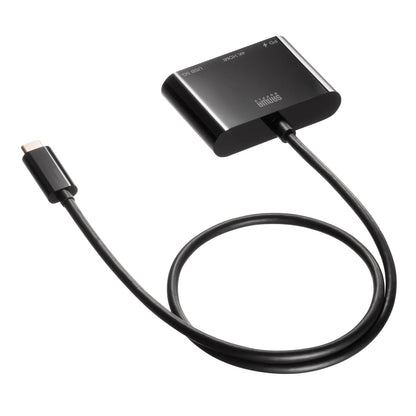

■Cable length: Approx. 0.5m
■Cable diameter: Approx. 4.2mm

【Other specifications】
■Shielding method: Triple shielding
