SANWA SUPPLY

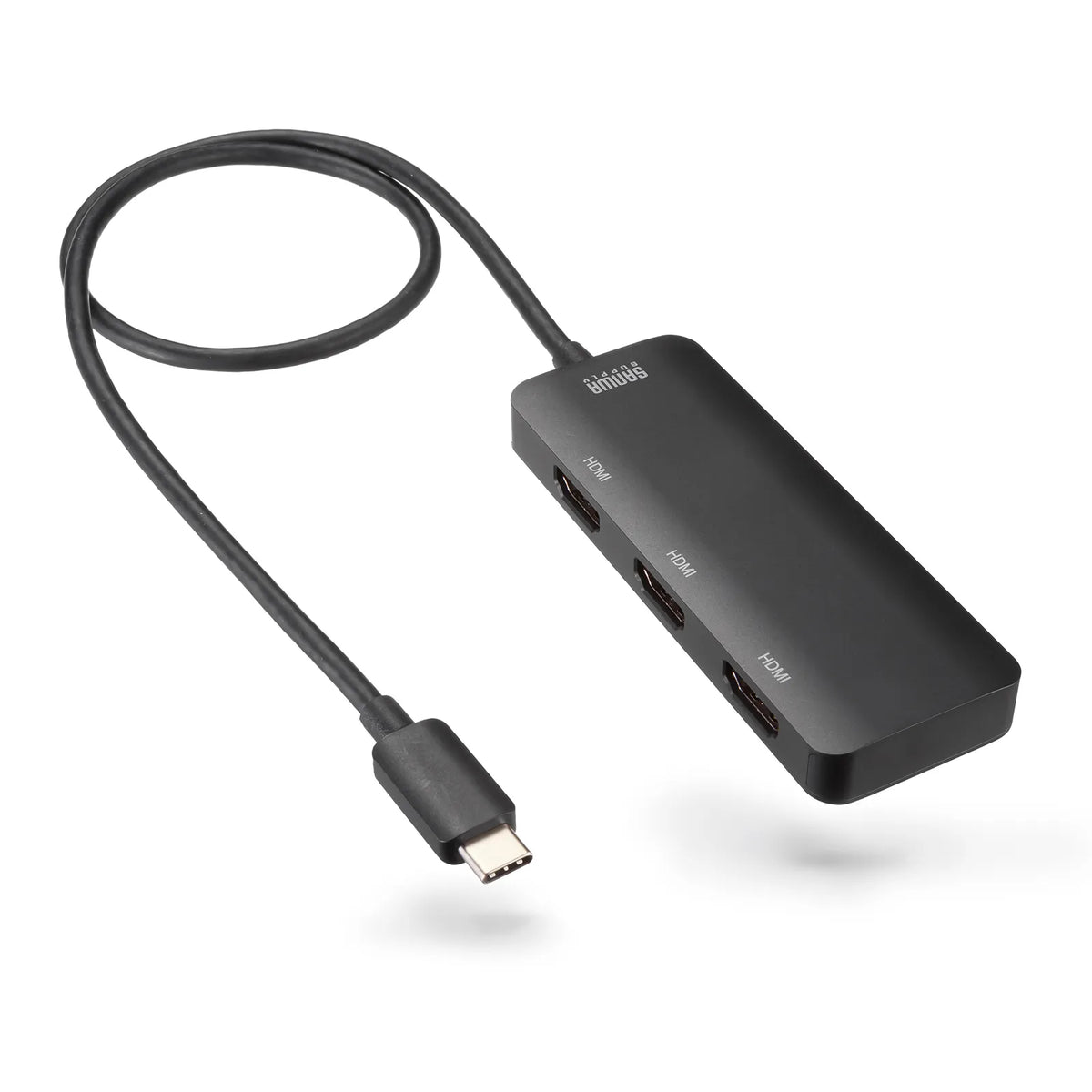

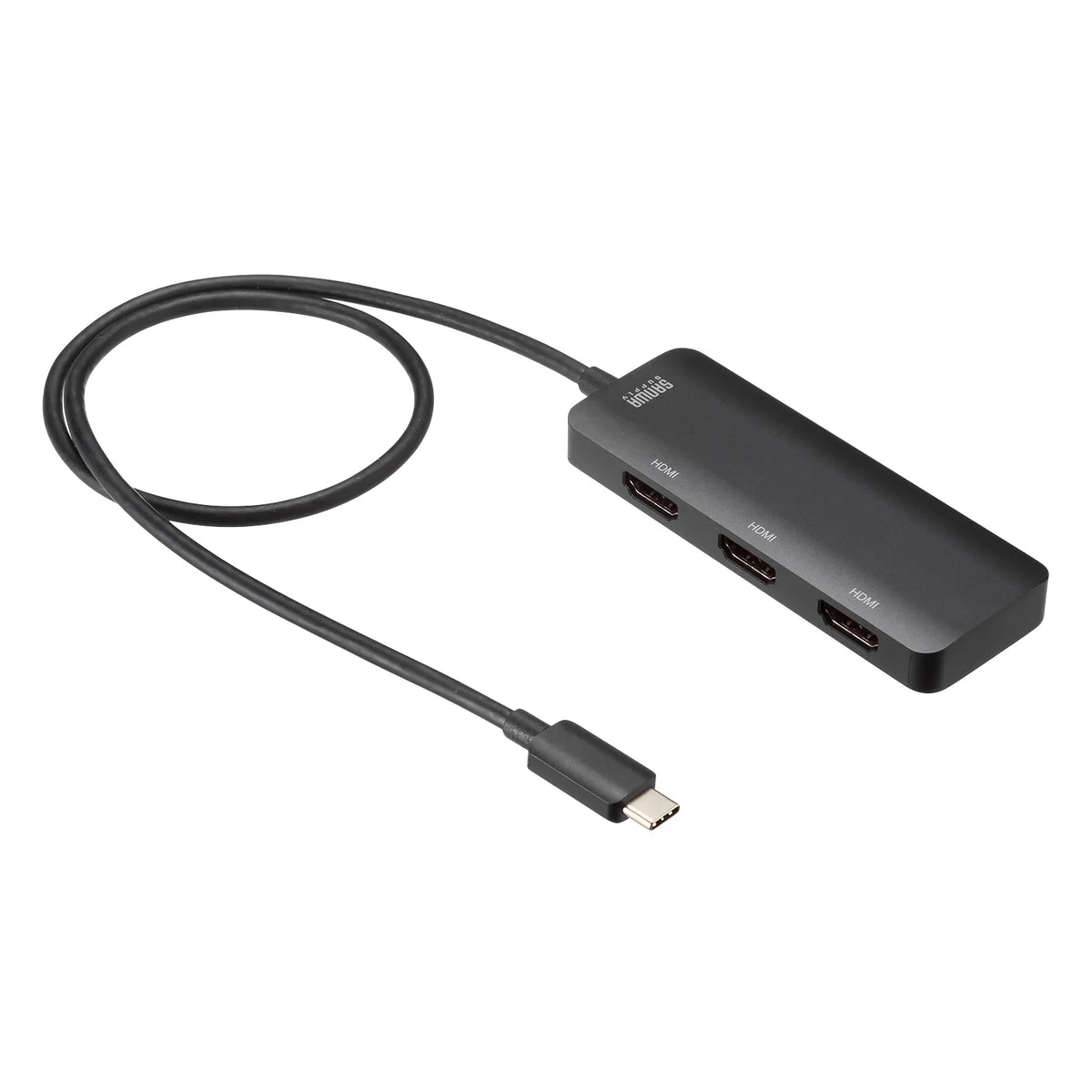

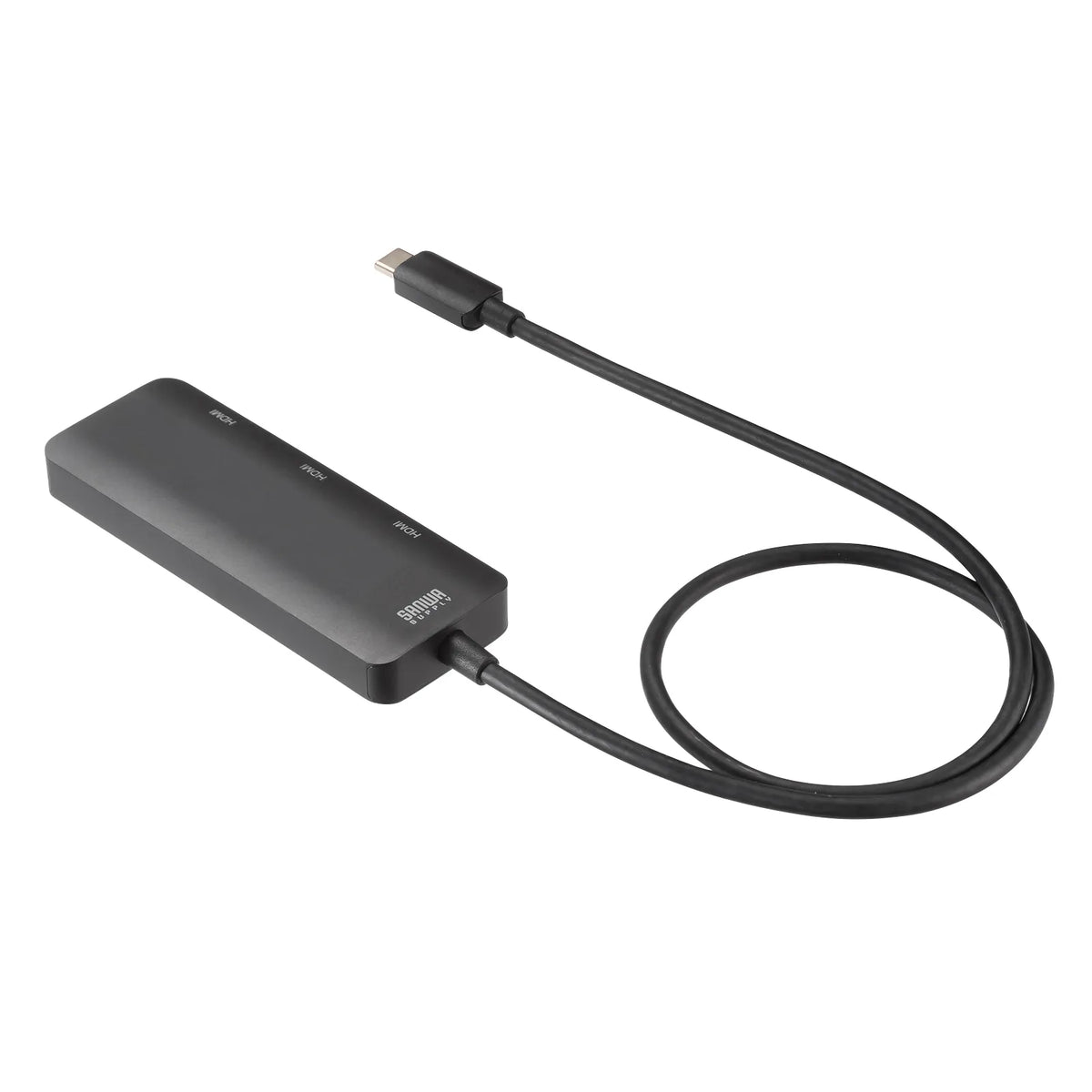

USB Type C to HDMI Conversion Adapter (3 Ports/4K Compatible) AD-ALCMST3HD2
USB Type C to HDMI Conversion Adapter (3 Ports/4K Compatible) AD-ALCMST3HD2
GTIN（JAN）：4969887769706
SKU：AD-ALCMST3HD2
Regular price
¥9,438 JPY
Regular price
Sale price
¥9,438 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A 4K-compatible conversion adapter that allows video output from a Type-C port to three HDMI ports. Supports extended output/distribution output.]

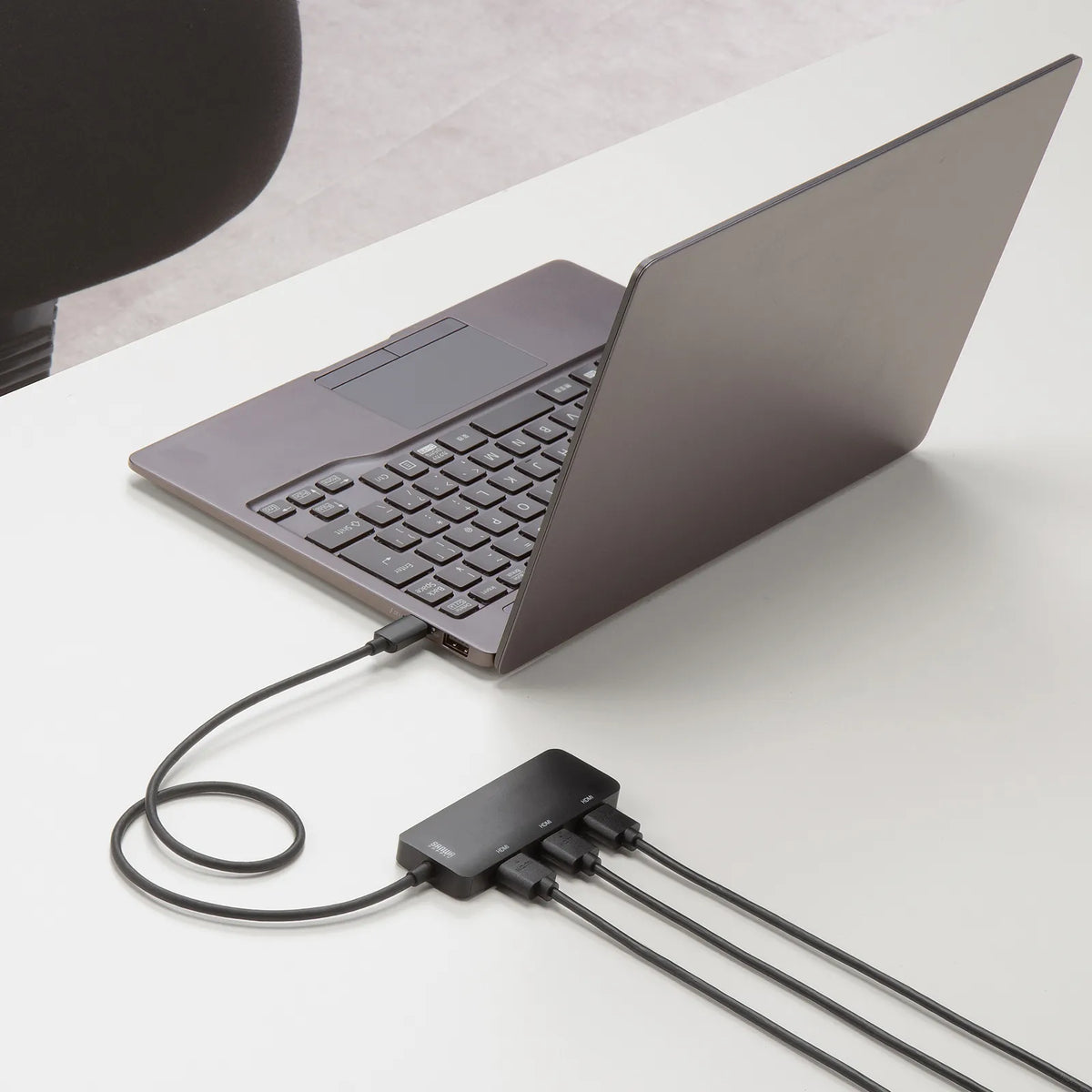

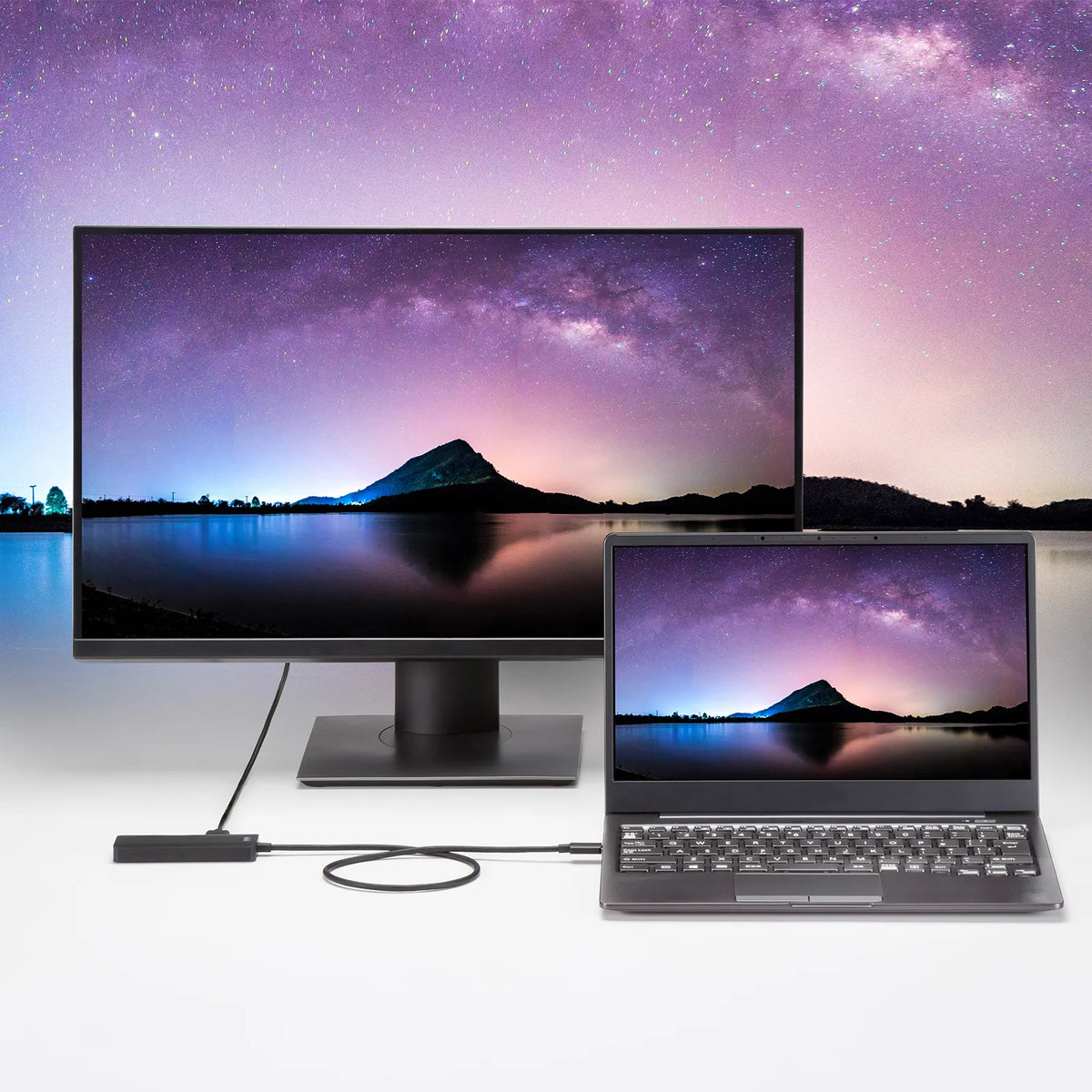

●This conversion adapter allows you to output video and audio from a computer equipped with USB Type-C (only Type-C ports that support video output) to three HDMI displays or TVs.
●Supports DisplayPort Alternate Mode for adding displays via USB Type-C connection, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software.

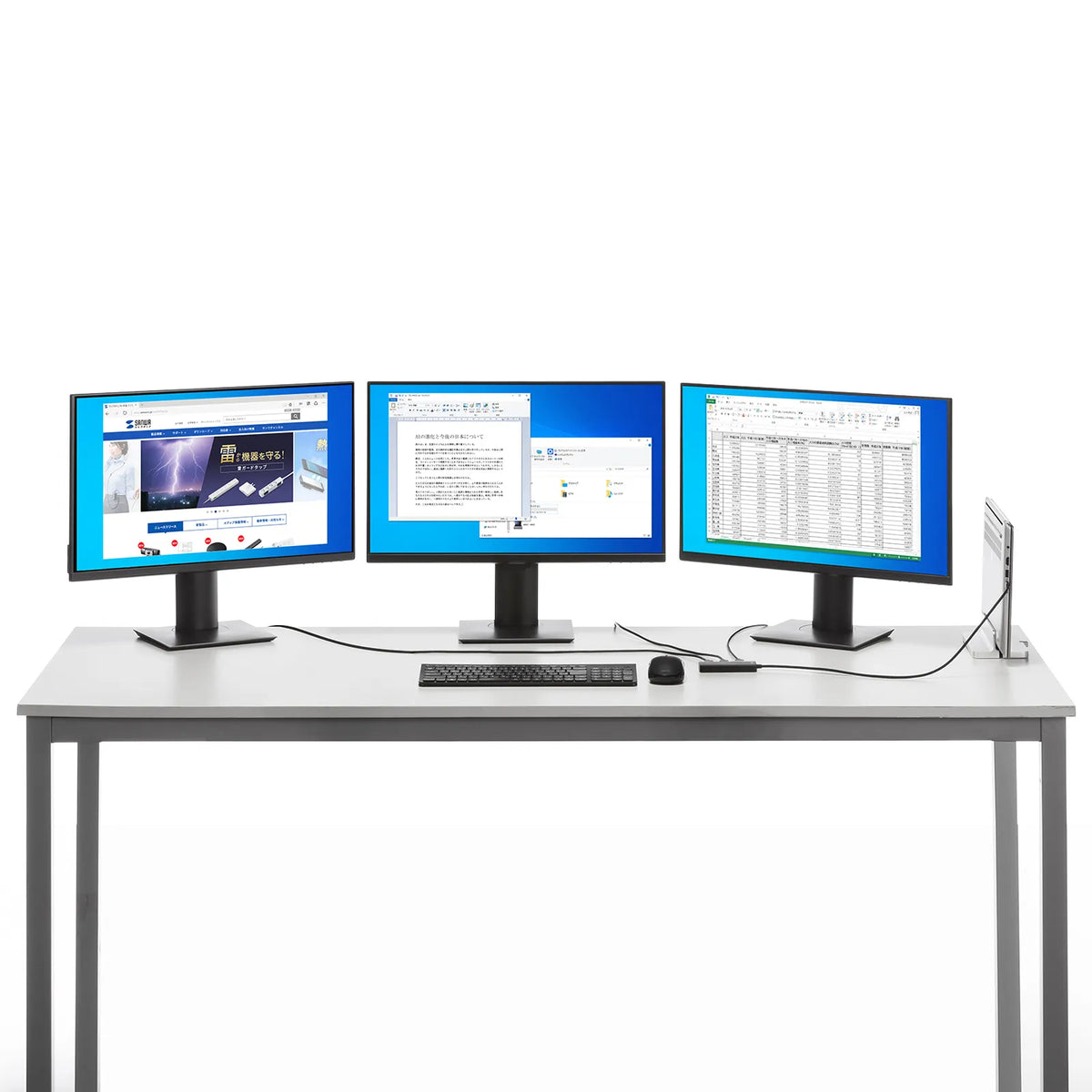

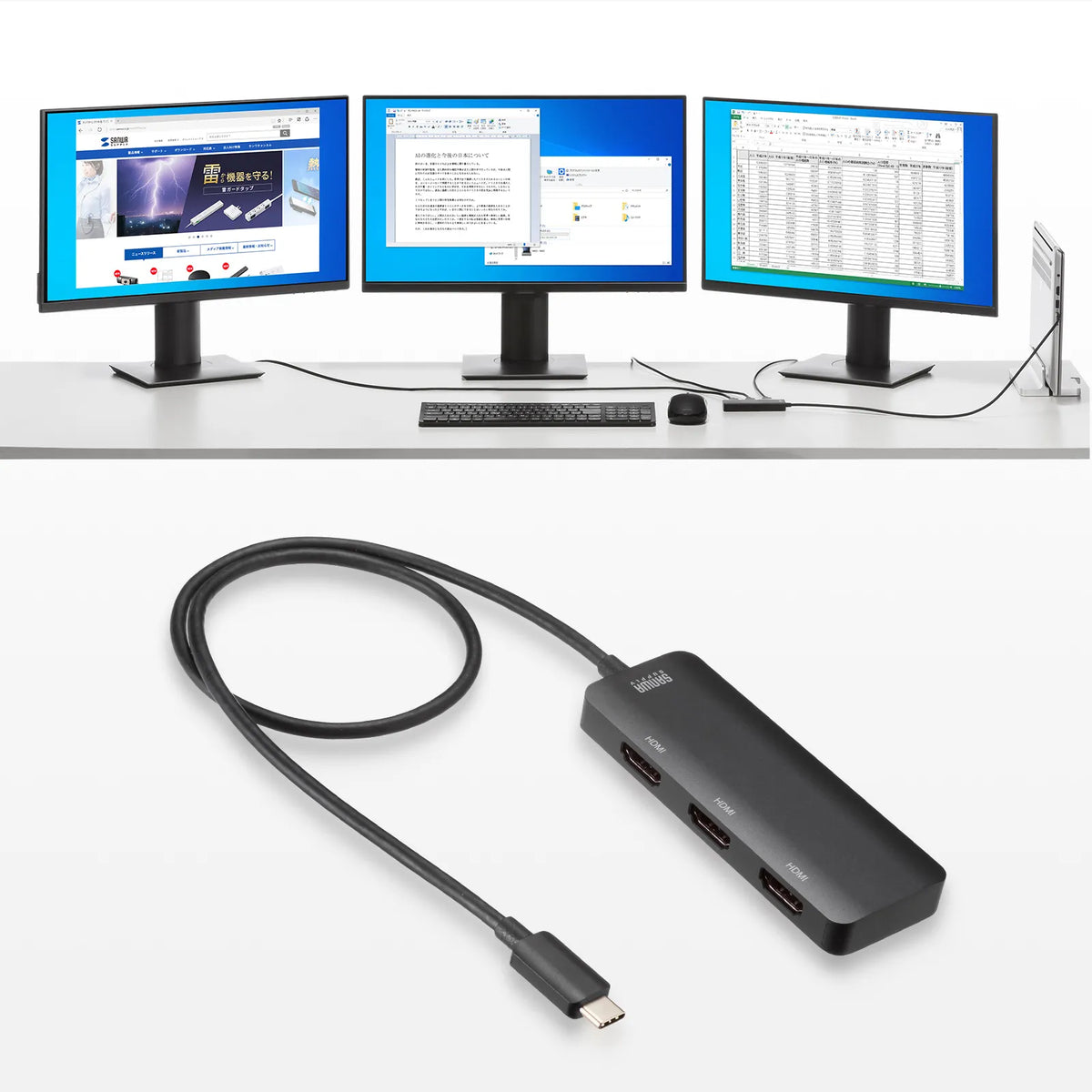

●Supports extended output to three displays, and including the laptop screen, it is possible to extend output to a maximum of four screens (4K/30Hz x 3 + laptop screen). *1, *2, *3
●Supports duplicate output to three displays, and including the laptop screen, it is possible to output the same screen to a maximum of four screens (4K/30Hz x 3 + laptop screen). *1, *2
●For extension/distribution to up to two displays, HDMI output at 4K/60Hz resolution is possible. *3

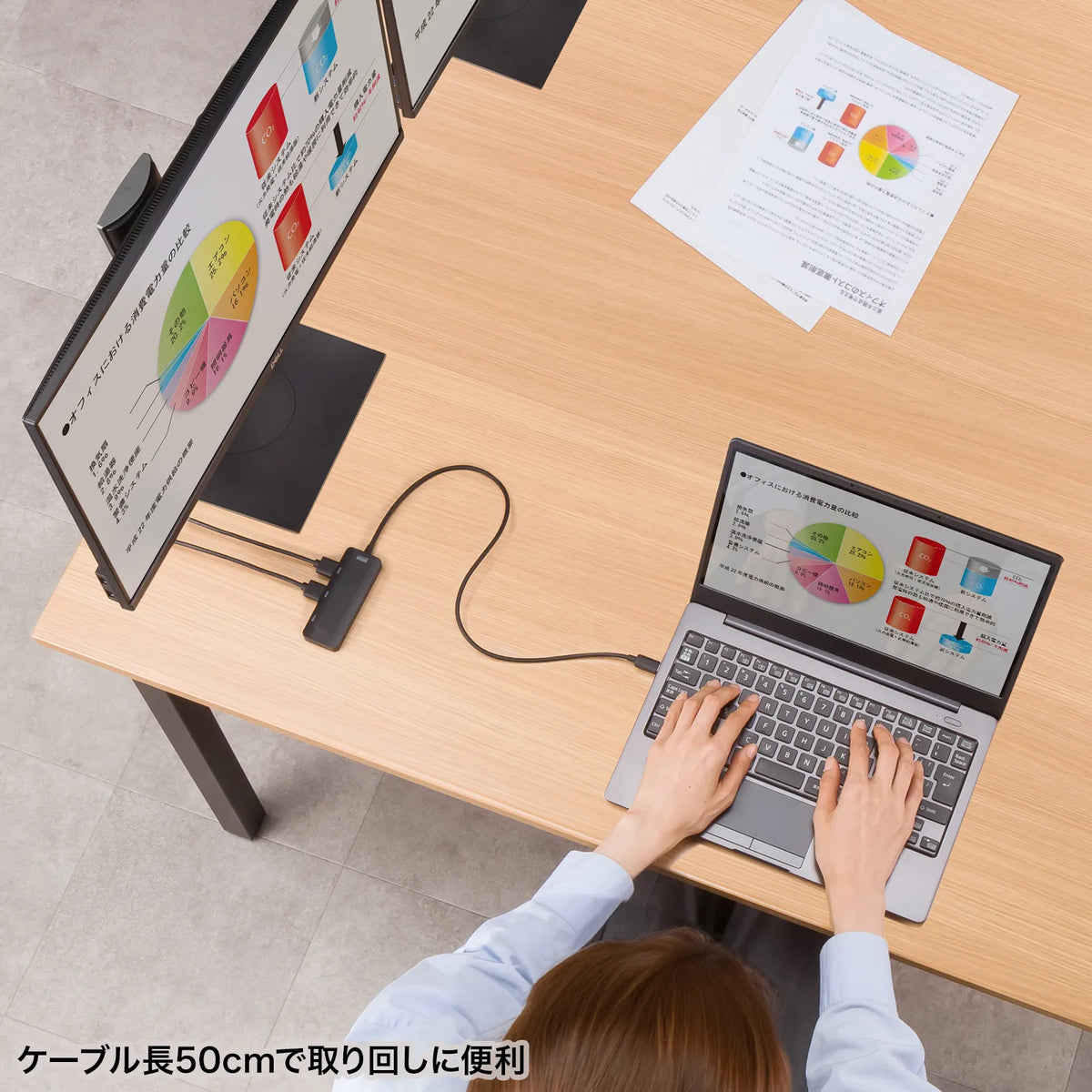

●The cable length is 50cm, making it easy to connect and handle.
*1 The PC's Type-C port must be DP1.4 or higher and support DSC mode.
If DP1.4 and DSC mode are not supported, output to the maximum number of screens may not be possible.
*2 All displays and laptop screens must support the resolution of the screen they display.
*3 Only compatible with Windows OS. Not compatible with macOS.
【USB】
■Interface standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
■Connector shape (PC connection side): USB Type-C
【Video output port】

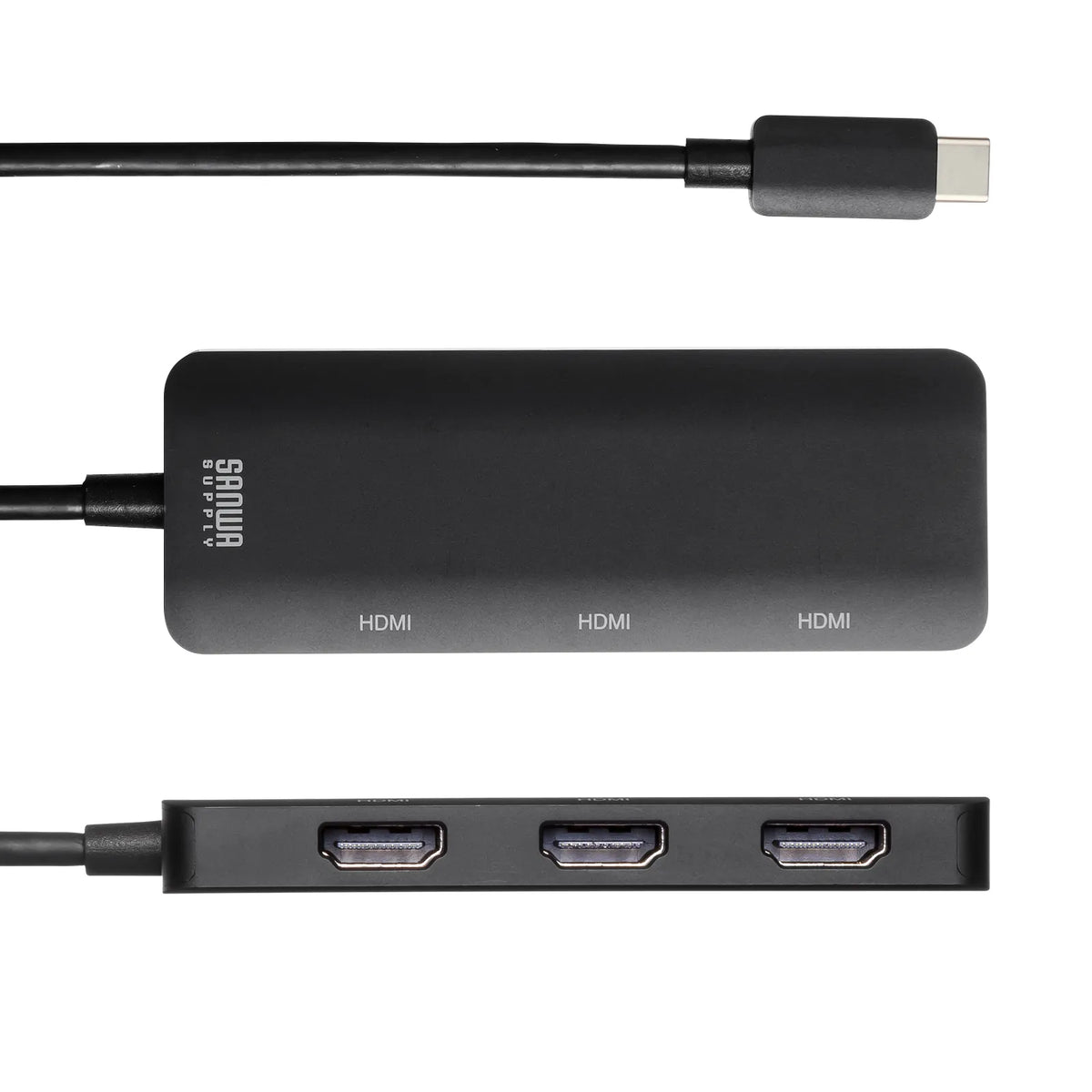

■Port shape: HDMI Type A (19pin) female x3
■Supported resolution:
Up to 4K/60Hz x1 (when 1 unit is connected)
Up to 4K/60Hz x2 (when 2 units are connected simultaneously)
Up to 4K/30Hz x3 (when 3 units are connected simultaneously)
*The computer, projector or display, and connection cables must all support the same resolution.
■Maximum supported resolution: 4K/60Hz
■HDR support: Supported
■HDCP: HDCP1.4, HDCP2.2
【Video Standards】
■HDMI Standard: HDMI2.0
【Common Specifications】
■Adapter Type: DP Alt Mode
■Supported OS Windows: 11, 10
■Supported OS Mac: macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15
■Supported Models:
Supported PCs
Windows (DOS/V) PCs and Apple Mac series equipped with a standard USB Type-C connector and supporting DisplayPort Alt mode (DP1.4 or higher, with DSC)
※Nintendo Not compatible with Switch
Compatible output devices
TVs, computer displays, etc. equipped with a standard HDMI input terminal
■Current consumption: 400mA
(maximum)
■Cable length: approx. 0.5m
■Cable diameter: approx. 4.2mm
【Other specifications】
■Shielding method: Triple shielding
●This conversion adapter allows you to output video and audio from a computer equipped with USB Type-C (only Type-C ports that support video output) to three HDMI displays or TVs.
●Supports DisplayPort Alternate Mode for adding displays via USB Type-C connection, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software.
●Supports extended output to three displays, and including the laptop screen, it is possible to extend output to a maximum of four screens (4K/30Hz x 3 + laptop screen). *1, *2, *3
●Supports duplicate output to three displays, and including the laptop screen, it is possible to output the same screen to a maximum of four screens (4K/30Hz x 3 + laptop screen). *1, *2
●For extension/distribution to up to two displays, HDMI output at 4K/60Hz resolution is possible. *3
●The cable length is 50cm, making it easy to connect and handle.
*1 The PC's Type-C port must be DP1.4 or higher and support DSC mode.
If DP1.4 and DSC mode are not supported, output to the maximum number of screens may not be possible.
*2 All displays and laptop screens must support the resolution of the screen they display.
*3 Only compatible with Windows OS. Not compatible with macOS.
【USB】
■Interface standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
■Connector shape (PC connection side): USB Type-C
【Video output port】
■Port shape: HDMI Type A (19pin) female x3
■Supported resolution:
Up to 4K/60Hz x1 (when 1 unit is connected)
Up to 4K/60Hz x2 (when 2 units are connected simultaneously)
Up to 4K/30Hz x3 (when 3 units are connected simultaneously)
*The computer, projector or display, and connection cables must all support the same resolution.
■Maximum supported resolution: 4K/60Hz
■HDR support: Supported
■HDCP: HDCP1.4, HDCP2.2
【Video Standards】
■HDMI Standard: HDMI2.0
【Common Specifications】
■Adapter Type: DP Alt Mode
■Supported OS Windows: 11, 10
■Supported OS Mac: macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15
■Supported Models:
Supported PCs
Windows (DOS/V) PCs and Apple Mac series equipped with a standard USB Type-C connector and supporting DisplayPort Alt mode (DP1.4 or higher, with DSC)
※Nintendo Not compatible with Switch
Compatible output devices
TVs, computer displays, etc. equipped with a standard HDMI input terminal
■Current consumption: 400mA
(maximum)
■Cable length: approx. 0.5m
■Cable diameter: approx. 4.2mm
【Other specifications】
■Shielding method: Triple shielding
