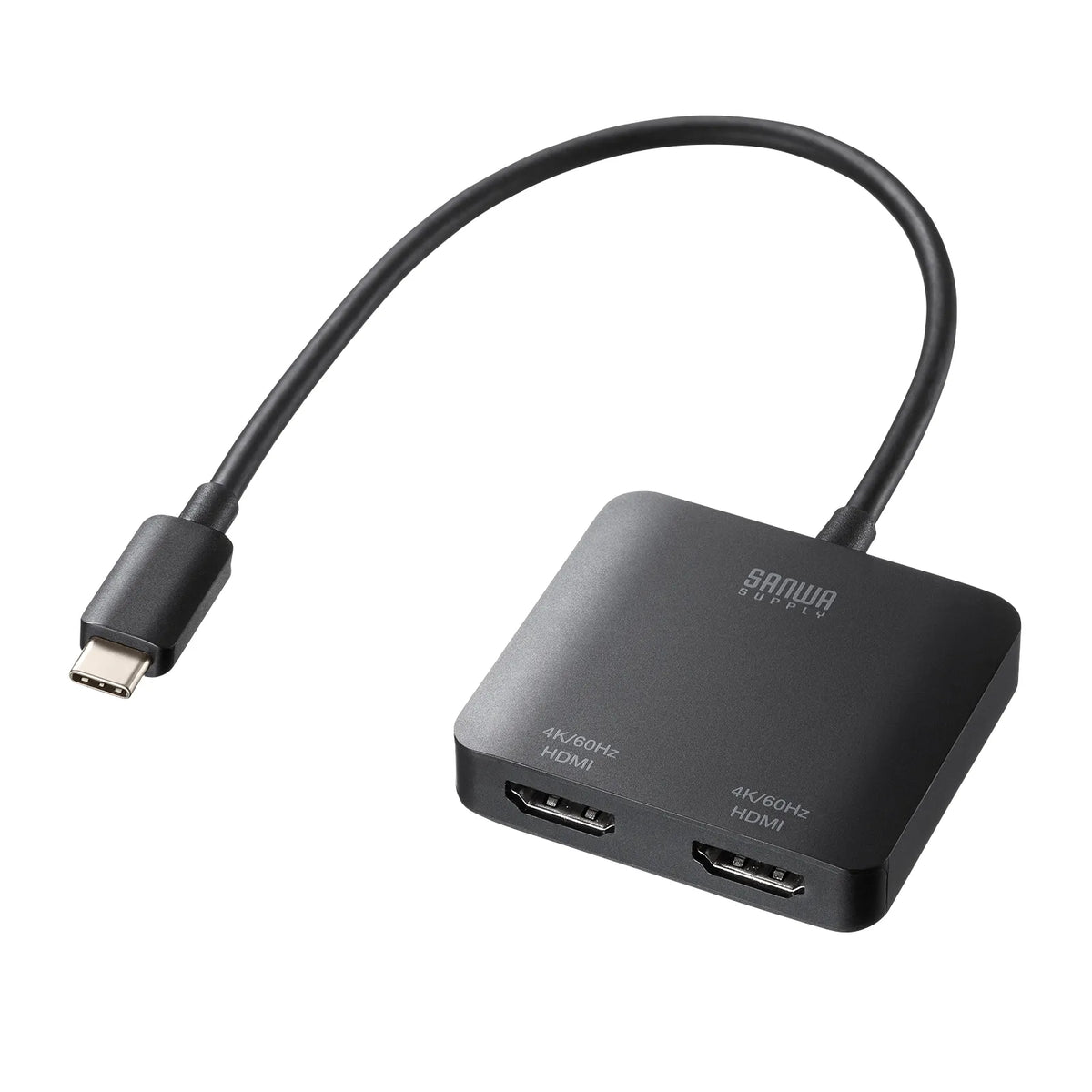

USB Type C to HDMI Conversion Adapter (2 Ports/4K Compatible) AD-ALCMST2HD2

[A 4K-compatible conversion adapter that allows video output from a Type-C port to two HDMI ports. Supports extended output/distribution output.]

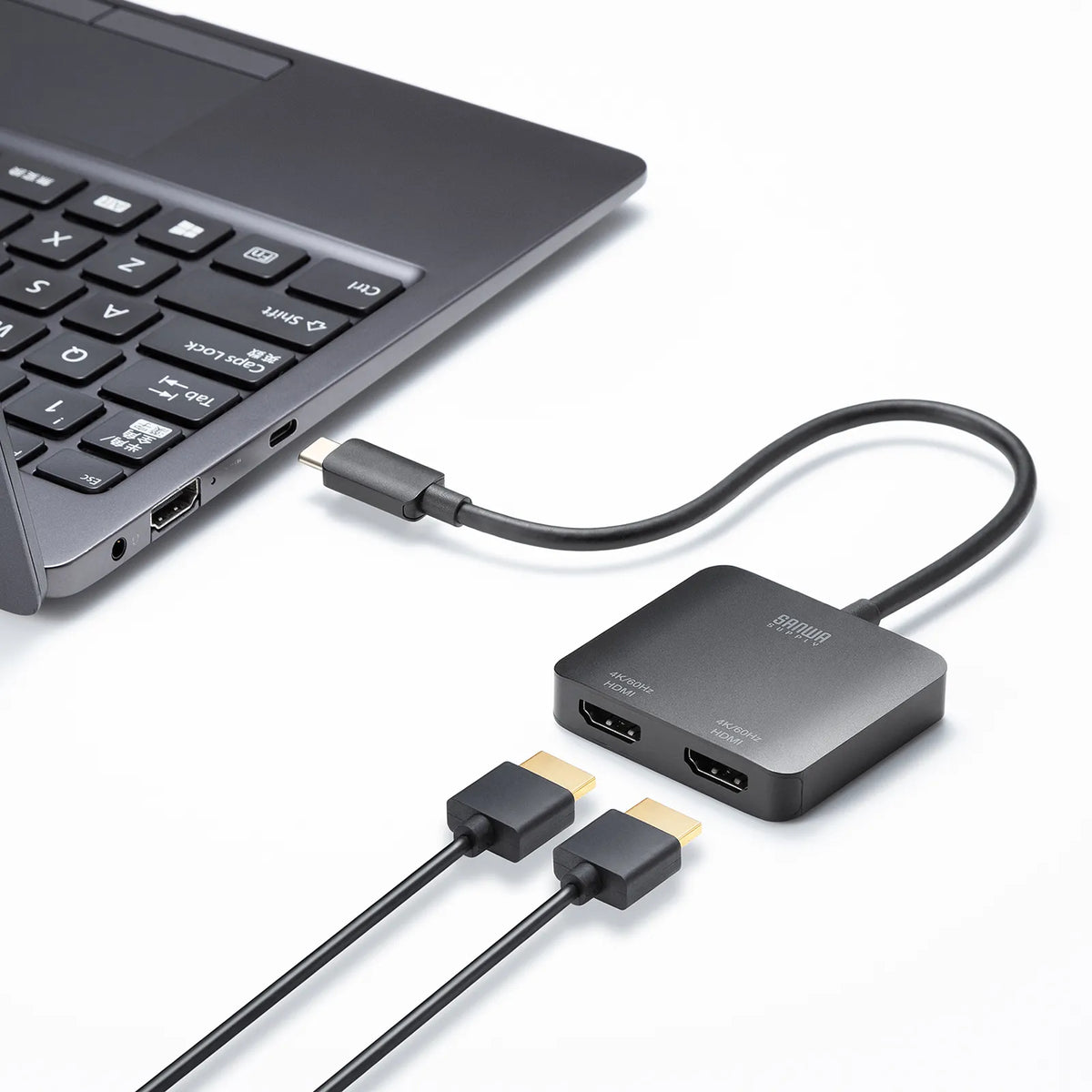

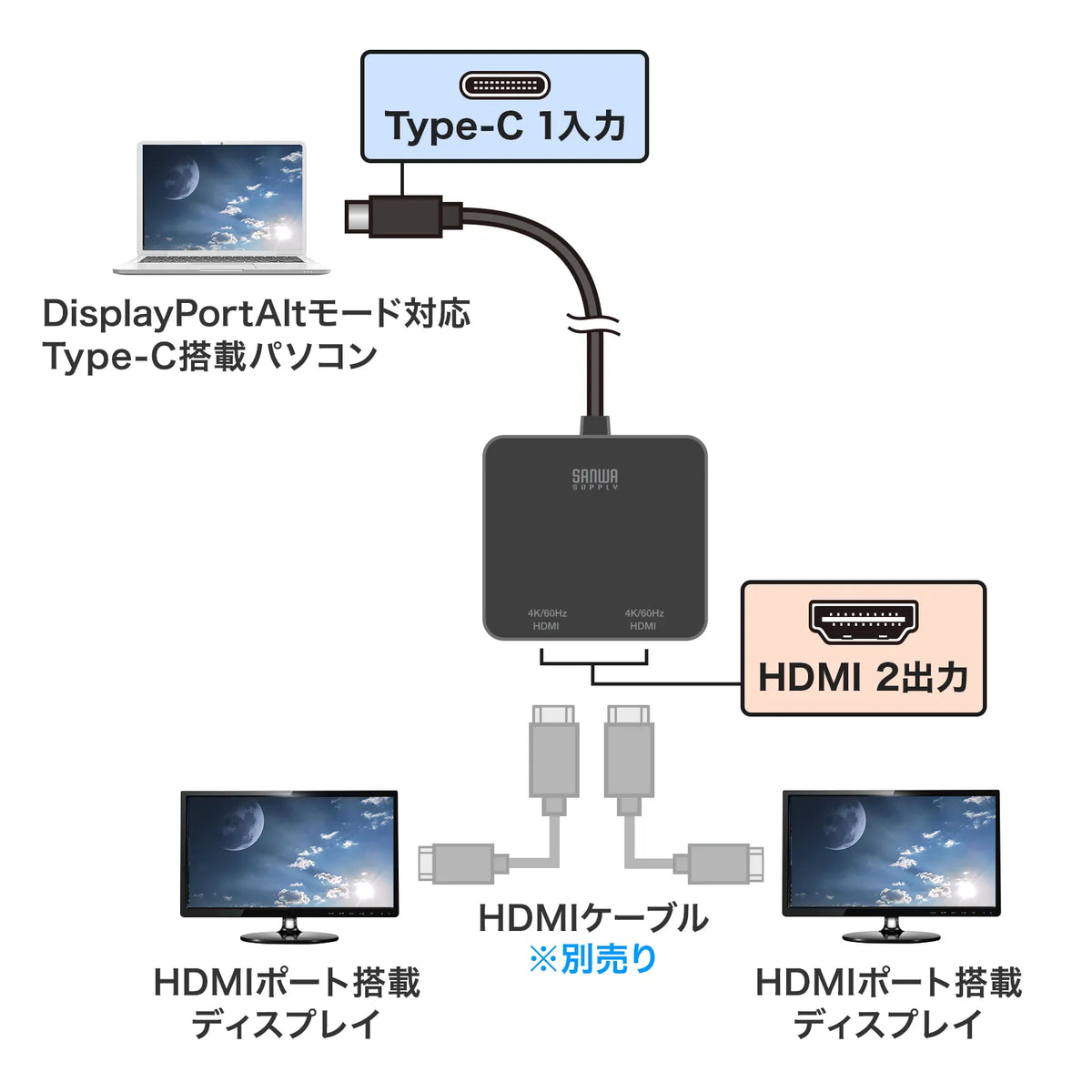

●This conversion adapter allows you to output video and audio from a computer equipped with USB Type-C (only Type-C ports that support video output) to two HDMI displays or TVs.
●Supports DisplayPort Alternate Mode for adding displays via USB Type-C connection, allowing you to easily create a multi-display environment (mirror mode/extended mode) without installing any software.

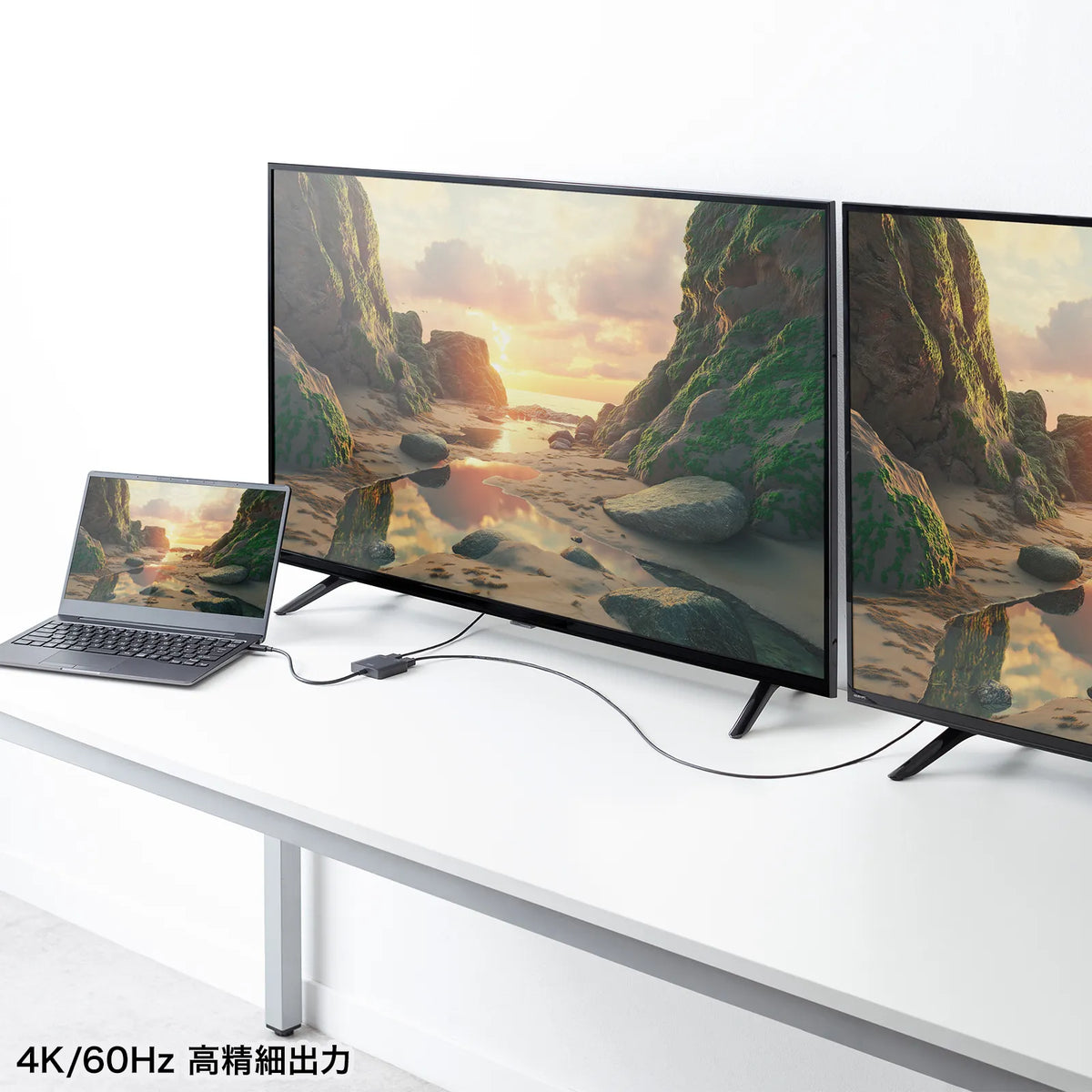

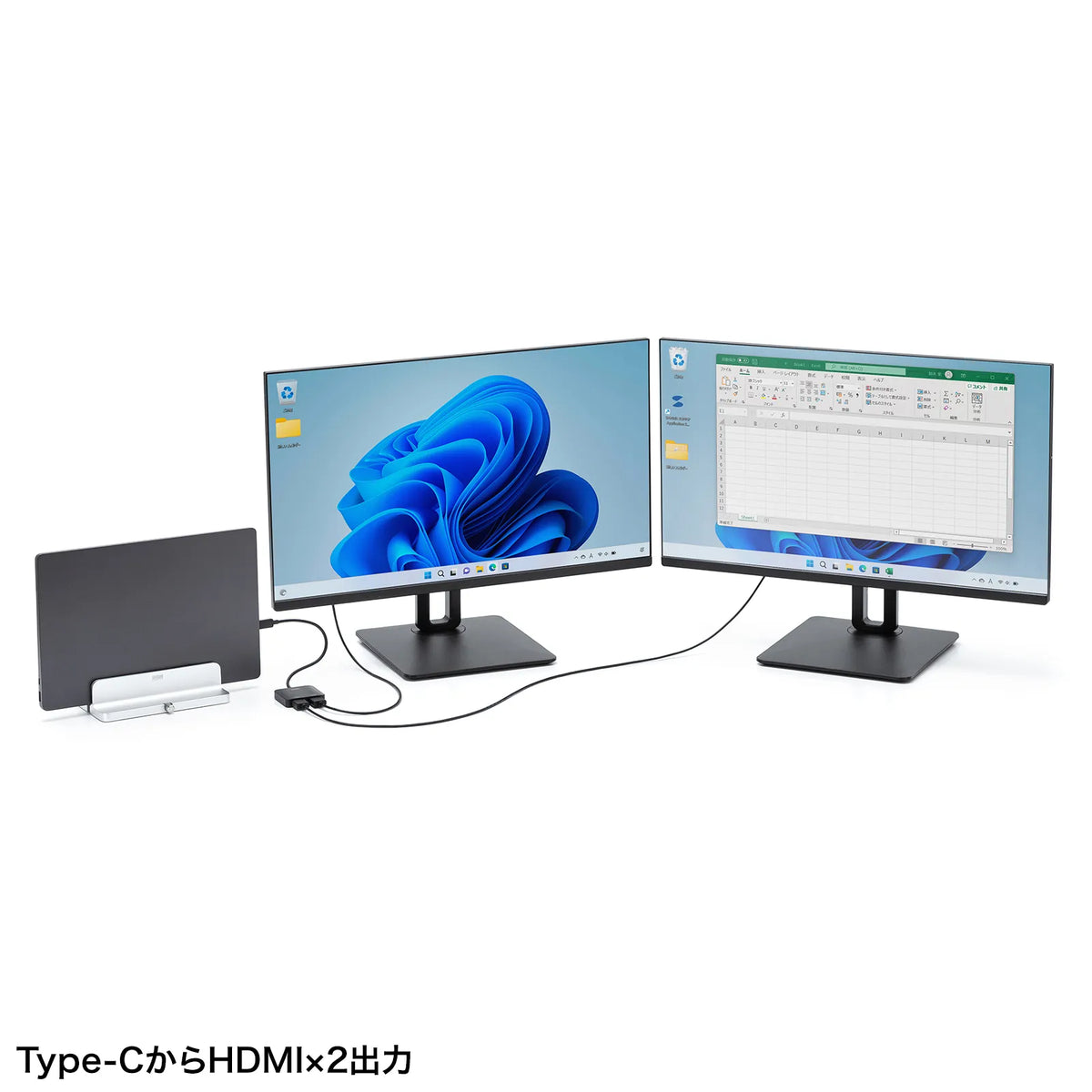

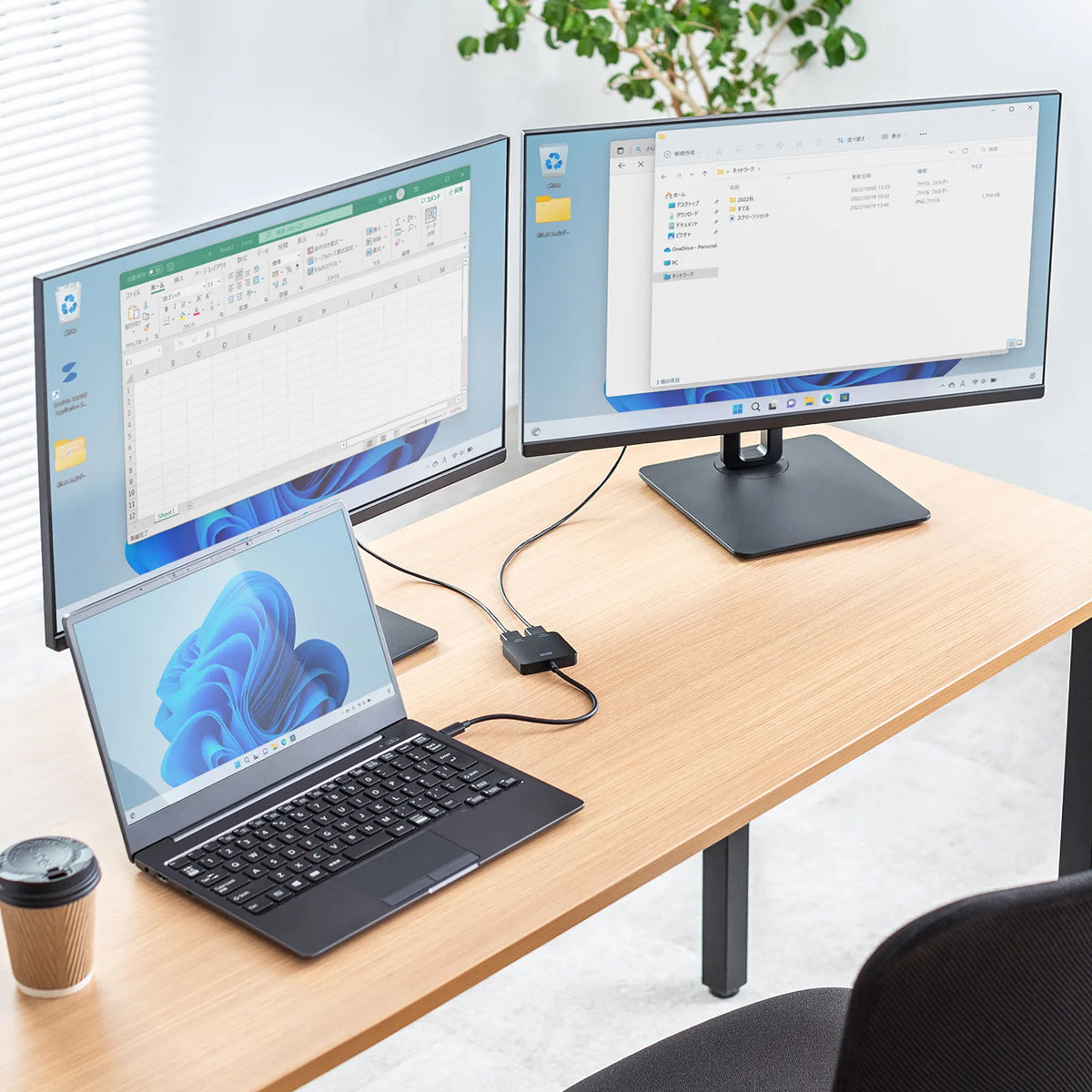

●Supports extended output to two displays, and including the laptop screen, it is possible to extend output to a maximum of three screens (4K/60Hz x 2 + laptop screen). *1, *2, *3
●Supports duplicate output to two displays, and including the laptop screen, it is possible to output the same screen to a maximum of three screens (4K/60Hz x 2 + laptop screen). *1, *2

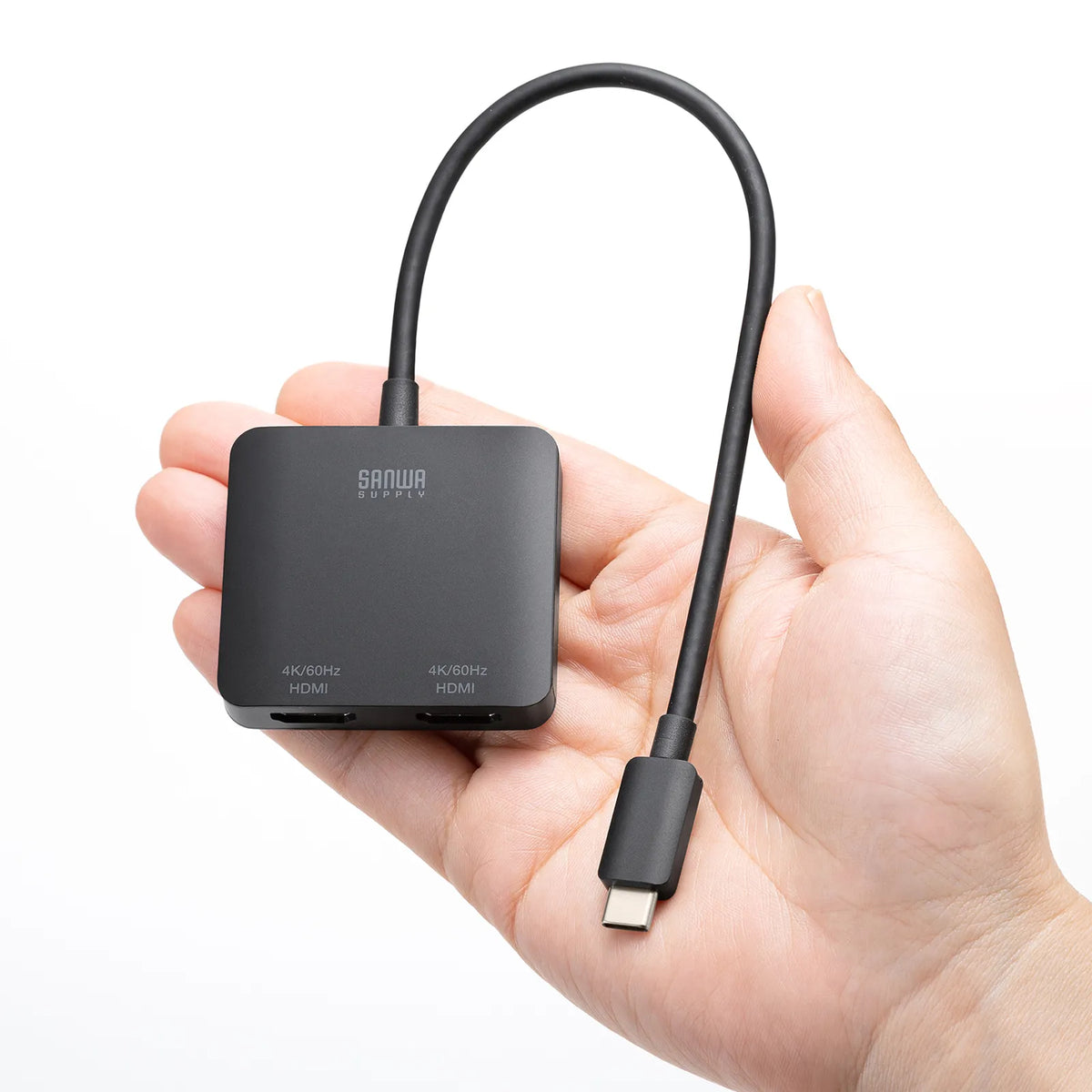

●The cable length is 20cm, making it easy to connect and handle.

*1 The PC's Type-C port must be DP1.4 or higher and support DSC mode.
If DP1.4 and DSC mode are not supported, output to the maximum number of screens may not be possible.
*2 All displays and laptop screens must support the resolution of the screen they display.
*3 Only compatible with Windows OS. Not compatible with macOS.


【USB】
■Interface standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
■Connector shape (PC connection side): USB Type-C
■Power supply: Bus power
【Video output port】

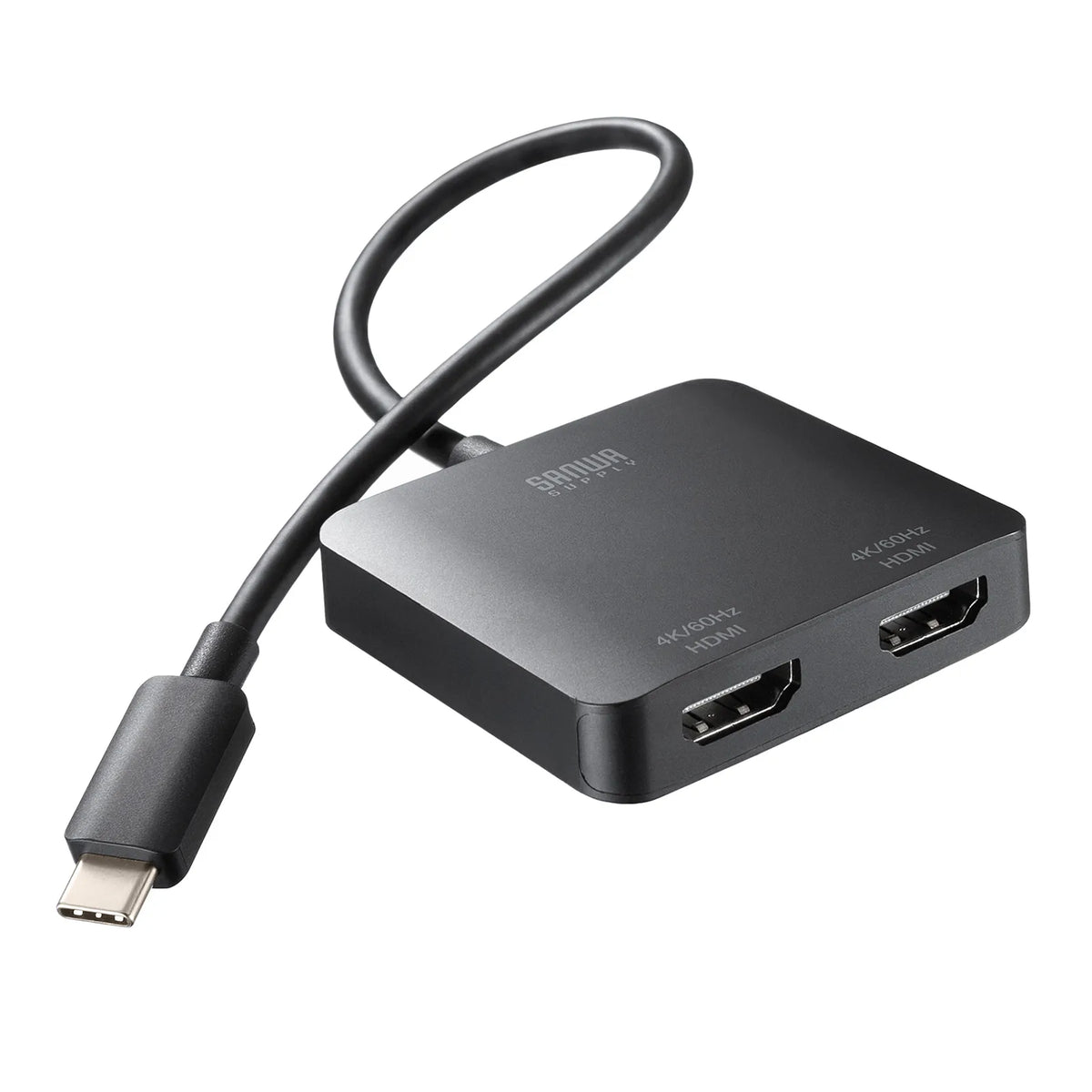

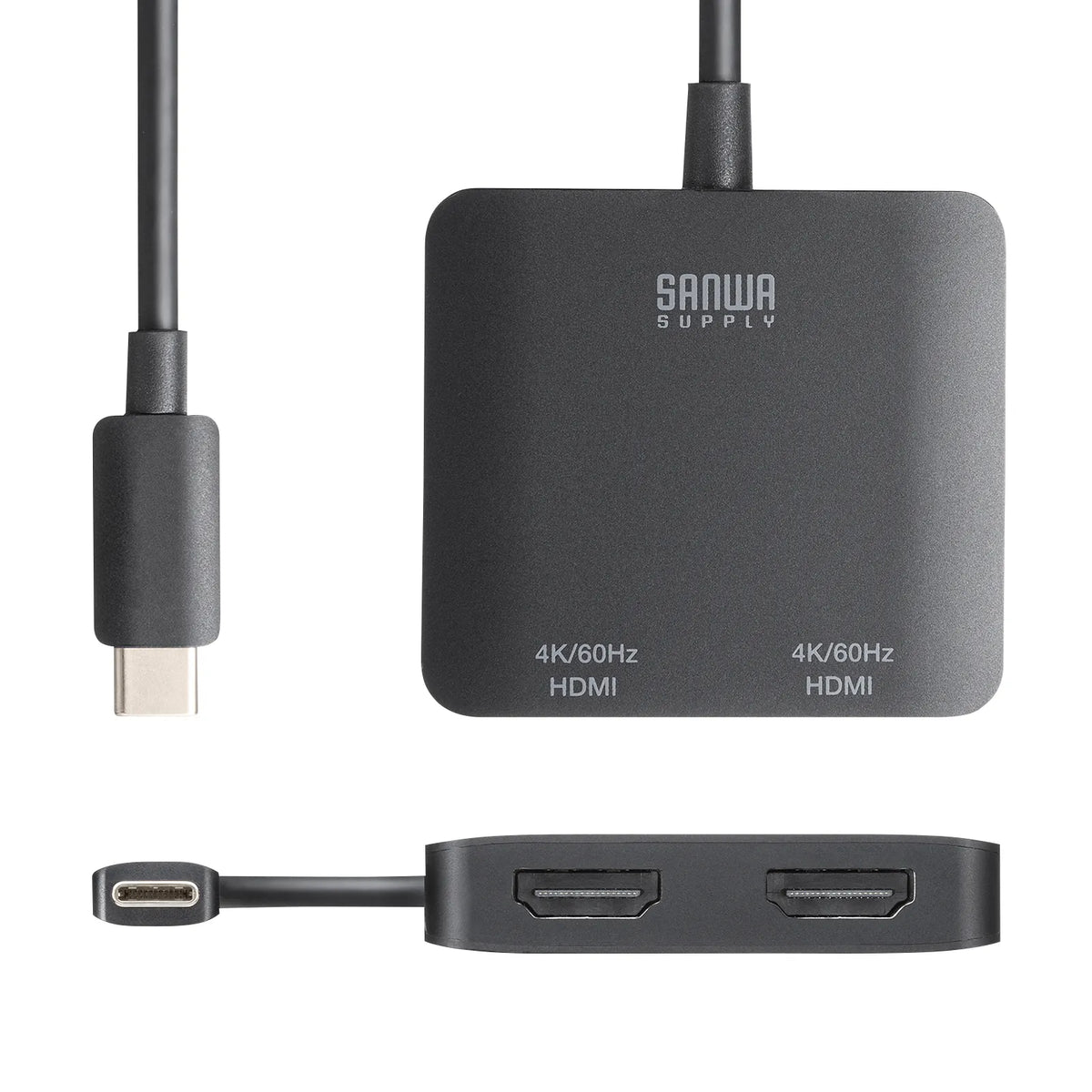

■Port shape: HDMI Type A (19pin) female x2
■Maximum supported resolution: 4K/60Hz
■Supported resolution: Up to 4K/60Hz x1 (when one device is connected)
Up to 4K/60Hz x2 (when two devices are connected simultaneously)
*The computer, projector or display, and connection cables must all support the same resolution.
■HDR support: Supported
■HDCP: HDCP1.4, HDCP2.2, HDCP2.3
【Video Standard】
■HDMI Standard: HDMI2.0
【Common Specifications】
■Current Consumption: Approx. 400mA
(Maximum)
■Supported OS Windows: 11, 10
■Supported OS Mac: macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15
■Supported OS iPadOS: iPadOS 13 to 18
■Supported Devices: Supported PCs: Windows (DOS/V) PCs and Apple Mac series equipped with a standard USB Type-C connector and supporting DisplayPort Alt mode (DP1.4 or higher, with DSC)
※Nintendo Switch incompatible

Compatible output devices: TVs and PC displays with standard HDMI input terminals
■Shielding method: Triple shielding
■Cable length: Approx. 0.2
■Cable diameter: Approx. 4.2
【】
■PC (output) side: USB Type-C
■Display (display) side: HDMI
■Resolution (for MD): 4K
