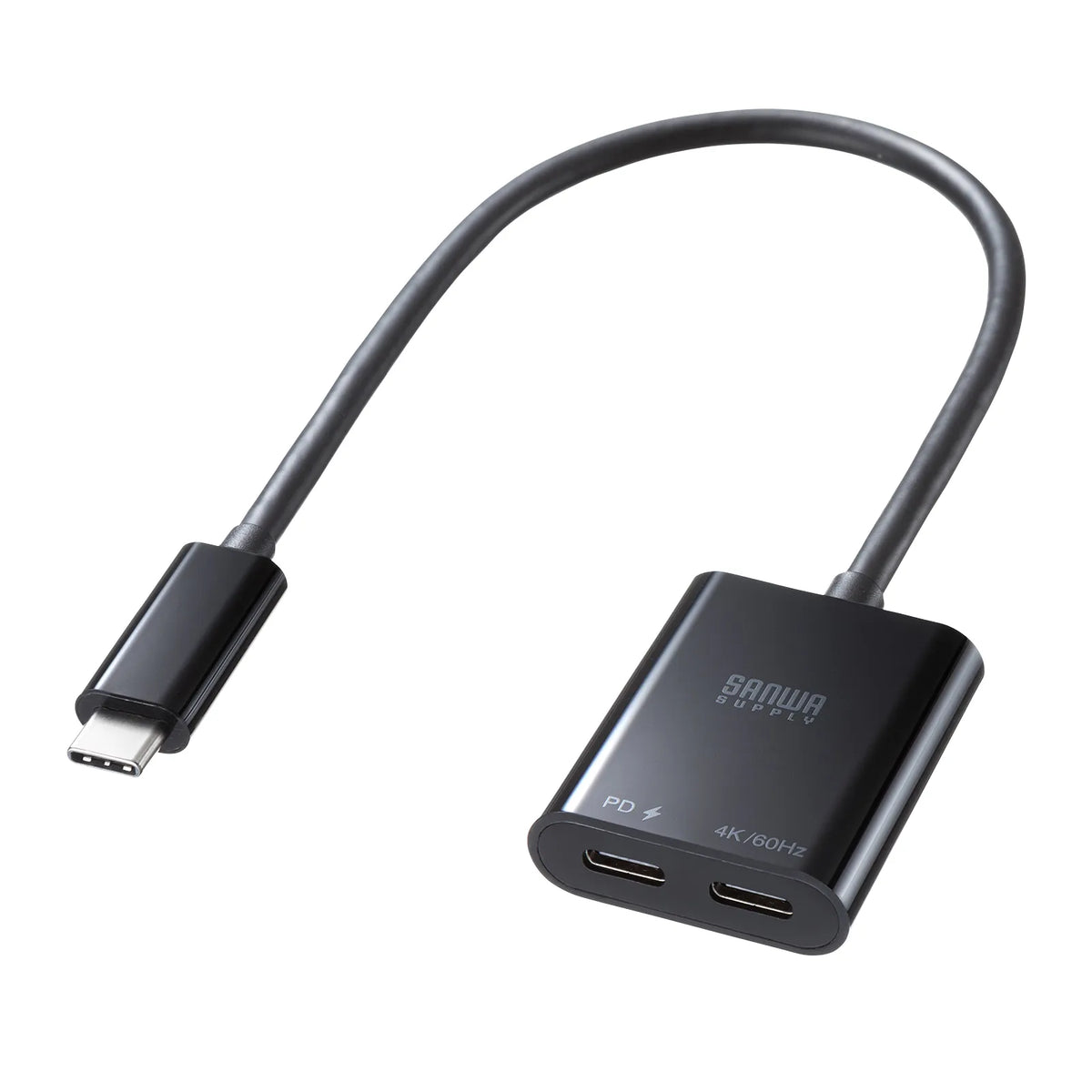

USB Type-C Expansion Adapter (Cable Type, PD Compatible) AD-ALCCPD02

[USB-C port splits into video and charging. USB Type-C expansion adapter ideal for VR goggles and mobile monitors.]

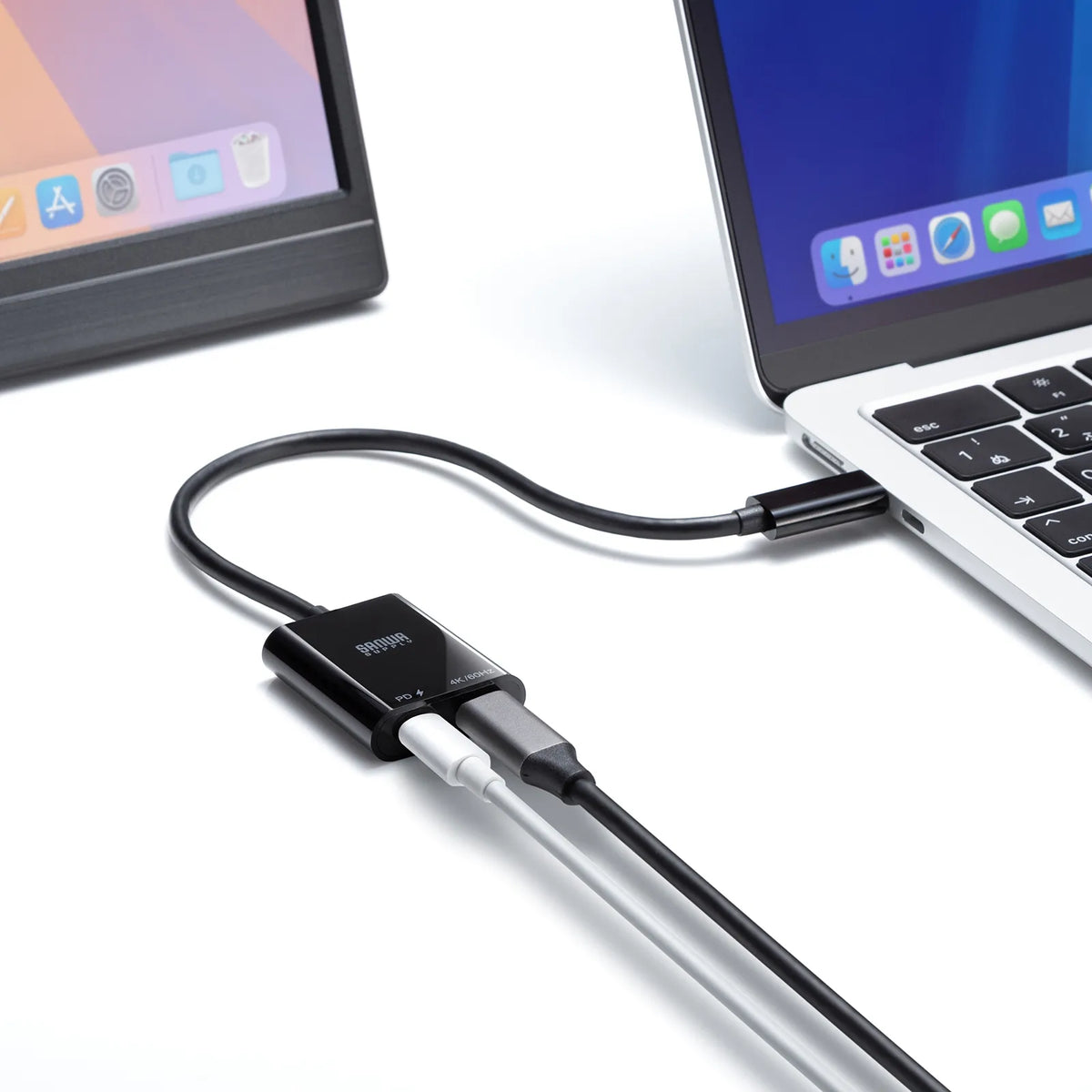

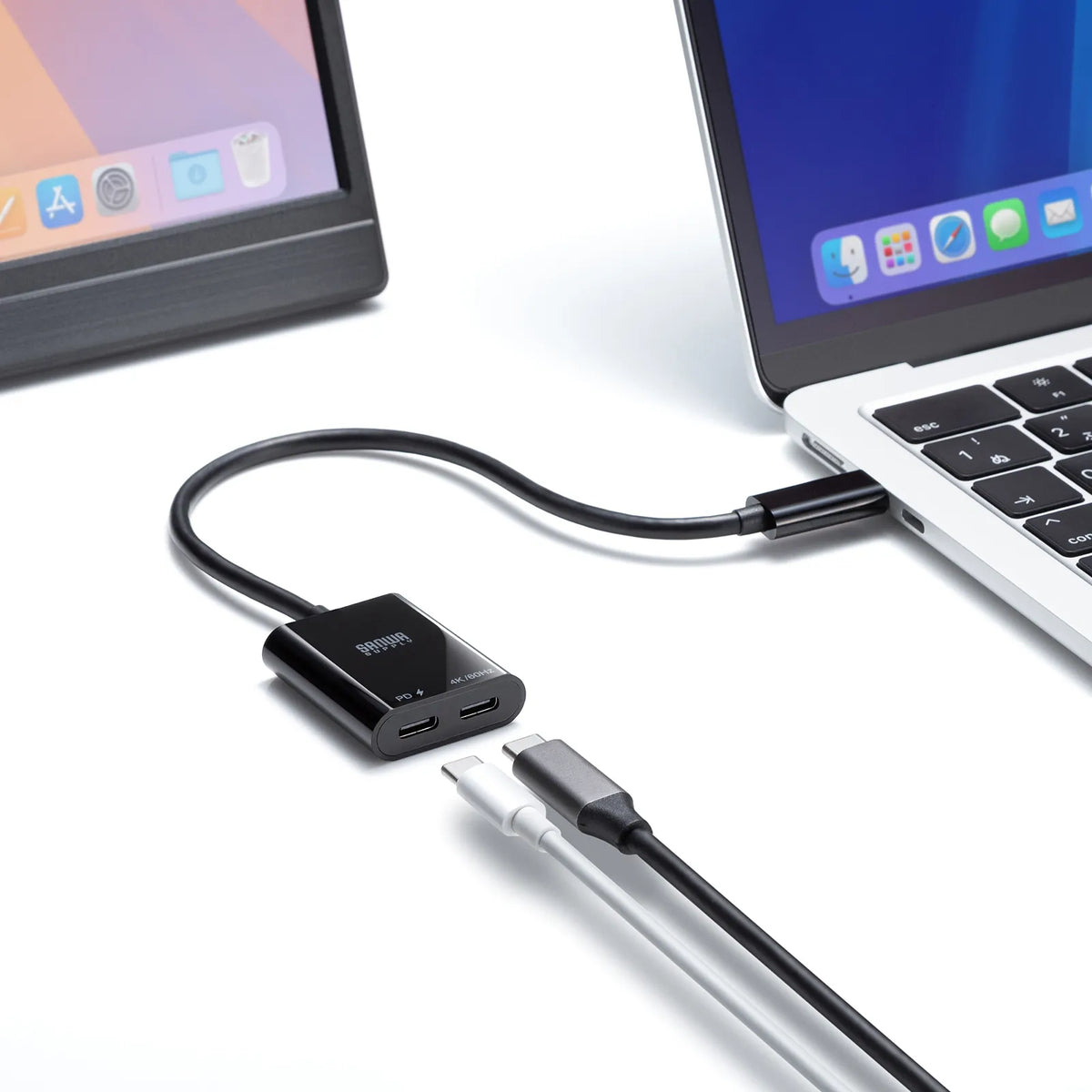

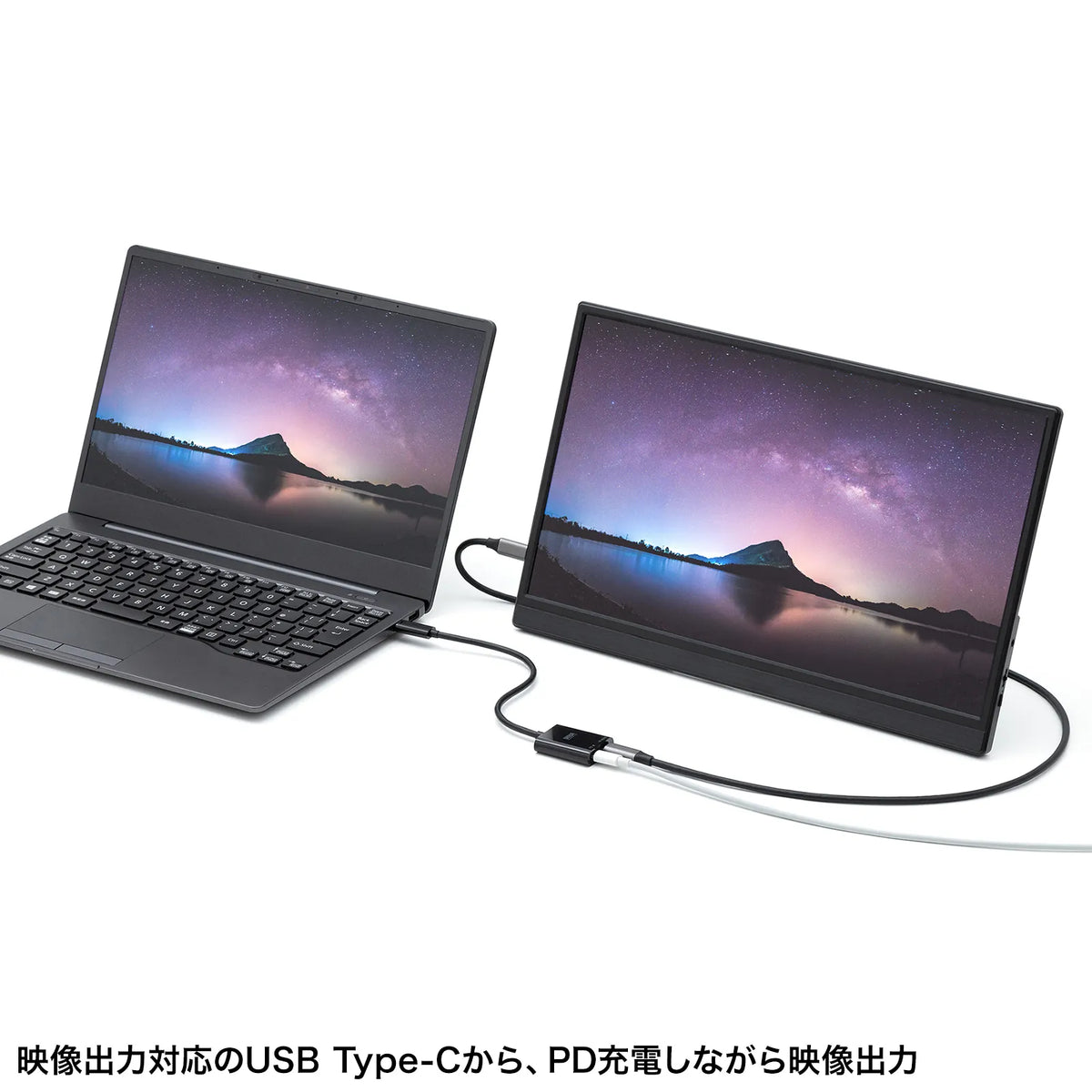

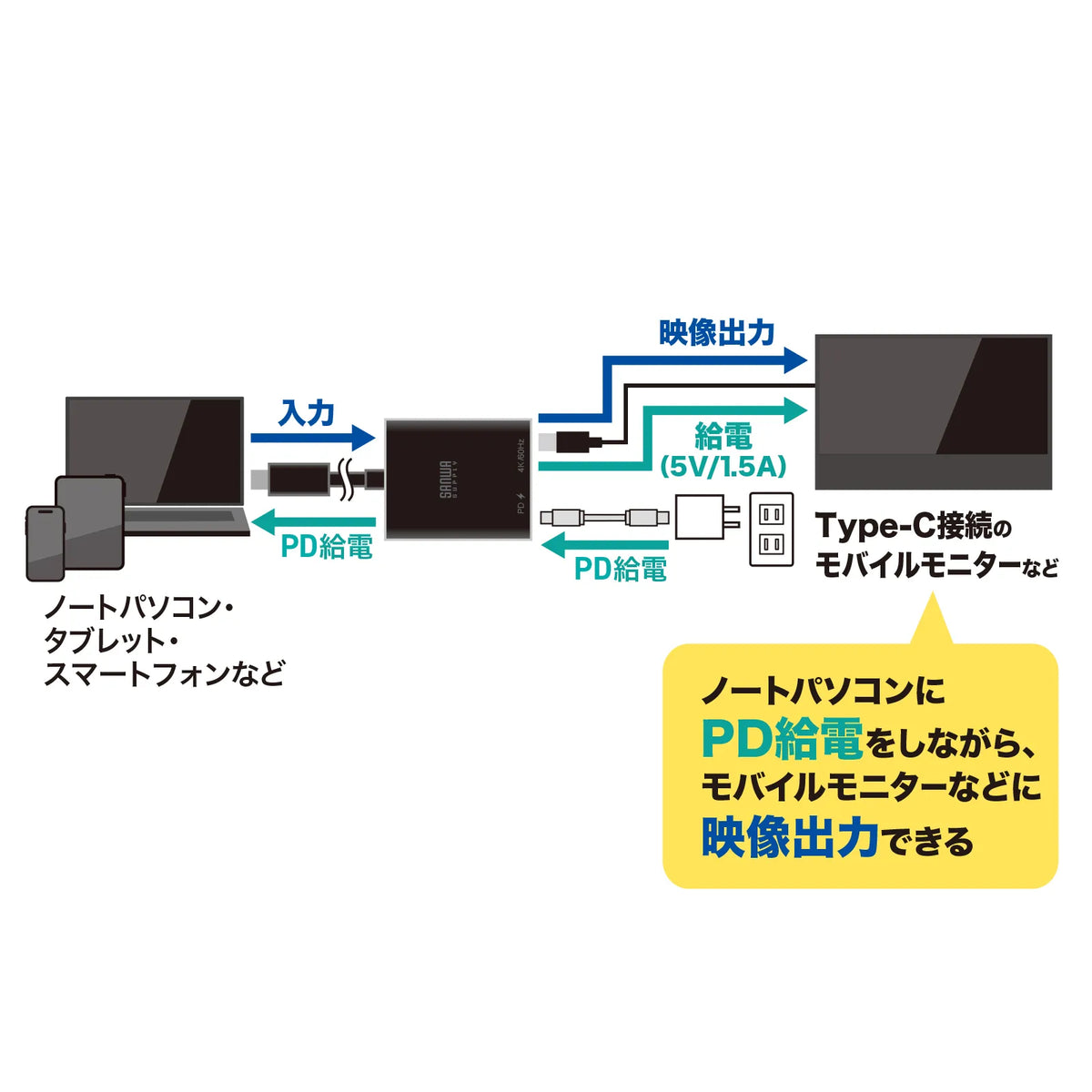

●This adapter expands the USB Type-C video output from PCs, tablets, and smartphones equipped with USB Type-C (only Type-C ports that support video output) to USB Type-C video output while simultaneously charging with PD.

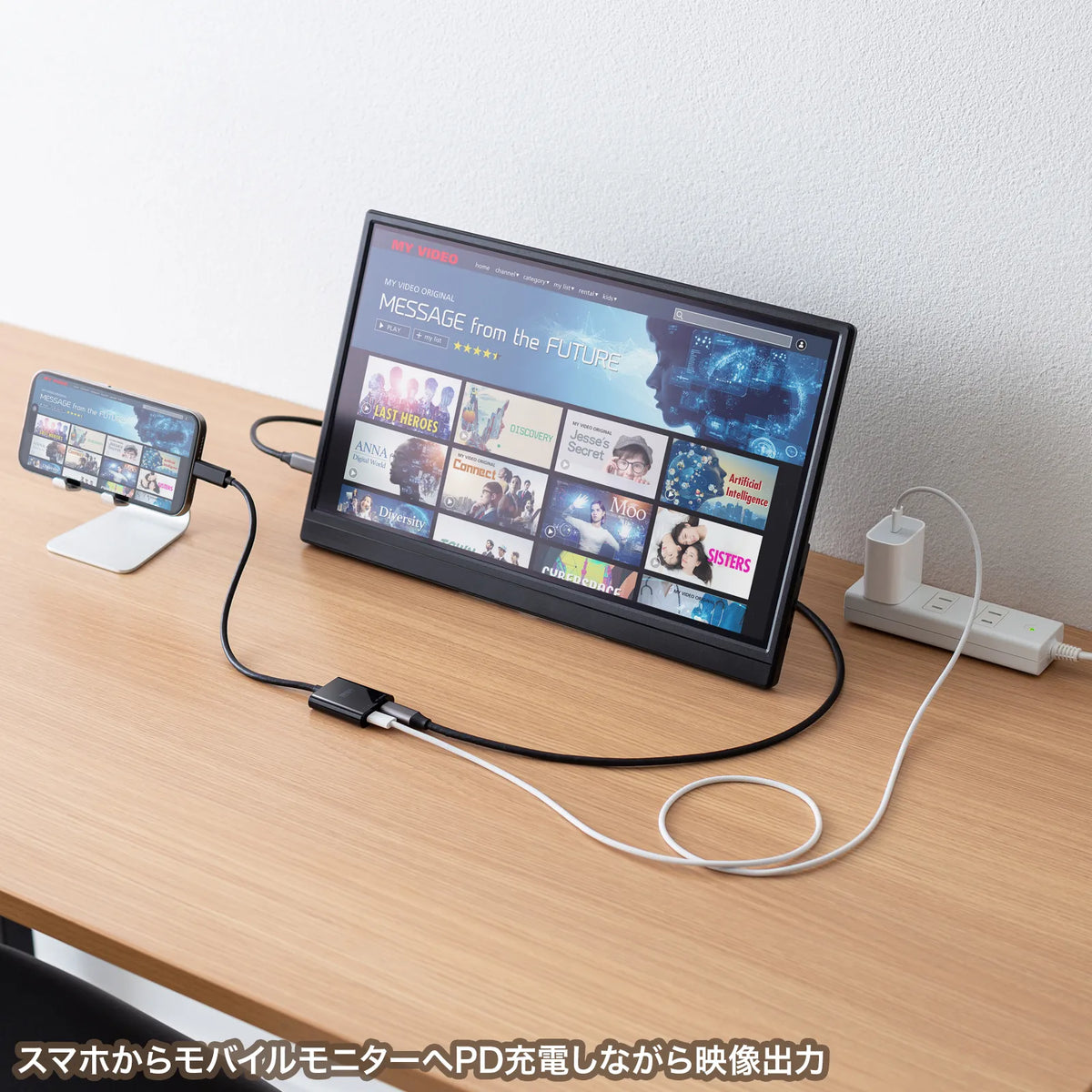

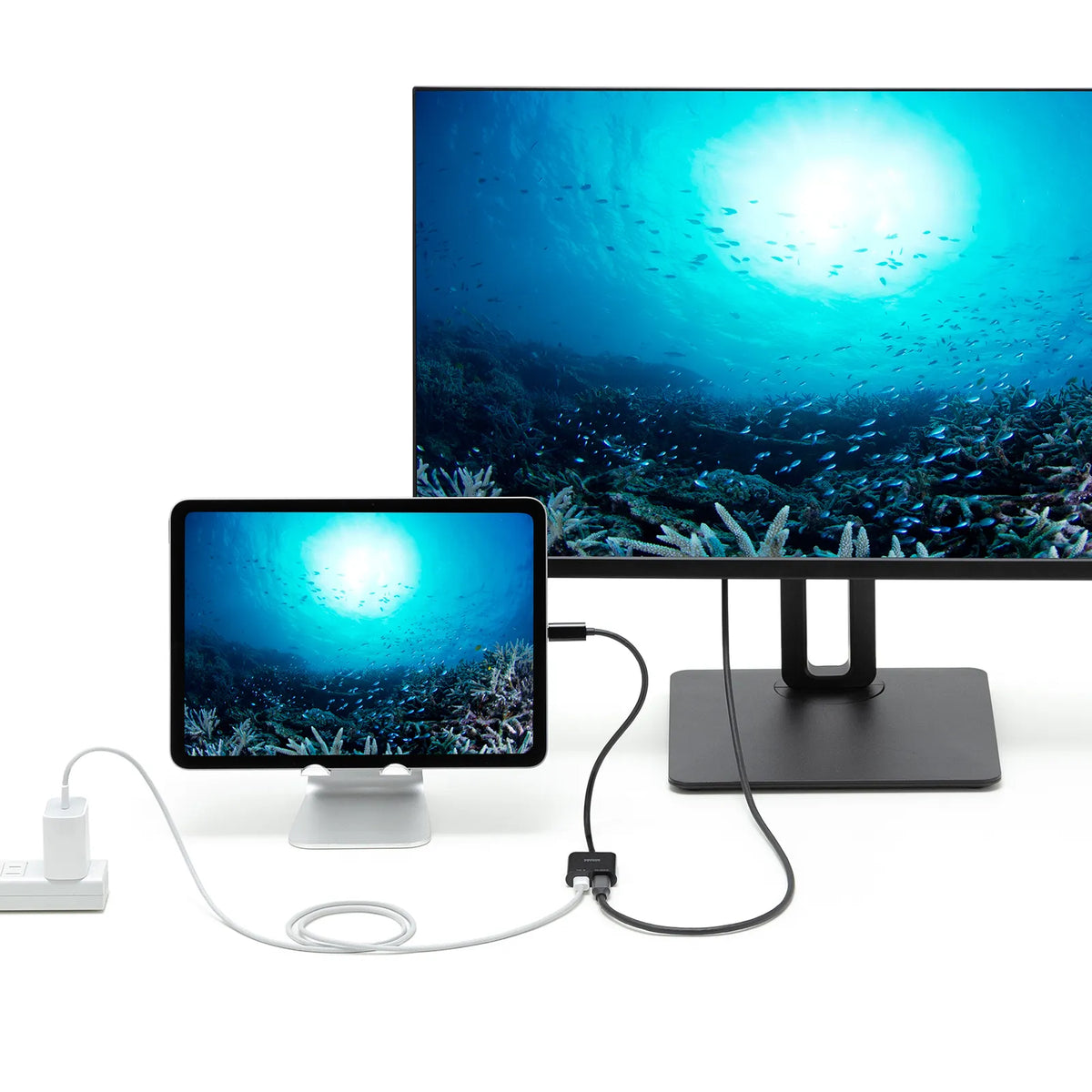

●When outputting a USB Type-C display from devices with a limited number of ports, such as iPhones/iPads, it enables video output while simultaneously charging with PD.
●Supports PD adapters up to 100W, and can also be used to charge PCs/tablets/smartphones via this product.

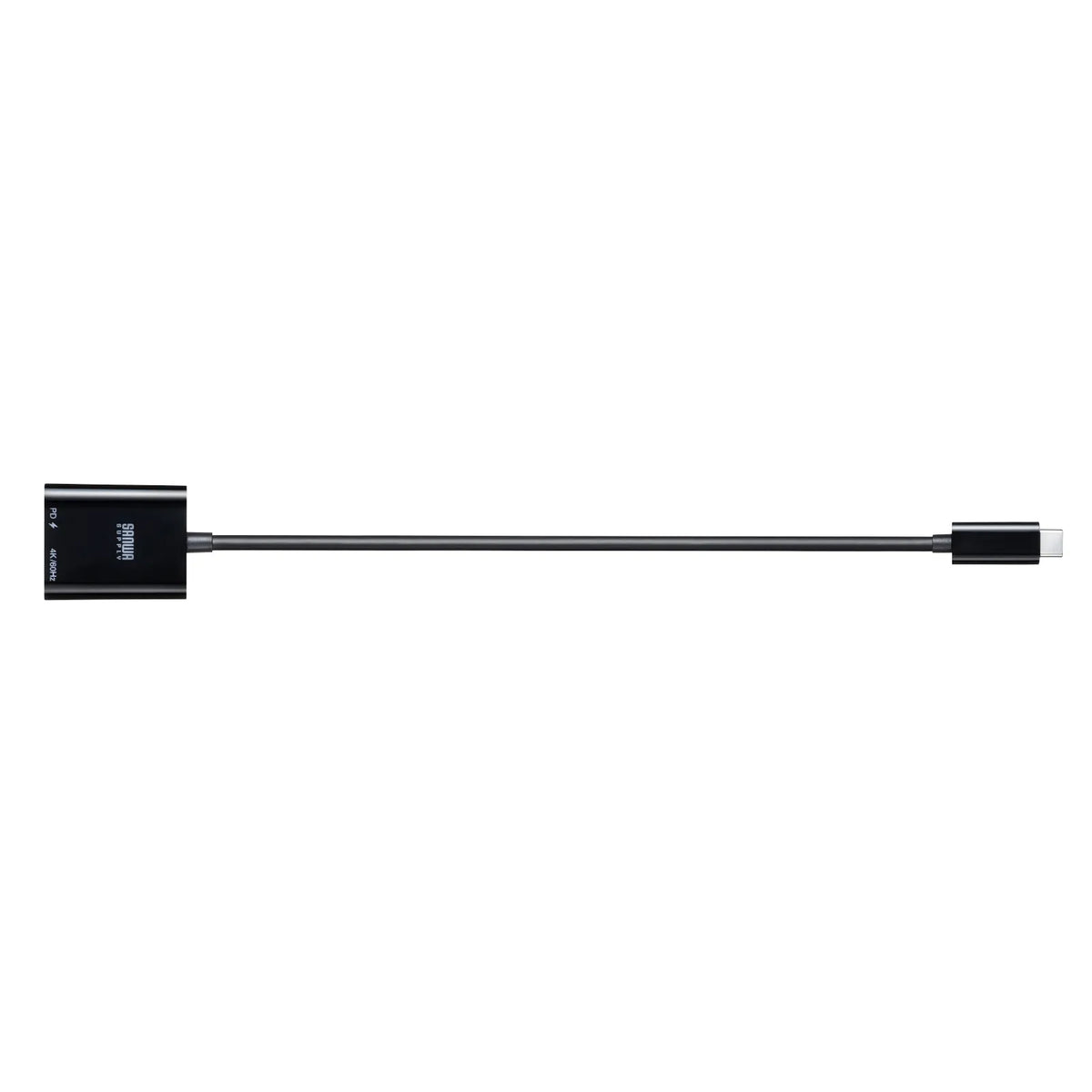

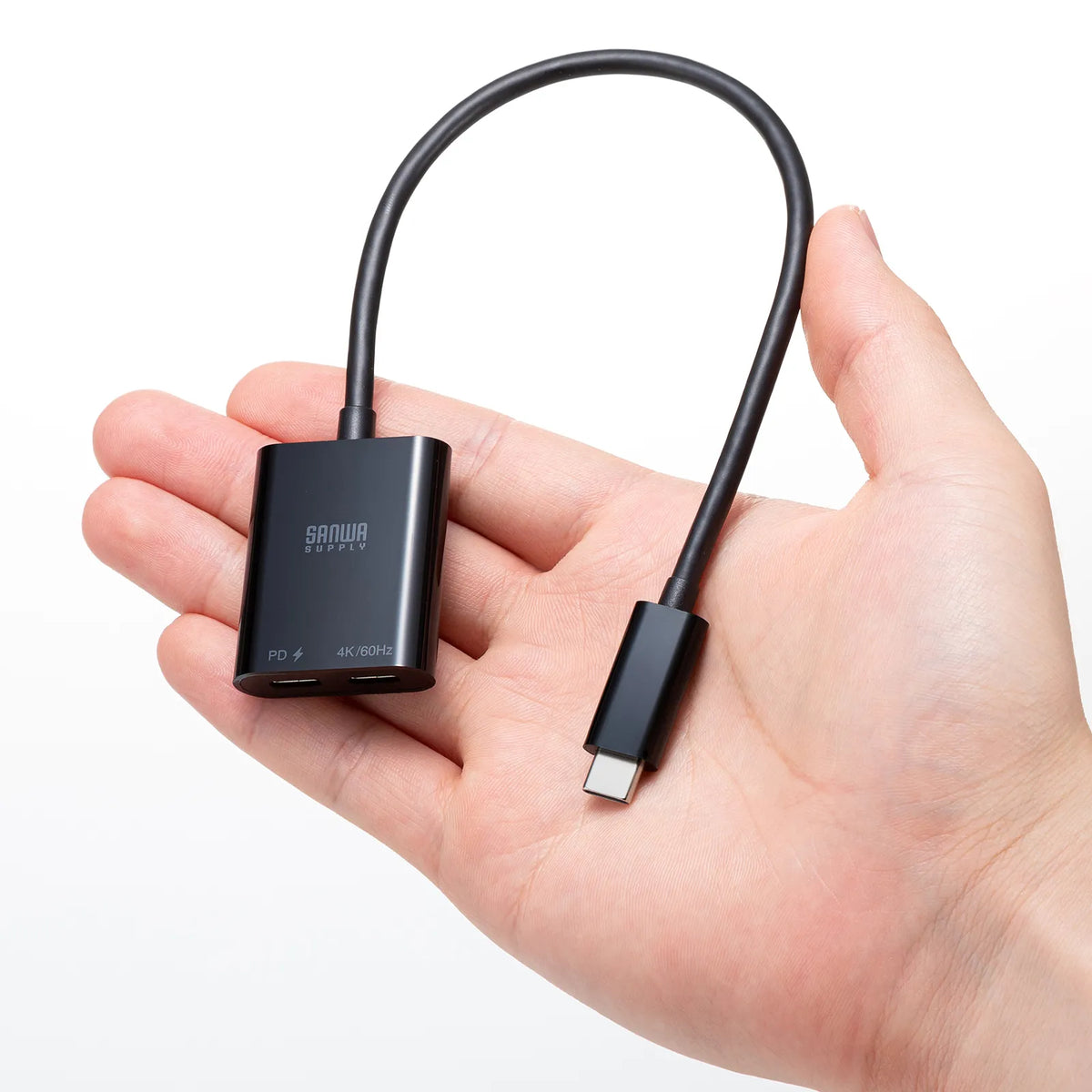

●The cable length is 20cm, making it easy to connect and handle. (AD-ALCCPD02)


＜Please check before purchasing＞
※Can be used with PCs/tablets/smartphones equipped with a USB Type-C port and supporting DisplayPort Alternate Mode.
※When charging USB PD compatible devices, please prepare a separate USB PD adapter.
*The maximum transfer speed of this product is USB 2.0, 480Mbps [theoretical value].
*Although this product supports USB 2.0, 480Mbps, it does not guarantee a transfer speed of USB 2.0, 480Mbps (theoretical value).
*While USB 2.0 devices can be connected to the USB port of this product, the transfer speed will be limited to the USB 2.0 transfer speed.
*Connection and operation with all USB devices are not guaranteed.


【USB】
■Interface standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
■Connector shape (upstream): USB 5Gbps Type-C connector male

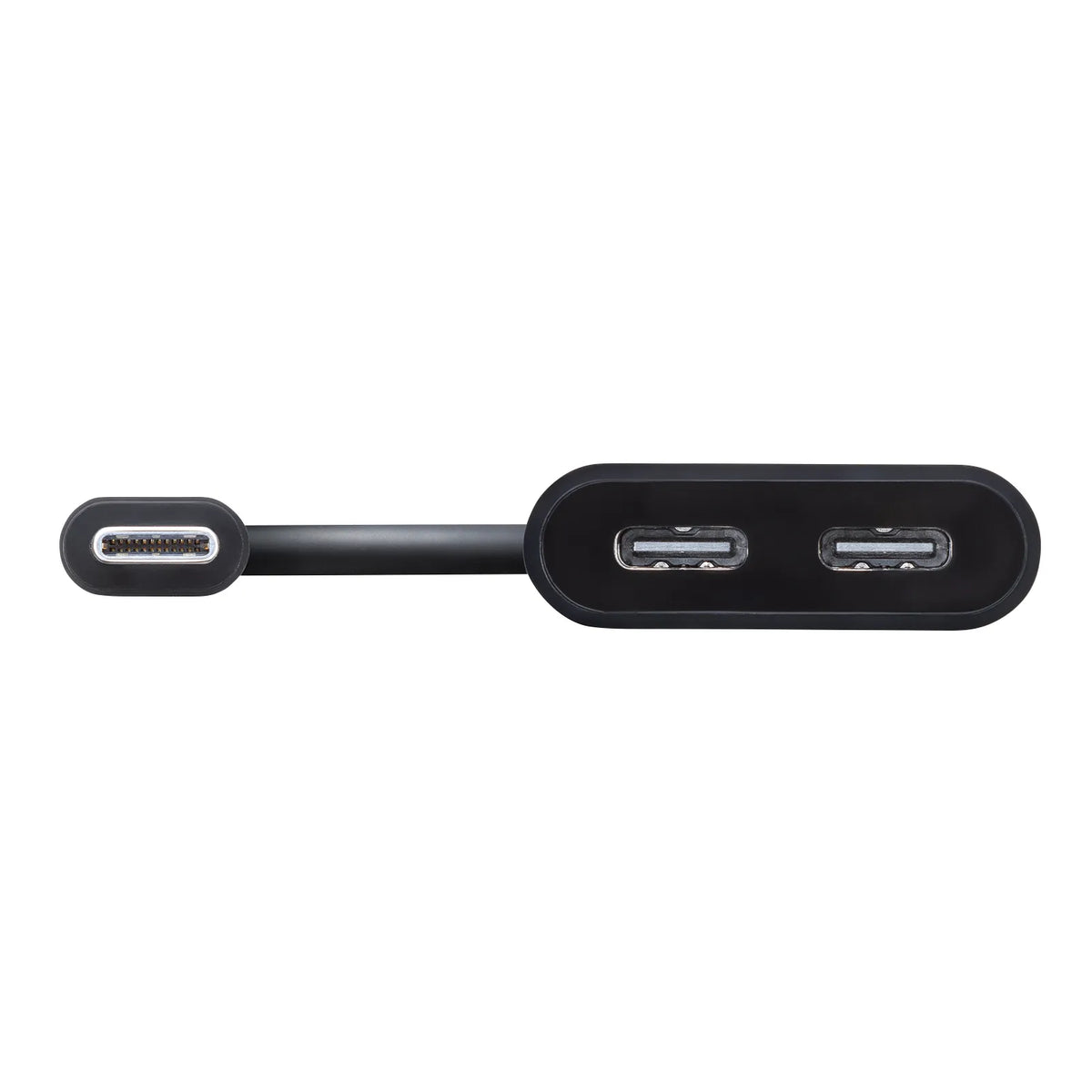

■Connector shape (downstream): USB Type-C connector female x1 (video output + USB2.0 480Mbps compatible)
USB Type-C connector female x1 (PD charging only/PD100W compatible)
■Power supply: Supports both self-power and bus power
*Can also be used as self-powered by using the PD compatible AC adapter included with the PC.
*If an AC adapter of 45W or less is used, the PC may not enter charging mode.
【Common Specifications】
■Adapter Type: DP Alt Mode
【Video Output Port】
■Port Shape: USB Type-C Female
■Maximum Supported Resolution: 4K/60Hz
■Supported Resolution: Maximum Display Resolution: 4K/60Hz
*For 4K/60Hz output, the Type-C port on the computer must support DP1.4.
*The computer, projector or display, and connection cable must all support the same resolution.
■HDR support: Supported
■HDCP: HDCP1.4, HDCP2.2, HDCP2.3
【Video Standard】
■HDMI Standard: HDMI2.0
【PD】
■PD support: Supported
【Power Supply】
■USB PD Maximum Input: 100W
【PC Connection Terminal】
■USB PD Maximum Output: 92W
【Common Specifications】
■Supported OS Windows: 11, 10
■Supported OS mac: macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15
■Supported OS iPadOS: iPadOS 13 to 18
■Supported OS iOS: iOS 17・18
■Supported OS ChromeOS: ChromeOS
■Compatible devices: Compatible PCs: Windows (DOS/V) PCs, Apple Mac series, iPads, Chrome OS PCs, and smartphones equipped with a standard USB Type-C connector and supporting DisplayPort Alt mode

Compatible output devices: PC displays, AR glasses, mobile monitors, etc. equipped with a standard USB Type-C input terminal
*While it also supports the touchback function of touch panel monitors, we do not guarantee the operation of all devices.
■Shielding method: Triple shielding
■Cable length: Approx. 0.2
■Cable diameter: Approx. 4.3
【】
■PC (output) side: USB Type-C
■Display (display) side: USB Type-C
■Resolution (for MD): 4K
【Common specifications】
■Operating temperature: 0 to 45 degrees
■Storage temperature: -10 to 70 degrees
■Operating humidity: 10 to 85%
Non-condensing
