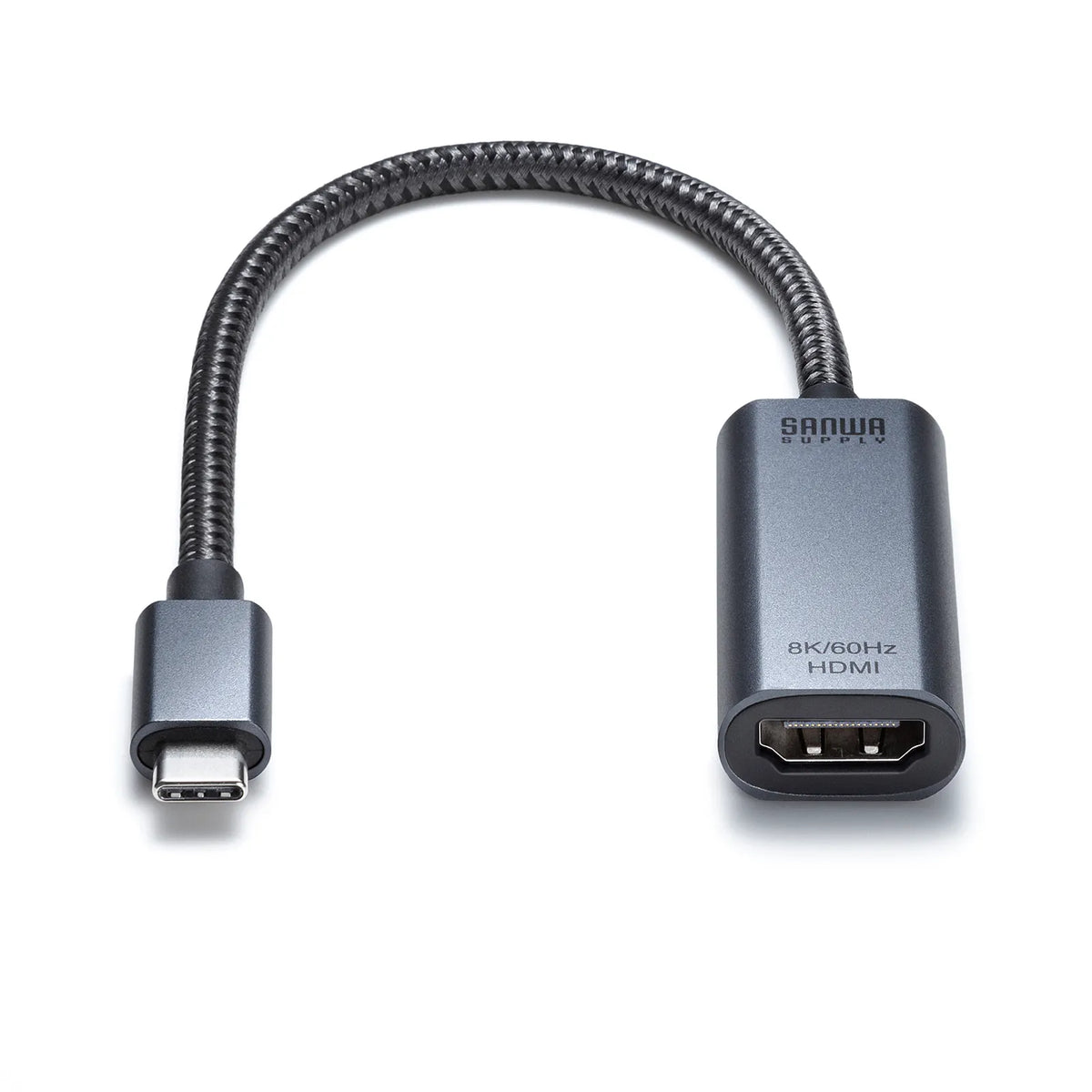

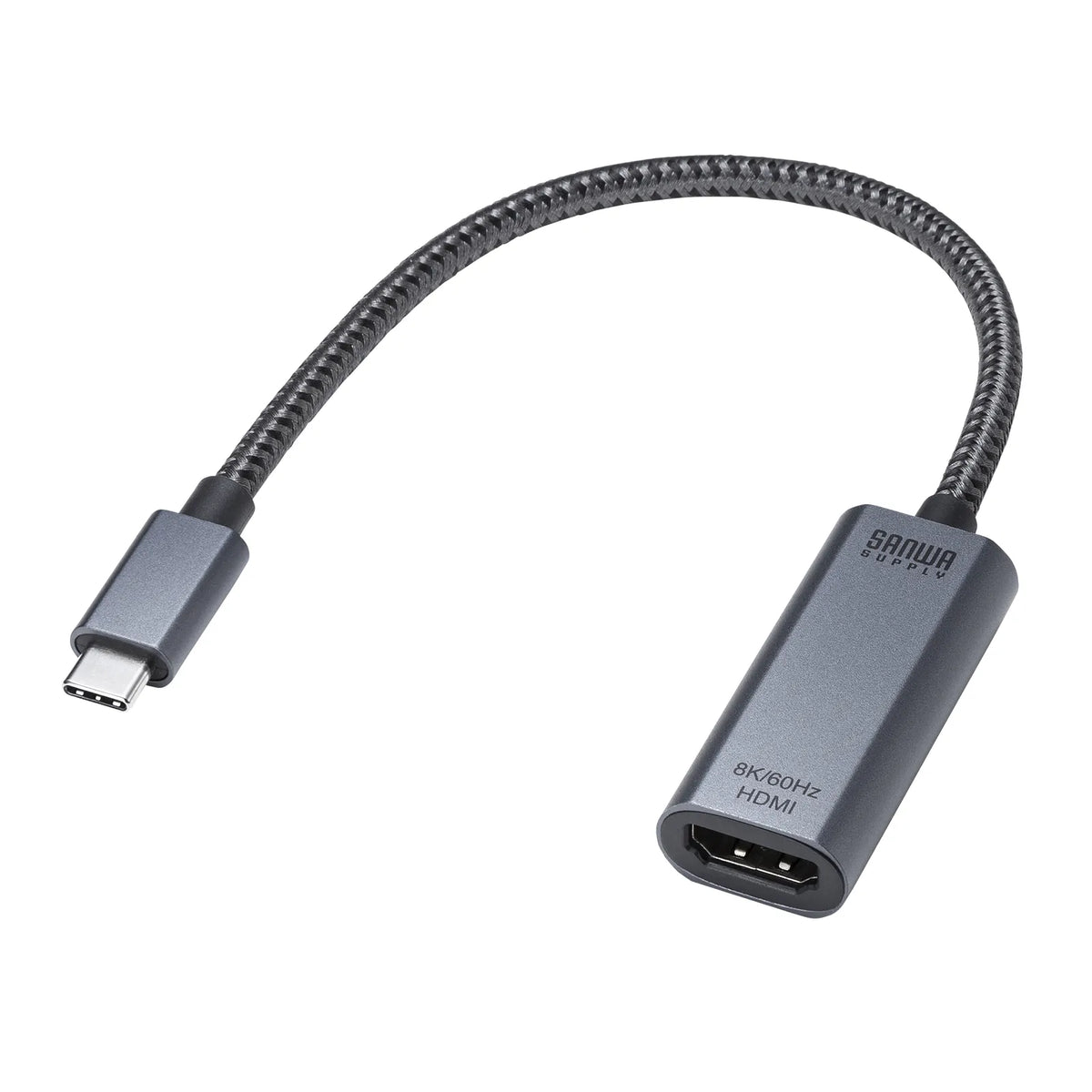

USB Type C to HDMI Conversion Adapter (8K/60Hz/HDR) AD-ALC8KHDR

[A conversion adapter that converts a Type-C port compatible with DisplayPort Altmode to HDMI (8K/60Hz/HDR, 4K/120Hz/HDR) for video output.]

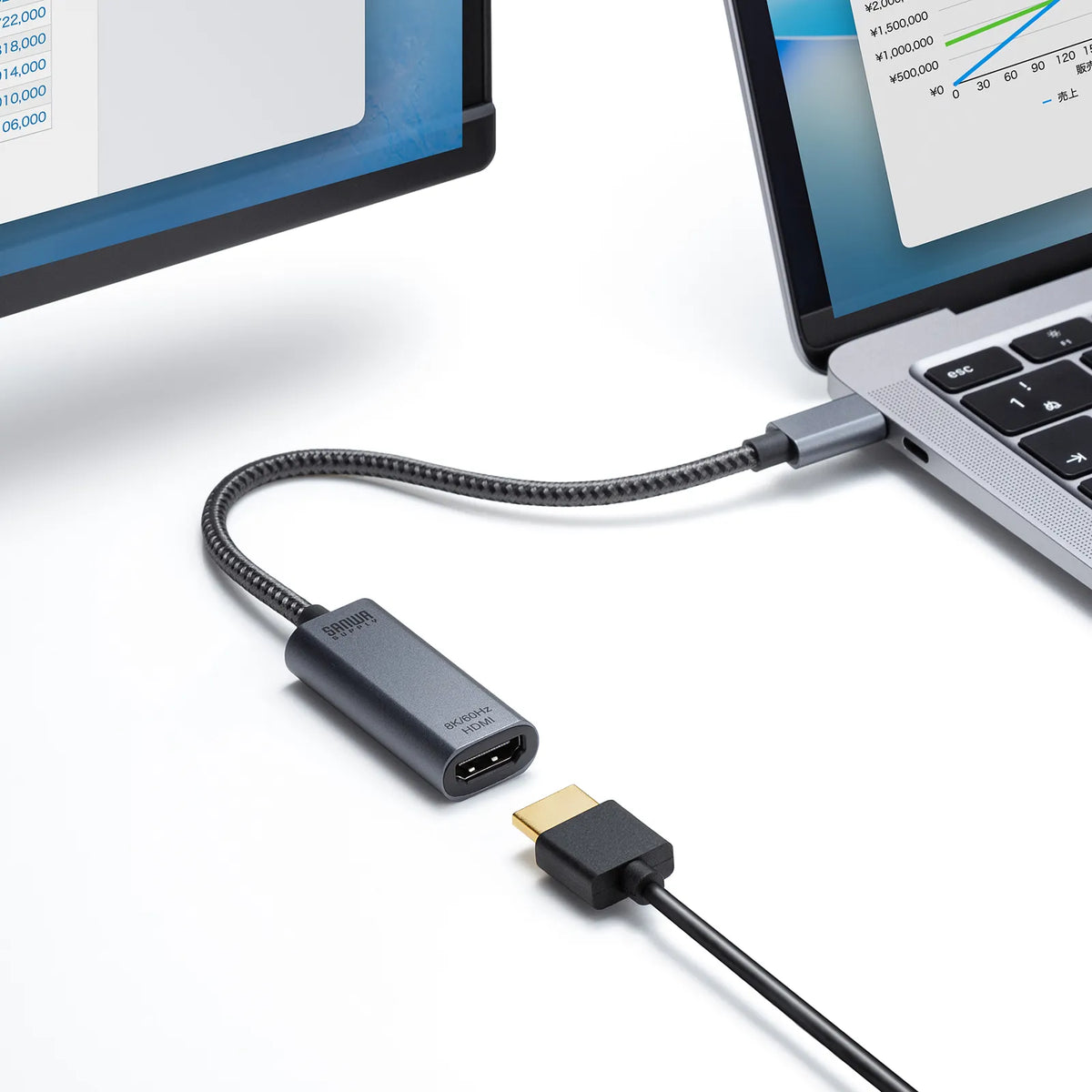

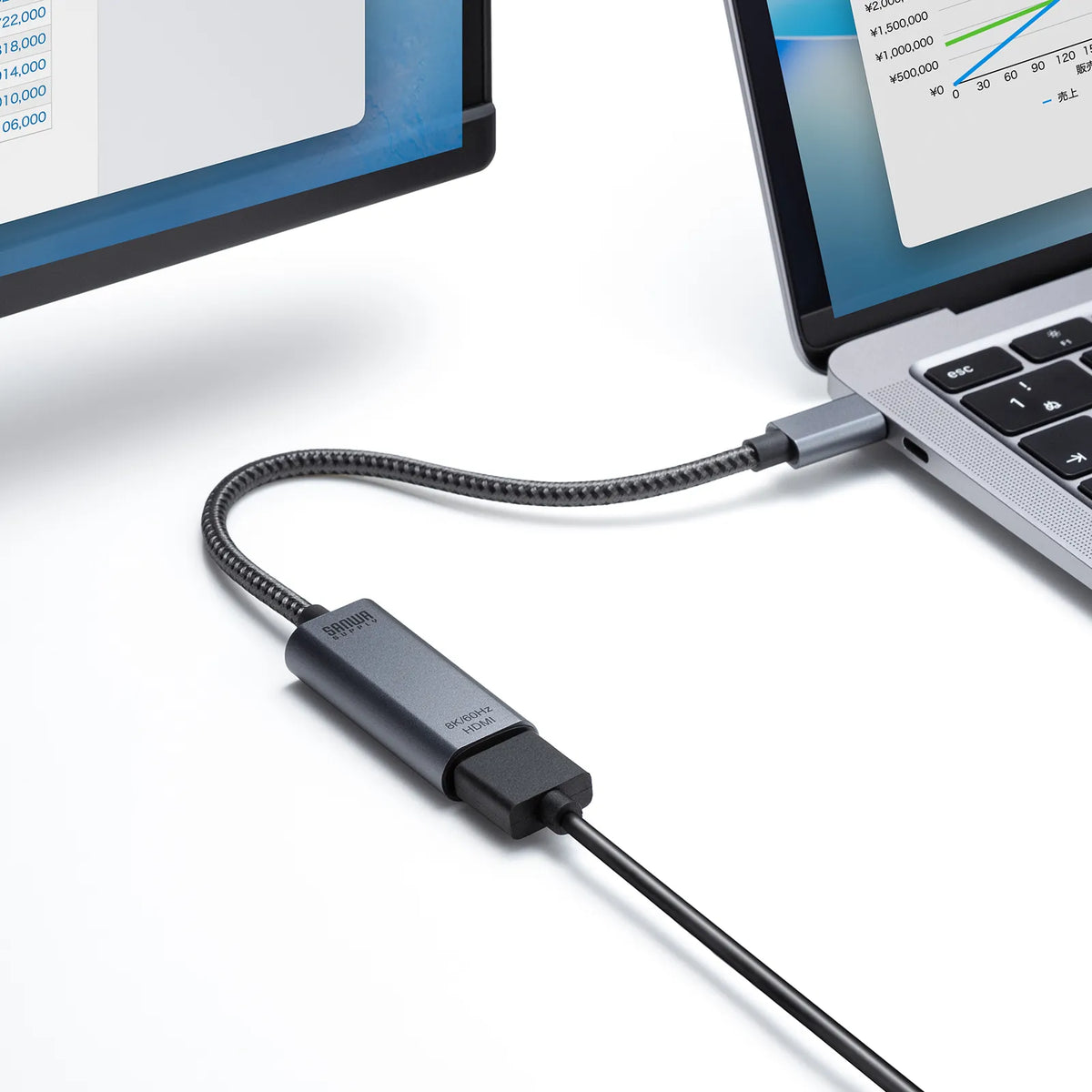

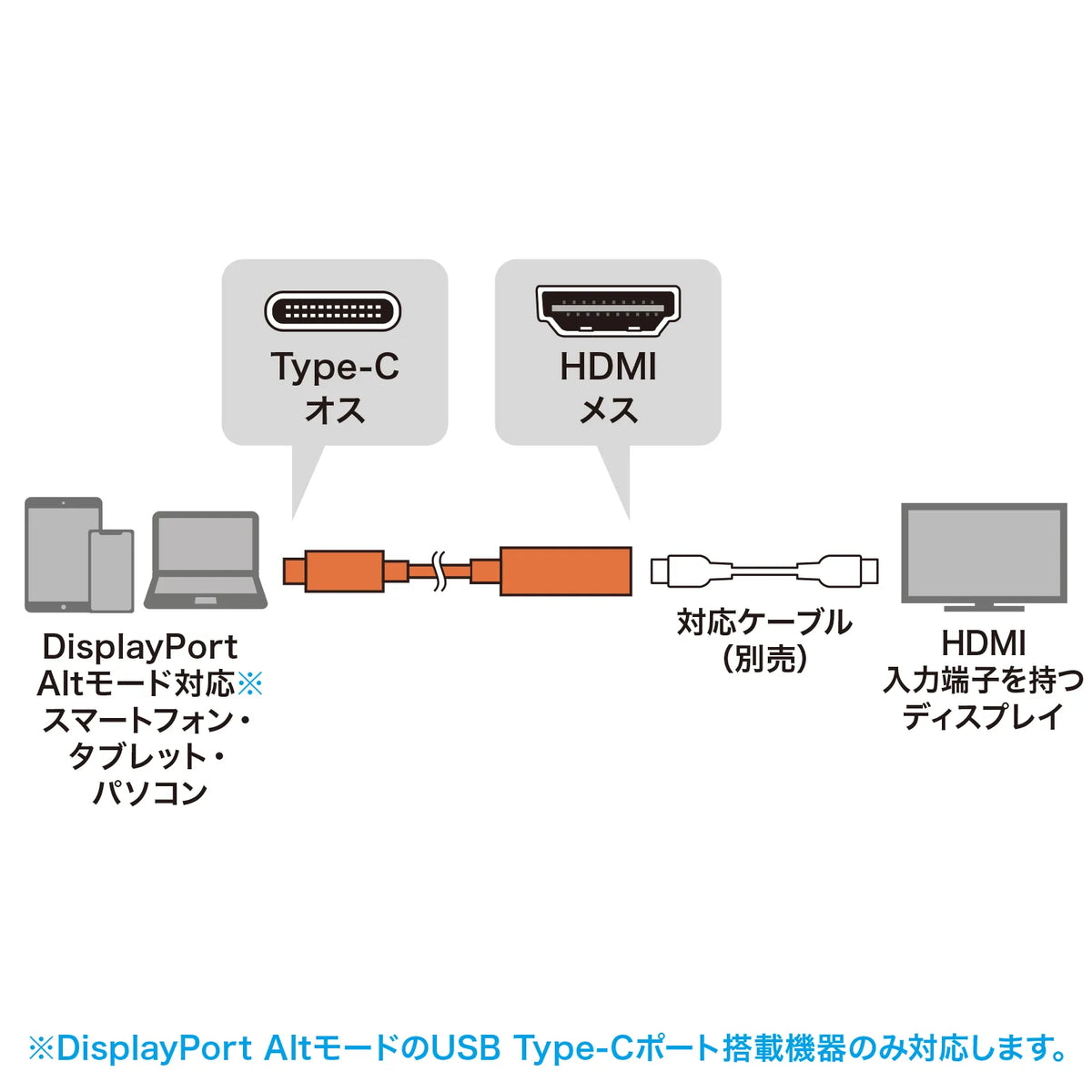

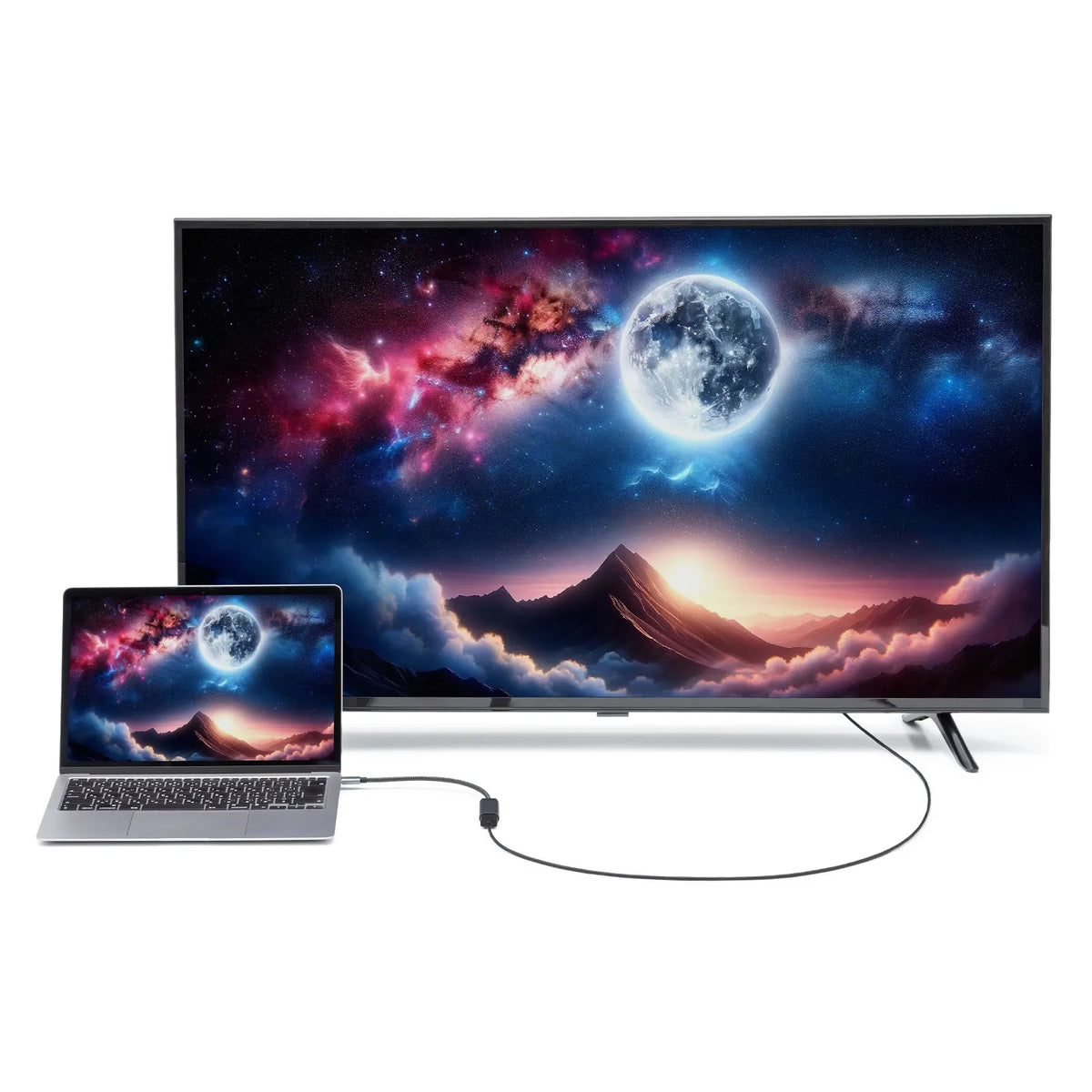

●Allows output of video and audio from a PC or tablet equipped with USB Type-C (only Type-C ports that support video output) to a display or TV with an HDMI input terminal.

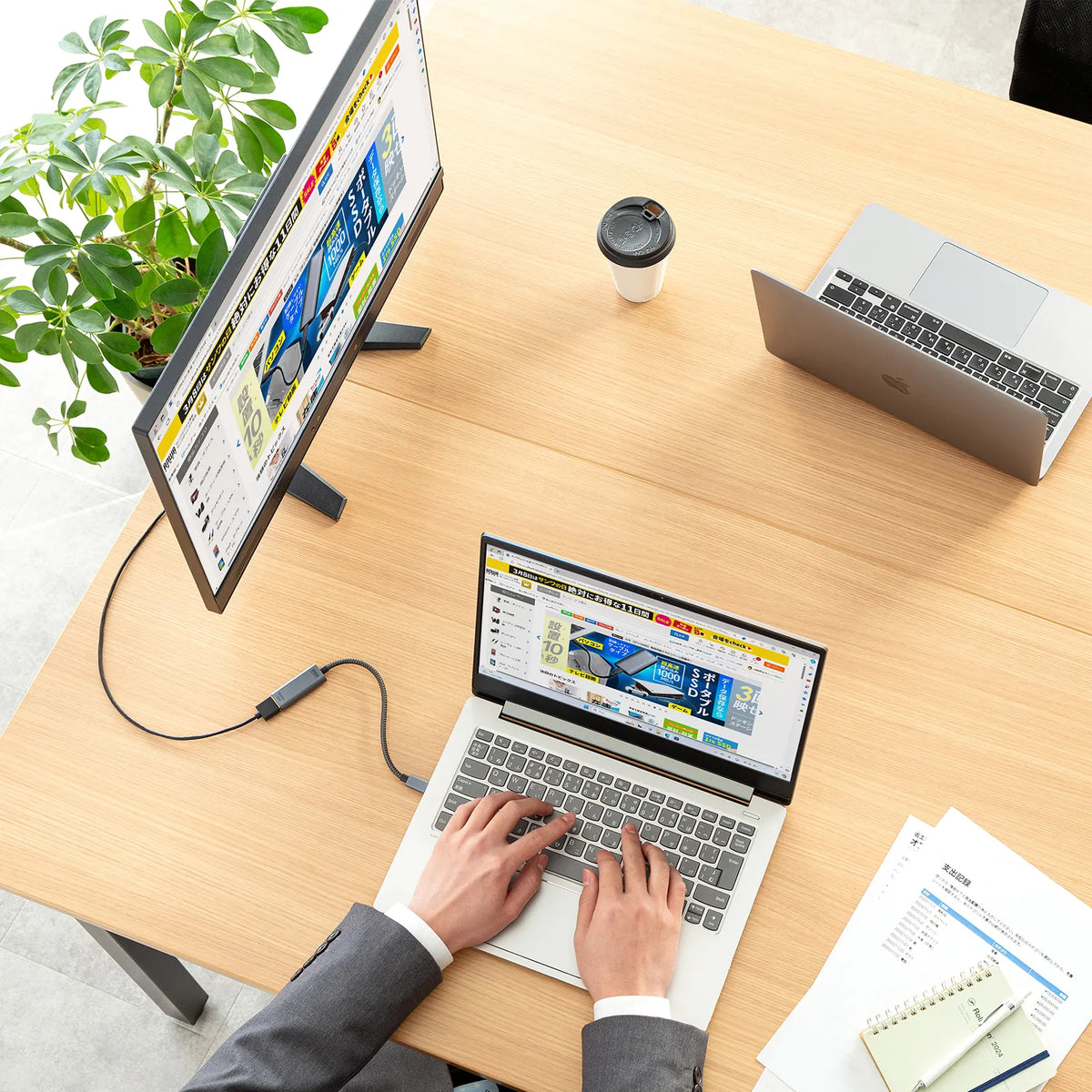

●Supports DisplayPort Alternate Mode for adding displays via USB Type-C connection, allowing for easy multi-display environment (mirror mode/extended mode) without software installation.
●Supports 8K (7680x4320)/60Hz and 4K (4096x2160)/120Hz resolutions, enabling the output of vivid and high-definition HDMI signals.
●Supports high-brightness HDR (High Dynamic Range) video and is compatible with HDCP1.4/HDCP2.2/HDCP2.3.

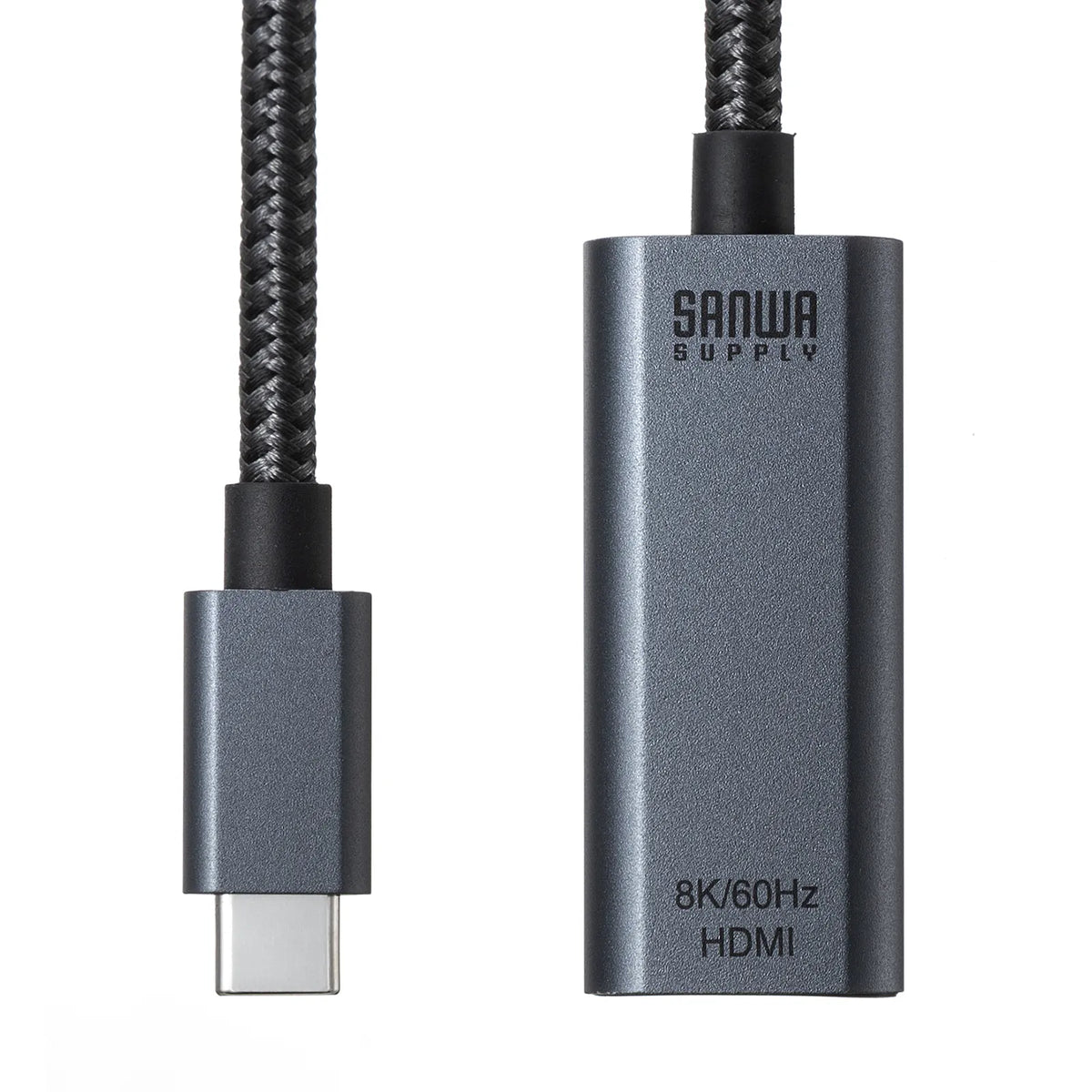

●The adapter exterior uses an aluminum alloy shell structure with excellent heat dissipation.

*To output at 8K resolution, all of the following must be supported:
・The USB Type-C port must support DisplayPort 1.4 or higher
・It must support Display Stream Compression (DSC)
・The connected device (PC/GPU/OS/driver) must support 8K output
*Please use an 8K-compatible ultra-high-speed HDMI cable to connect this product to a TV or display.
If you use an HDMI cable that does not support 8K output, the image may become blurry or noisy.
*Video output and 8K display are not guaranteed for all USB Type-C ports.


【USB】
■Interface standard: USB 5Gbps (USB3.2 Gen1/3.1 Gen1/3.0) compliant
■Connector shape (PC connection side): USB Type-C
■Power supply: Bus power
【Common specifications】
■Adapter type: DPalt mode
【Video output port】

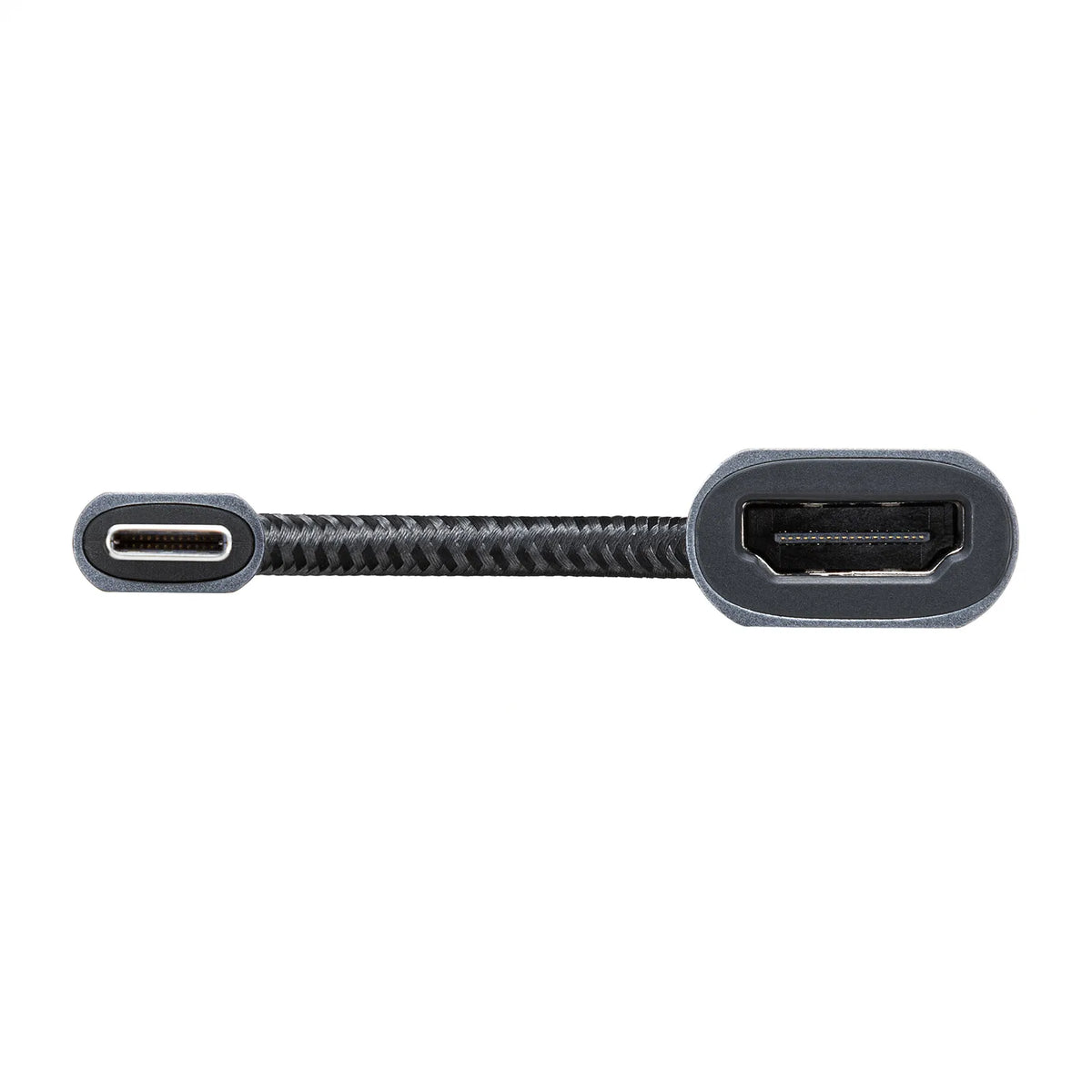

■Port shape: HDMI Type A (19pin) female x1
■Maximum supported resolution: 8K/60Hz
■Supported resolution: Maximum display resolution: 8K/60Hz
*Basically, it supports resolutions of 8K/60Hz or lower, not just 8K/60Hz and 4K/120Hz.
*Display at all resolutions is not guaranteed.
*The computer, projector or display, and connection cable must all support the same resolution.
■HDCP: HDCP1.4, HDCP2.2, HDCP2.3
【Video Standard】
■HDMI Standard: HDMI2.1
【Common Specifications】
■Current Consumption: Approx. 300mA
■Operating Temperature: 0 to 40 degrees Celsius
■Storage Temperature: -40 to 60 degrees Celsius
■Operating Humidity: 10 to 85%
Non-condensing
■Storage Humidity: 0 to 85%
Non-condensing

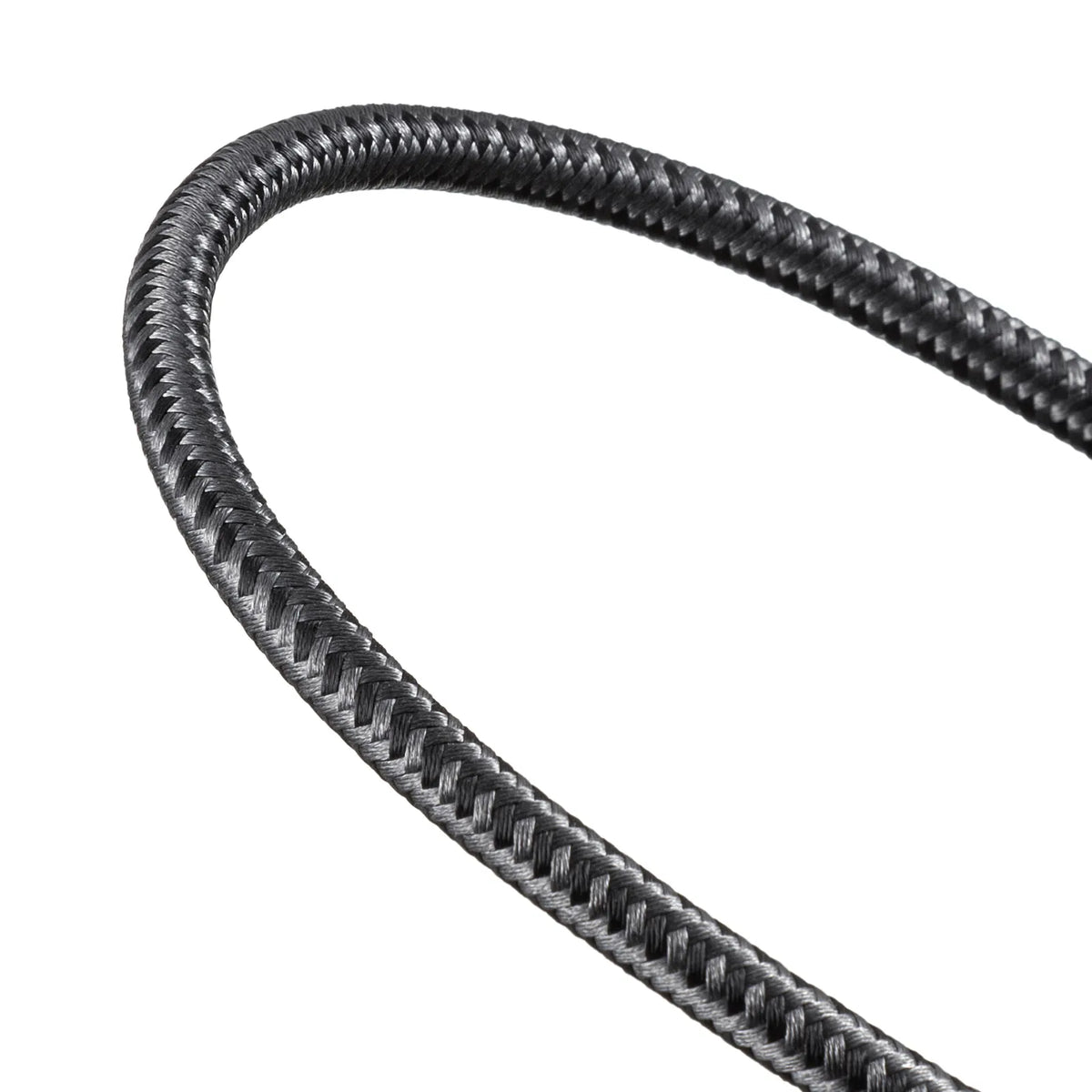

■Shielding Method: Triple shielding

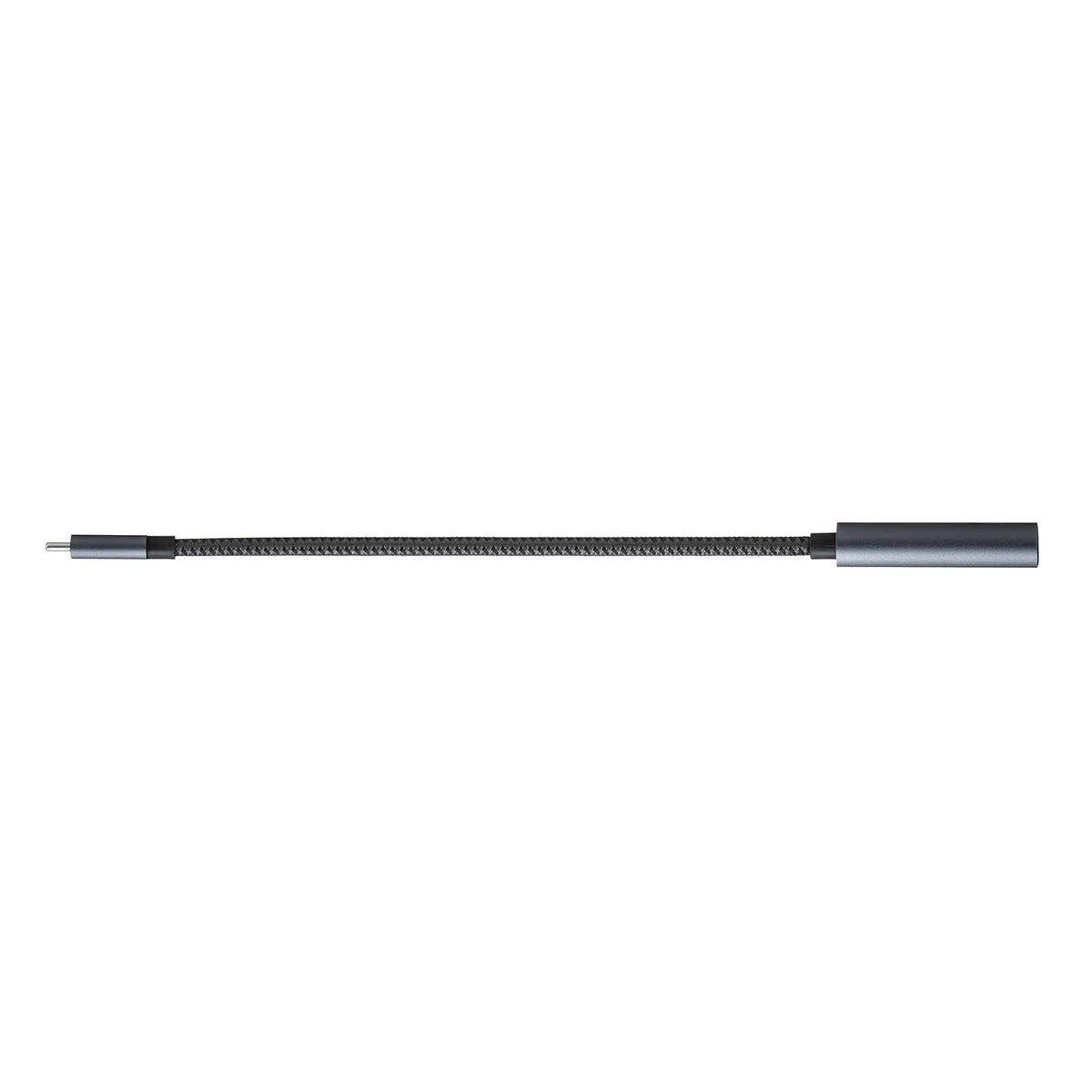

■Cable Length: Approx. 0.2
■Cable Diameter: Approx. 4.6
【】
■PC (Output) Side: USB Type-C
■Display (Display) Side: HDMI
■Resolution (for MD): 8K
【Common Specifications】
■Supported OS Windows: 11, 10
■Supported OS mac: macOS (Tahoe) 26, macOS (Sequoia) 15, macOS (Sonoma) 14, macOS (Ventura) 13, macOS (Monterey) 12, macOS (BigSur) 11, macOS 10.12 to 10.15
■Supported OS iPadOS: iPadOS 13 to 26
■Supported OS ChromeOS: ChromeOS
■Supported Devices: Supported PCs:
Windows (DOS/V) PCs, Apple Mac series, iPads, Chrome OS PCs equipped with a standard USB Type-C connector and supporting DisplayPort Alt mode

*To output at 8K resolution, all of the following must be supported.
・The USB Type-C port must support DisplayPort 1.4 or higher.
・It must support Display Stream Compression (DSC).
・The connected device (PC/GPU/OS/driver) must support 8K output.
*Please use an 8K-compatible ultra-high-speed HDMI cable when connecting this product to a TV or display.
If you use an HDMI cable that does not support 8K output, the image may become blurry or noisy.
*Video output and 8K display are not guaranteed for all USB Type-C ports.
Compatible output devices:
TVs and PC displays equipped with a standard HDMI input terminal, etc.
【Video output port】
■HDR compatible: Supported
