JEFCOM

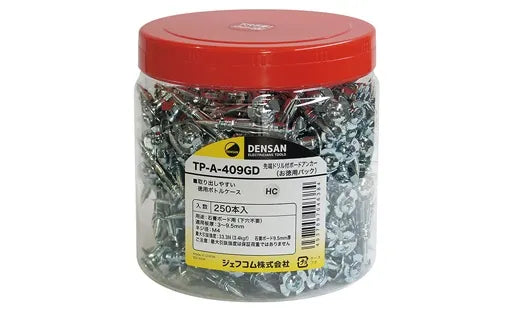

Board anchor with drill bit A-409GDH
Board anchor with drill bit A-409GDH
GTIN(JAN):4937897040146
SKU:A-409GDH
Regular price
¥1,980 JPY
Regular price
Sale price
¥1,980 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Product Features]
For mounting fixtures to gypsum board walls (hollow walls)! No drilling (pilot holes) required!
●No drilling (pilot holes) required
●Can be used with a screwdriver for everything from drilling holes to anchor fixing

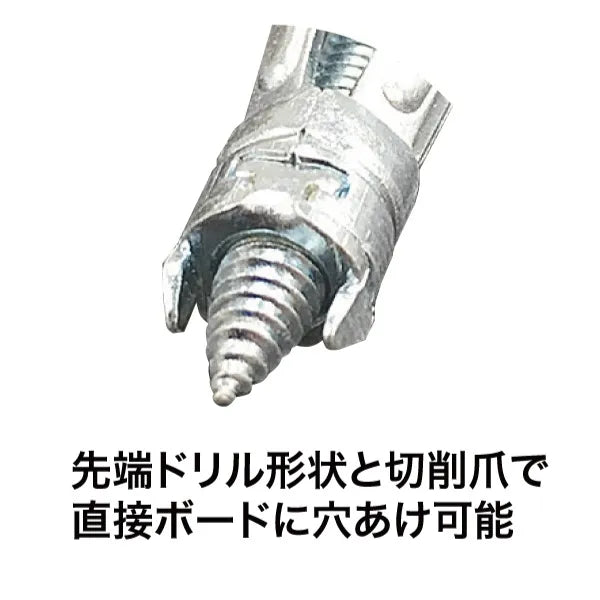

●The drill tip shape and cutting claws allow for direct drilling into the board
●Applications
・Mounting of indoor air conditioner units, communication equipment, distribution boards, switchboards, shelf brackets, etc.
■ Specifications
・Applicable board thickness: 3~9.5mm
・Screw diameter: M4
・Drill diameter (pilot hole): φ9.0mm
・Material: 9.5mm thick gypsum board
・Maximum pull-out strength (*): 33.3N (3.4kgf)
・Type: Boxed
・Quantity: 40
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Individual box and seal
Individual packaging size and weight: W107×D60×H50mm・360g
Inner packaging: Inner box
Inner packaging size and weight: W260×D125×H110mm・4.05kg・1 box
・Country of origin: China
【Notes】
*Please note that we will be changing the specifications sequentially starting with shipments from January 2026.
Please note that we cannot accept requests for specific specifications, including those from our existing stock.
*Changes: The head shape will be changed from "truss head" to "pan head".
